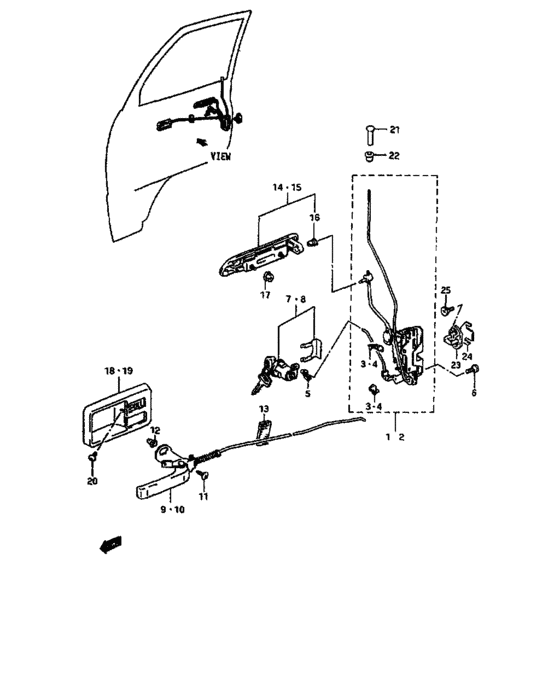

Front door lock (FRONT DOOR LOCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-70D00-000 LATCH ASSY,FR DR,R |
82201-70D00-000 |
US $93.84 |
||
|
2
|
2
82202-70D00-000 LATCH ASSY,FR DR,L |
82202-70D00-000 |
US $93.84 |
||
|
3
|
3
82225-70D00-000 HOLDER,ROD,R |
82225-70D00-000 |
US $2.47 |
||
|
4
|
4
82265-70D00-000 HOLDER,ROD,L |
82265-70D00-000 |
US $2.47 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
09137-06024-000 SCREW(6X18) |
09137-06024-000 |
US $1.28 |
||
|
7
|
7
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
US $36.80 |
||
|
8
|
8
77400-70832-000 CYLINDER,FR DR LATCH LOCK,L |
77400-70832-000 |
US $36.80 |
||
|
9
|
9
83110-85000-5RT HANDLE,FR DOOR INSIDE,RPhilippines, Saudi Arabia, Vietnam |
83110-85000-5RT |
US $24 |
||
|
9
|
9
83110-85000-5PK HANDLE,FR DOOR INSIDE,REgypt |
83110-85000-5PK |
US $21.60 |
||
|
10
|
10
83130-85000-5RT HANDLE,FR DOOR INSIDE,LPhilippines, Saudi Arabia, Vietnam |
83130-85000-5RT |
US $24 |
||
|
10
|
10
83130-85000-5PK HANDLE,FR DOOR INSIDE,LEgypt |
83130-85000-5PK |
US $21.60 |
||
|
11
|
11
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
12
|
12
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
13
|
13
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
14
|
14
82810-85000-5PK HANDLE,FRONT DOOR OUT,R |
82810-85000-5PK |
US $32.80 |
||
|
15
|
15
82820-85000-5PK HANDLE,FRONT DOOR OUT,L |
82820-85000-5PK |
US $32.80 |
||
|
16
|
16
82816-82001-000 SNAP,ADJUSTING JOINT |
82816-82001-000 |
US $1.60 |
||
|
17
|
17
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
18
|
18
82981-85001-5RT BEZEL,DR INSIDE HDL,RPhilippines, Saudi Arabia, Vietnam |
82981-85001-5RT |
US $6.88 |
||
|
18
|
18
82981-85001-5ES BEZEL,DR INSIDE HDL,REgypt |
82981-85001-5ES |
US $9.12 |
||
|
19
|
19
82982-85001-5RT BEZEL,DR INSIDE HDL,LPhilippines, Saudi Arabia, Vietnam |
82982-85001-5RT |
US $6.88 |
||
|
19
|
19
82982-85001-5ES BEZEL,DR INSIDE HDL,LEgypt |
82982-85001-5ES |
US $9.12 |
||
|
20
|
20
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
21
|
21
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
22
|
22
82991-84000-000 CAP,DR INSIDE LOCK KNOB |
82991-84000-000 |
US $1.60 |
||
|
23
|
23
82610-70D01-000
ストライカ,フロントドアラッチ
|
82610-70D01-000 |
— | ||
| replacement | |||||
|
23
|
23
82610-70D02-000 STRIKER,FR DOOR LATCH |
82610-70D02-000 |
US $20 |
||
|
24
|
24
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
25
|
25
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
25
|
25
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
25
|
25
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
