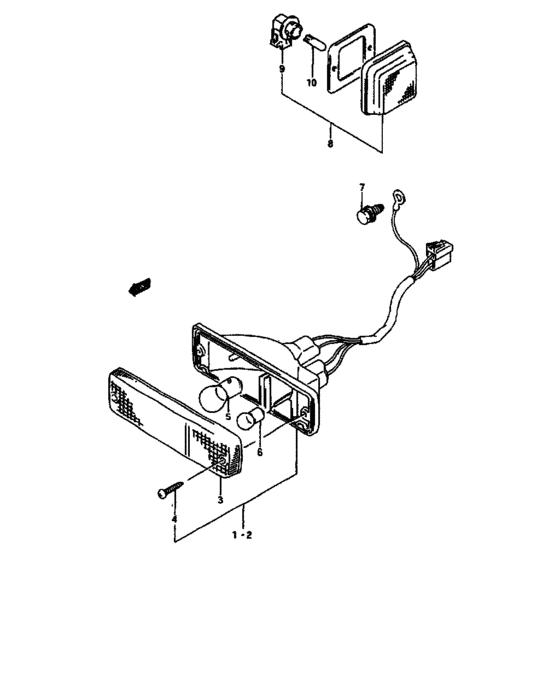

Front lamp (FRONT LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-81020-000 LAMP ASSY,FR COMB,R |
35601-81020-000 |
US $68 |
||
|
2
|
2
35602-81020-000 LAMP ASSY,FR COMB,L |
35602-81020-000 |
US $61.60 |
||
|
3
|
3
35612-81010-000 LENS |
35612-81010-000 |
US $6.08 |
||
|
4
|
4
03512-04253-000
Screw
|
03512-04253-000 |
— | ||
| replacement | |||||
|
4
|
4
03511-0425A-000 SCREW |
03511-0425A-000 |
US $9.90 |
||
|
5
|
5
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
6
|
6
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
8
|
8
36410-70D10-000 LAMP ASSY,SIDE TURN SIG |
36410-70D10-000 |
US $19.87 |
||
|
9
|
9
36258-70C30-000 SOCKET,BULB |
36258-70C30-000 |
US $6.40 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.77 |
||
