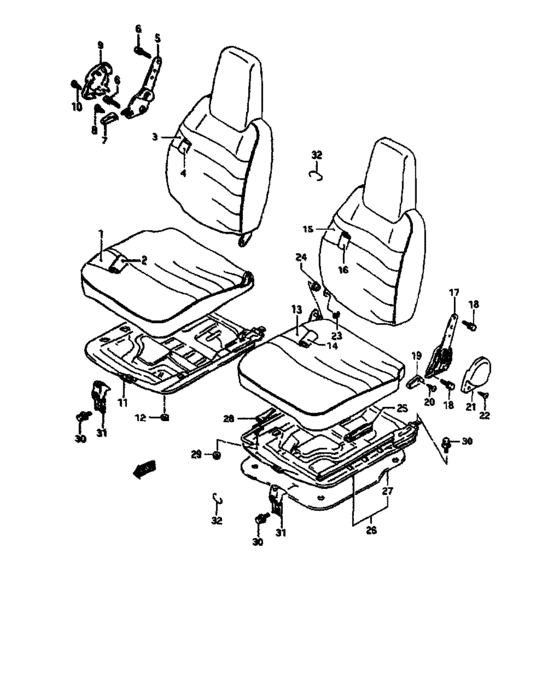

Front seat (V:LHD:Chile, General, Egypt, Vietnam) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-85541-000 CUSHION SUB ASSY,FR SEAT,R |
85105-85541-000 |
US $259.44 |
||
|
2
|
2
85180-85531-B5T TRIM,FR SEAT CUSHION,R |
85180-85531-B5T |
US $142.42 |
||
|
3
|
3
85305-85721-000 BACK S/ASSY,FR SEAT,R |
85305-85721-000 |
US $351.44 |
||
|
4
|
4
85380-85721-B5T TRIM,FR SEAT BACK,R |
85380-85721-B5T |
US $160.45 |
||
|
5
|
5
85210-85501-000 RECLINING ASSY,FR SEAT,R |
85210-85501-000 |
US $131.38 |
||
|
6
|
6
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
7
|
7
85211-84000-5RT KNOB,RECLINING |
85211-84000-5RT |
US $3.57 |
||
|
8
|
8
03211-04083-000
Screw
|
03211-04083-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0408A-000 SCREW |
03211-0408A-000 |
US $9.90 |
||
|
9
|
9
85221-84000-5RT COVER,RECLINING ASSY,R |
85221-84000-5RT |
US $7.29 |
||
|
10
|
10
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
85410-85731-000
Panel,fr seat riser,r
|
85410-85731-000 |
— | ||
| replacement | |||||
|
11
|
11
85410-85711-000 PANEL,FR SEAT RISER,R |
85410-85711-000 |
US $189.52 |
||
|
12
|
12
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
13
|
13
85106-85531-000 CUSHION SUB ASSY,FR SEAT,L |
85106-85531-000 |
US $259.44 |
||
|
14
|
14
85680-85531-B5T TRIM,FR SEAT CUSHION,L |
85680-85531-B5T |
US $142.42 |
||
|
15
|
15
85306-85721-000 BACK S/ASSY,FR SEAT,L |
85306-85721-000 |
US $351.44 |
||
|
16
|
16
85880-85721-B5T TRIM,FR SEAT BACK,L |
85880-85721-B5T |
US $160.45 |
||
|
17
|
17
85710-85501-000 RECLINING ASSY,FR SEAT,L |
85710-85501-000 |
US $143.20 |
||
|
18
|
18
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
18
|
18
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
19
|
19
85211-84000-5RT KNOB,RECLINING |
85211-84000-5RT |
US $3.57 |
||
|
20
|
20
03211-04083-000
Screw
|
03211-04083-000 |
— | ||
| replacement | |||||
|
20
|
20
03211-0408A-000 SCREW |
03211-0408A-000 |
US $9.90 |
||
|
21
|
21
85721-84000-5RT COVER,RECLINING ASSY,L |
85721-84000-5RT |
US $7.29 |
||
|
22
|
22
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
23
|
23
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
23
|
23
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.86 |
||
|
23
|
23
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.91 |
||
|
24
|
24
09306-08003-000
Bush
|
09306-08003-000 |
— | ||
| replacement | |||||
|
24
|
24
09306-08016-000 BUSH |
09306-08016-000 |
from US $3.82 |
||
|
25
|
25
85292-85000-000 SPACER,FRONT SEAT SLIDE |
85292-85000-000 |
US $2.56 |
||
|
26
|
26
85910-85721-000 PANEL,FR SEAT RISER,L |
85910-85721-000 |
US $189.52 |
||
|
27
|
27
85927-85001-000 INSULATOR,FR SEAT RISER,L |
85927-85001-000 |
US $36.80 |
||
|
28
|
28
86810-85012-000 RAIL ASSY,FR SEAT,L |
86810-85012-000 |
US $66.61 |
||
|
29
|
29
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
30
|
30
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
30
|
30
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
31
|
31
86650-85702-000 LOCK,FR SEAT |
86650-85702-000 |
US $14.90 |
||
|
32
|
32
09387-19001-000 RING |
09387-19001-000 |
US $11.40 |
||
