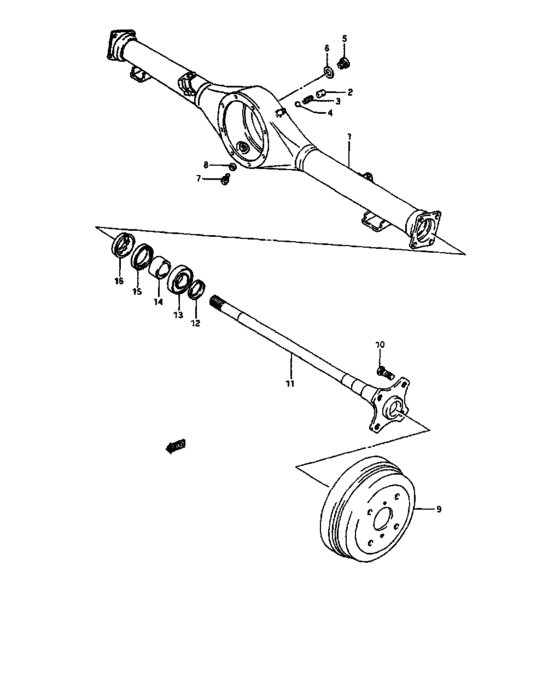

Rear axle (REAR AXLE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-85204-000 HOUSING,RR AXLE |
46510-85204-000 |
US $563.20 |
||
|
2
|
2
46541-52002-000 CAP,BREATHER |
46541-52002-000 |
US $1.60 |
||
|
3
|
3
09440-12004-000 SPRING |
09440-12004-000 |
from US $0.83 |
||
|
4
|
4
46542-52000-000
VALVE,BREATHER
|
46542-52000-000 |
— | ||
| replacement | |||||
|
4
|
4
46542-52001-000 VALVE,RR AXLE HSG BREATHER |
46542-52001-000 |
US $1.60 |
||
|
5
|
5
09248-20003-000 PLUG |
09248-20003-000 |
from US $2.03 |
||
|
6
|
6
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $1.78 |
||
|
7
|
7
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
US $0.96 |
||
|
8
|
8
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
9
|
9
43511-85200-000 DRUM,BRAKE RR |
43511-85200-000 |
US $101.57 |
||
|
10
|
10
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $0.99 |
||
|
11
|
11
44210-85200-000
Shaft, rear axle
|
44210-85200-000 |
— | ||
| replacement | |||||
|
11
|
11
44210-852V0-000 SHAFT ASSY,REAR AXLE,R |
44210-852V0-000 |
US $168.91 |
||
|
12
|
12
43429-77201-000 SPACER,REAR WHEEL BEARING |
43429-77201-000 |
from US $6.93 |
||
|
13
|
13
09262-35031-000 BEARING(35X72X17) |
09262-35031-000 |
from US $18.52 |
||
|
14
|
14
43485-73000-000 RING,RR WHEEL BRG RETAINER |
43485-73000-000 |
from US $9.12 |
||
|
15
|
15
09283-48007-000 SEAL,OIL(48X62X9) |
09283-48007-000 |
from US $3.22 |
||
|
16
|
16
43588-73000-000 PROTECTOR,OIL SEAL |
43588-73000-000 |
from US $1.58 |
||
