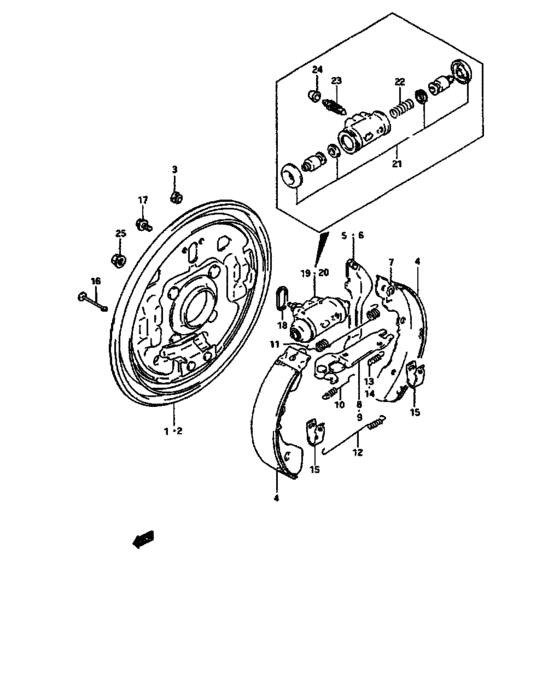

Rear wheel brake (REAR WHEEL BRAKE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-85701-000
Plate, backing rh
|
53110-85701-000 |
— | ||
| replacement | |||||
|
1
|
1
53110-85770-000 PLATE,BACKING,R |
53110-85770-000 |
US $110.77 |
||
|
1
|
1
53110-85770-000 PLATE,BACKING,R |
53110-85770-000 |
US $110.77 |
||
|
2
|
2
53120-85701-000
Plate, backing lh
|
53120-85701-000 |
— | ||
| replacement | |||||
|
2
|
2
53120-85770-000 PLATE,BACKING,L |
53120-85770-000 |
US $110.77 |
||
|
2
|
2
53120-85770-000 PLATE,BACKING,L |
53120-85770-000 |
US $110.77 |
||
|
3
|
3
53141-84010-000 PLUG,BACKING PLATE |
53141-84010-000 |
from US $1.52 |
||
|
4
|
4
53200-50800-000
Shoe set, brake
|
53200-50800-000 |
— | ||
| replacement | |||||
|
4
|
4
53200-50802-000 SHOE SET,RR BRAKE |
53200-50802-000 |
US $91.26 |
||
|
5
|
5
53750-50F01-000 LEVER,PARKING SHOE,R |
53750-50F01-000 |
US $12 |
||
|
6
|
6
53760-50F01-000 LEVER,PARKING SHOE,L |
53760-50F01-000 |
US $12 |
||
|
7
|
7
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper |
53753-82030-000 |
from US $0.99 |
||
|
8
|
8
53810-60A70-000 STRUT ASSY,BRAKE,R |
53810-60A70-000 |
US $35.20 |
||
|
9
|
9
53820-60A70-000 STRUT ASSY,BRAKE,L |
53820-60A70-000 |
US $35.20 |
||
|
10
|
10
53714-85010-000 SPRING,QUADRANT |
53714-85010-000 |
from US $1.94 |
||
|
11
|
11
53331-60A70-000 SPRING,SHOE RETURN UPPER A |
53331-60A70-000 |
from US $2.12 |
||
|
12
|
12
53232-85120-000 SPRING,SHOE RETURN LOWER |
53232-85120-000 |
from US $2.28 |
||
|
13
|
13
54524-19B00-000 Spring,antirattSpring, antirattle rh |
54524-19B00-000 |
US $4.36 |
||
| replacement | |||||
|
13
|
13
54524-56B00-000 SPRING,ANTIRATTLE,L |
54524-56B00-000 |
from US $1.98 |
||
|
14
|
14
54824-19B00-000 Spring,antirattSpring, antirattle lh |
54824-19B00-000 |
US $4.36 |
||
| replacement | |||||
|
14
|
14
54824-56B00-000 SPRING,ANTIRATTLE,R |
54824-56B00-000 |
from US $1.98 |
||
|
15
|
15
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down |
53243-85010-000 |
from US $1.33 |
||
|
16
|
16
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down |
53241-82030-000 |
from US $1.46 |
||
|
17
|
17
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
17
|
17
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
18
|
18
53417-82030-000 GASKET,RR WHEEL CYLINDERGasket, rear wheel cylinder |
53417-82030-000 |
from US $4.71 |
||
|
19
|
19
53401-50F00-000 CYLINDER ASSY,REAR WHL,R |
53401-50F00-000 |
US $80.56 |
||
|
20
|
20
53402-50F00-000
CYLINDER ASSY,REAR WHL,L
|
53402-50F00-000 |
— | ||
| replacement | |||||
|
20
|
20
53402-50F01-000 Cylinder Assy,rr Whl,l |
53402-50F01-000 |
US $62.56 |
||
|
21
|
21
53400-85851-000 CUP SET,RR WHEEL CYLINDER |
53400-85851-000 |
from US $9.23 |
||
|
22
|
22
53432-85010-000 SPRING,WHEEL CYLINDER |
53432-85010-000 |
US $2.24 |
||
|
23
|
23
55473-82030-000
Plug, bleeder
|
55473-82030-000 |
— | ||
| replacement | |||||
|
23
|
23
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
24
|
24
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
25
|
25
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
