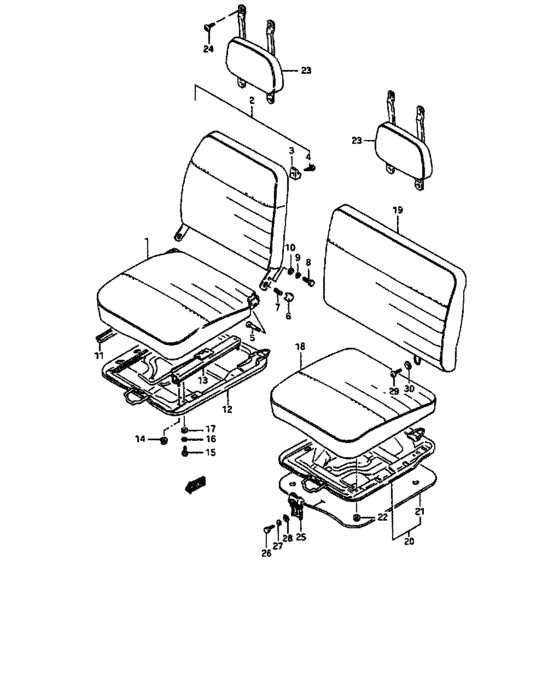

Front seat (K:TX:) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-85300-7WU
Cushion assy, rh
TYPE 1 |
85101-85300-7WU |
— | ||
|
1
|
1
85101-85300-7WY
Cushion assy, rh
TYPE 1 |
85101-85300-7WY |
— | ||
|
1
|
1
85101-85300-2FK
Cushion assy, rh
TYPE 2 |
85101-85300-2FK |
— | ||
|
2
|
2
85301-85300-7WU
Back assy, rh
TYPE 1 |
85301-85300-7WU |
— | ||
|
2
|
2
85301-85300-7WY
Back assy, rh
TYPE 1 |
85301-85300-7WY |
— | ||
|
2
|
2
85301-85300-2FK
Back assy, rh
TYPE 2 |
85301-85300-2FK |
— | ||
|
3
|
3
85293-85000-000
ストッパ,フロントシートバック
|
85293-85000-000 |
— | ||
|
4
|
4
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
5
|
5
85211-85300-000
Check, seat back
|
85211-85300-000 |
— | ||
|
6
|
6
85212-85300-000
Knob, back check
|
85212-85300-000 |
— | ||
|
7
|
7
09440-07011-000 SPRING |
09440-07011-000 |
US $16.20 |
||
|
8
|
8
85291-85000-000 BOLT,FR SEAT BACK HINGE |
85291-85000-000 |
US $3.16 |
||
|
9
|
9
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
9
|
9
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
10
|
10
08322-11107-000 Washer |
08322-11107-000 |
US $1.75 |
||
| replacement | |||||
|
10
|
10
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
11
|
11
85292-85000-000 SPACER,FRONT SEAT SLIDE |
85292-85000-000 |
US $2.56 |
||
|
12
|
12
85410-85220-000
Panel, seat riser rh
|
85410-85220-000 |
— | ||
|
13
|
13
86610-85010-000
Rail assy, slide rh
<-86610-85010 |
86610-85010-000 |
— | ||
| replacement | |||||
|
13
|
13
86610-85012-000
RAIL ASSY,FR SEAT,R
<-86610-85010 |
86610-85012-000 |
— | ||
|
14
|
14
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
14
|
14
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
14
|
14
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
16
|
16
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
17
|
17
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
18
|
18
85102-85220-7WU
Cushion assy, lh
TYPE 1 |
85102-85220-7WU |
— | ||
|
18
|
18
85102-85220-7WY
Cushion assy, lh
TYPE 1 |
85102-85220-7WY |
— | ||
|
18
|
18
85102-85220-2FK
Cushion assy, lh
TYPE 2 |
85102-85220-2FK |
— | ||
|
19
|
19
85302-85010-7WU
バックアッシ,フロントシート,レフト
TYPE 1 |
85302-85010-7WU |
— | ||
|
19
|
19
85302-85010-7WY
バックアッシ,フロントシート,レフト
TYPE 1 |
85302-85010-7WY |
— | ||
|
19
|
19
85302-85010-2FK
Back assy, lh
TYPE 2 |
85302-85010-2FK |
— | ||
|
20
|
20
85910-85230-000
Panel, seat riser lh
|
85910-85230-000 |
— | ||
|
21
|
21
85927-85000-000
インシュレータ,フロントシートライザ,レフト
|
85927-85000-000 |
— | ||
| replacement | |||||
|
21
|
21
85927-85001-000 INSULATOR,FR SEAT RISER,L |
85927-85001-000 |
US $36.80 |
||
|
22
|
22
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
22
|
22
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
86401-85000-4GG
ヘッドレストレイントアッシ
|
86401-85000-4GG |
— | ||
|
23
|
23
86401-85030-4GG
ヘッドレストレイントアッシ
JSAEDA21T00100088~ |
86401-85030-4GG |
— | ||
|
23
|
23
86401-85000-4GJ
ヘッドレストレイントアッシ
|
86401-85000-4GJ |
— | ||
|
23
|
23
86401-85030-4GJ
ヘッドレストレイントアッシ
JSAEDA21T00100088~ |
86401-85030-4GJ |
— | ||
|
23
|
23
86401-85000-5CZ
ヘッドレストレイントアッシ(ブラウン)
|
86401-85000-5CZ |
— | ||
|
24
|
24
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
25
|
25
86650-85220-000
Lock, seat cushion
|
86650-85220-000 |
— | ||
|
26
|
26
01107-06165-000
Bolt
|
01107-06165-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
27
|
27
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
28
|
28
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
28
|
28
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
29
|
29
03211-06128-000
スクリュ
|
03211-06128-000 |
— | ||
| replacement | |||||
|
29
|
29
03211-0612A-000 SCREW |
03211-0612A-000 |
US $7.70 |
||
|
30
|
30
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
30
|
30
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
