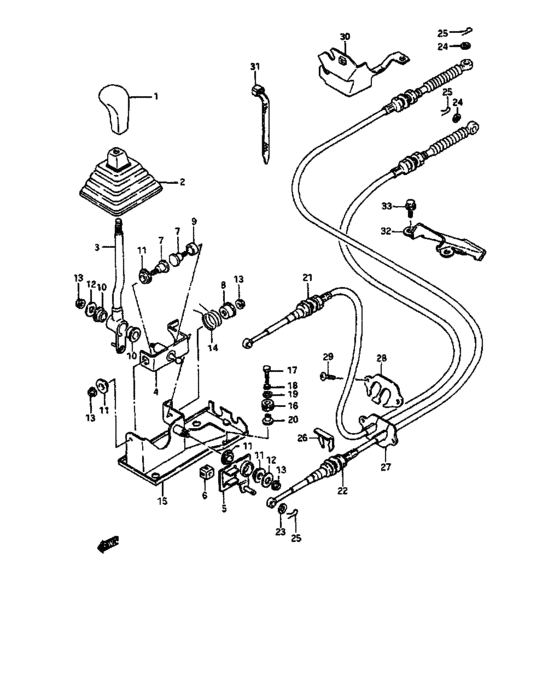

Gear shift control Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-84000-281
ノブ(ブラック)
4 SPEED |
28113-84000-281 |
— | ||
| replacement | |||||
|
1
|
1
28113-50E20-6GL KNOB,GEAR SHF CONT LVR4 SPEED |
28113-50E20-6GL |
US $29.61 |
||
|
1
|
1
28113-84050-281
ノブ(ブラック)
5 SPEED |
28113-84050-281 |
— | ||
| replacement | |||||
|
1
|
1
28113-50E60-5ES KNOB,GEAR SHF CONT LVR5 SPEED |
28113-50E60-5ES |
US $73.60 |
||
|
2
|
2
28135-85500-281
ブーツ,ギヤシフトコントロールレバー(ブラック)
<-28135-85002-281 |
28135-85500-281 |
— | ||
| replacement | |||||
|
2
|
2
28135-85003-5PK BOOT,GR SHF CONT<-28135-85002-281 |
28135-85003-5PK |
US $15.96 |
||
|
3
|
3
28110-85000-000
レバー,コントロール
|
28110-85000-000 |
— | ||
| replacements | |||||
|
3
|
3
28100-85810-000
Lever set,gear shift control
|
28100-85810-000 |
— | ||
|
3
|
3
28135-85003-5PK BOOT,GR SHF CONT |
28135-85003-5PK |
US $15.96 |
||
|
4
|
4
28120-85001-000
ヨーク,ギヤシフトコントロール
<-28120-85000 |
28120-85001-000 |
— | ||
| replacement | |||||
|
4
|
4
28100-85840-000
Yoke set,shift lever
<-28120-85000 |
28100-85840-000 |
— | ||
|
5
|
5
28130-85001-000
アーム,ギヤコントロールセレクト
<-28130-85000 |
28130-85001-000 |
— | ||
|
6
|
6
28369-85000-000
ブッシュ,セレクトコントロールアームガイド
|
28369-85000-000 |
— | ||
|
7
|
7
28125-85001-000
ピン,レバーヨーク
<-28125-85000 |
28125-85001-000 |
— | ||
|
8
|
8
28368-84201-000
スペーサ,セレクトリターンスプリング
|
28368-84201-000 |
— | ||
|
9
|
9
09305-14005-000
BUSH
|
09305-14005-000 |
— | ||
|
10
|
10
09306-14007-000
BUSH
|
09306-14007-000 |
— | ||
|
11
|
11
09306-14008-000
BUSH
|
09306-14008-000 |
— | ||
|
12
|
12
09160-08021-000 Washer (8.2x24x1.6) |
09160-08021-000 |
US $2.85 |
||
| replacement | |||||
|
12
|
12
09160-08130-000 WASHER(8.5X24X1.6) |
09160-08130-000 |
from US $0.91 |
||
|
13
|
13
08316-16086-000
Nut, reverse lever pivot
|
08316-16086-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
09448-29008-000 SPRING |
09448-29008-000 |
US $26.90 |
||
|
15
|
15
28360-85002-000
Guide,gear control
<-28360-85001 |
28360-85002-000 |
— | ||
|
16
|
16
09320-08041-000 CUSHION |
09320-08041-000 |
US $1.76 |
||
|
17
|
17
01107-06307-000 Bolt |
01107-06307-000 |
US $2.38 |
||
| replacement | |||||
|
17
|
17
01500-06307-000 Bolt |
01500-06307-000 |
from US $0.80 |
||
|
18
|
18
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
19
|
19
09160-06007-000
Washer
|
09160-06007-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
20
|
20
09169-06048-000 WASHER |
09169-06048-000 |
US $0.96 |
||
|
21
|
21
28370-85201-000
CABLE ASSY,T/M SHIFT CONTROL
|
28370-85201-000 |
— | ||
|
22
|
22
28380-85200-000
CABLE ASSY,GR SELECT CONTROL
|
28380-85200-000 |
— | ||
|
23
|
23
08212-08182-000 WASHER |
08212-08182-000 |
from US $0.80 |
||
|
24
|
24
09160-08067-000
Washer
|
09160-08067-000 |
— | ||
| replacement | |||||
|
24
|
24
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
25
|
25
09385-08004-000 PIN,SNAP |
09385-08004-000 |
from US $1.28 |
||
|
26
|
26
09383-19002-000
クリップ
|
09383-19002-000 |
— | ||
| replacement | |||||
|
26
|
26
09383-19001-000 E RINGClip |
09383-19001-000 |
from US $2.72 |
||
|
27
|
27
28393-85000-000
Grommet, control cable
|
28393-85000-000 |
— | ||
| replacement | |||||
|
27
|
27
28300-85810-000 GROMMET SET,CABLE |
28300-85810-000 |
US $8 |
||
|
28
|
28
28395-85000-000
プレート,コントロールケーブルグロメット
|
28395-85000-000 |
— | ||
|
29
|
29
03141-06168-000
スクリュ
|
03141-06168-000 |
— | ||
| replacement | |||||
|
29
|
29
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
30
|
30
28391-85202-000 BRACKET,CONTROL CABLE,RR<-28391-85201 |
28391-85202-000 |
US $10.82 |
||
|
31
|
31
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
32
|
32
28388-85001-000
Guide, cable
|
28388-85001-000 |
— | ||
| replacement | |||||
|
32
|
32
28388-85002-000 GUIDE,T/M CABLE |
28388-85002-000 |
US $8.16 |
||
|
33
|
33
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
33
|
33
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
