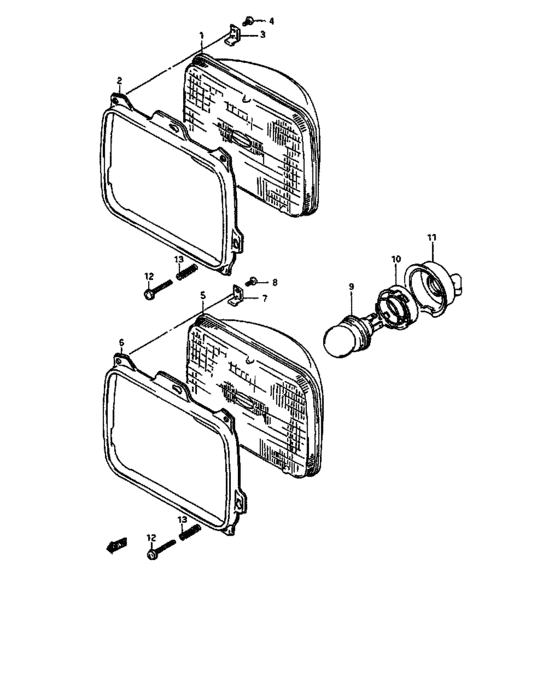

Headlamp (SQUARE TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-82020-000
Unit, headlamp
LHD, <-35121-78020 |
35121-82020-000 |
— | ||
| replacement | |||||
|
1
|
1
35121-82021-000
UNIT,LAMP
LHD, <-35121-78020 |
35121-82021-000 |
— | ||
|
1
|
1
35121-85090-000
ユニット,ヘッドランプ
RHD |
35121-85090-000 |
— | ||
| replacement | |||||
|
1
|
1
35121-77301-000 UNIT,LAMP KOITORHD |
35121-77301-000 |
US $243.20 |
||
|
2
|
2
35131-85060-000 RIM,HEADLAMP |
35131-85060-000 |
US $19.20 |
||
|
3
|
3
35132-78020-000
RETAINER
|
35132-78020-000 |
— | ||
|
4
|
4
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
5
|
5
35121-78030-000
Unit assy,head lamp
, , 7, 8 |
35121-78030-000 |
— | ||
|
5
|
5
35121-78040-000 UNIT ASSY,HEADLAMPFinland, Norway, Switzerland, Belgium, Germany, Holland,,Denmark, Italy, Austria, Israel |
35121-78040-000 |
US $89.42 |
||
|
5
|
5
35121-78050-000 UNIT ASSY,HEADLAMPNew Caledonia |
35121-78050-000 |
US $111.50 |
||
|
6
|
6
35131-85060-000 RIM,HEADLAMP, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Italy, Austria, Israel,,New Caledonia, New Caledonia, 8 |
35131-85060-000 |
US $19.20 |
||
|
7
|
7
35132-78020-000
RETAINER
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Italy, Austria, Israel,,New Caledonia, 8 |
35132-78020-000 |
— | ||
|
8
|
8
02112-04087-000 SCREW, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Italy, Austria, Israel,,New Caledonia, 8 |
02112-04087-000 |
from US $0.80 |
||
|
9
|
9
09471-12048-000 BULB(12V45/40W)Bulb (12v,45/40w) , , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Italy, Austria, Israel,,New Caledonia, 8 |
09471-12048-000 |
US $182.20 |
||
|
9
|
9
09471-12049-000
Bulb (12v,45/40w)
New Caledonia |
09471-12049-000 |
— | ||
|
10
|
10
35136-34670-000
SETTER,BULB
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Italy, Austria, Israel,,New Caledonia, 8 |
35136-34670-000 |
— | ||
|
11
|
11
35179-72600-000
COVER,HEADLAMP BULB
, , Finland, Norway, Switzerland, Belgium, 2,,5, 6, 7, Italy, Austria, Israel,,New Caledonia, 8 |
35179-72600-000 |
— | ||
|
12
|
12
09136-05031-000 SCREW(5X35) |
09136-05031-000 |
US $1.28 |
||
|
13
|
13
09440-09020-000 SPRING |
09440-09020-000 |
US $1.28 |
||
