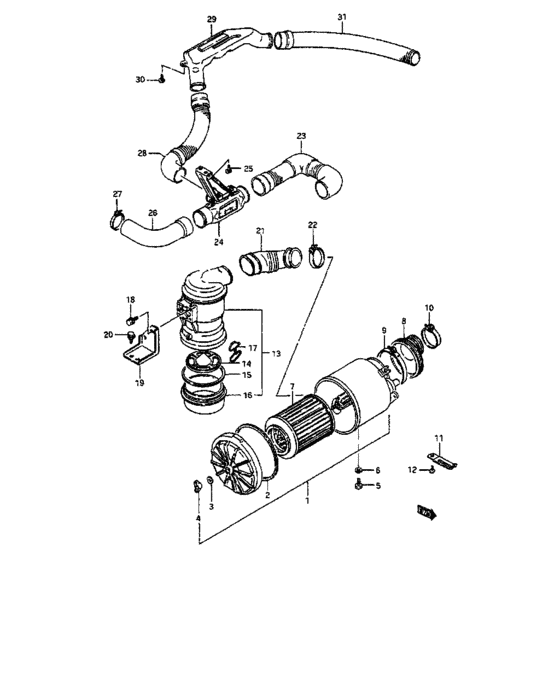

Air cleaner (V:W/SUB CLEANER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-85200-000
Case assy, air cleaner
|
13701-85200-000 |
— | ||
| replacement | |||||
|
1
|
1
13701-85X52-000 CASE ASSY,AIR CLEANER |
13701-85X52-000 |
US $97.15 |
||
|
2
|
2
13772-77300-000 GASKET,AIR CLEANER CAP |
13772-77300-000 |
US $4.56 |
||
|
3
|
3
08322-11066-000
E ring
|
08322-11066-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
08317-12066-000
Nut
|
08317-12066-000 |
— | ||
| replacement | |||||
|
4
|
4
08317-1206A-000 NUT |
08317-1206A-000 |
from US $1.06 |
||
|
5
|
5
01107-08123-000 ボルト |
01107-08123-000 |
US $1.23 |
||
| replacement | |||||
|
5
|
5
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
6
|
6
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
13780-79201-000 ELEMENT,AIR CLEANER |
13780-79201-000 |
US $30.40 |
||
|
8
|
8
13881-79100-000 BOOT,AIR CLEANER TO CARBURATOR |
13881-79100-000 |
US $6.23 |
||
|
9
|
9
09402-00303-000 CLAMP |
09402-00303-000 |
from US $4.99 |
||
|
10
|
10
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
11
|
11
09404-06413-000
Clamp throttle
|
09404-06413-000 |
— | ||
| replacements | |||||
|
11
|
11
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
11
|
11
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
12
|
12
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
12
|
12
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
13
|
13
13760-85700-000
CLEANER ASSY,AIR SUB
|
13760-85700-000 |
— | ||
|
15
|
15
13769-79202-000
SEAL RING,DUST CUP
|
13769-79202-000 |
— | ||
|
16
|
16
13767-79202-000 DUST CUP,SUB CLEANER |
13767-79202-000 |
US $13.14 |
||
|
17
|
17
13763-79202-000 CLAMP,SUB CLEANER |
13763-79202-000 |
US $4.75 |
||
|
18
|
18
01514-06123-000
Vis
|
01514-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
13737-85700-000
Bracket, sub cleaner
|
13737-85700-000 |
— | ||
|
20
|
20
01514-08123-000
Bolt
|
01514-08123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
20
|
20
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
21
|
21
13861-85700-000
HOSE,SUB CLNR TO AIR CLNR
|
13861-85700-000 |
— | ||
|
22
|
22
09402-56309-000 CLAMP |
09402-56309-000 |
US $32 |
||
|
23
|
23
13850-85700-000
Hose, inlet to sub cleaner
|
13850-85700-000 |
— | ||
| replacement | |||||
|
23
|
23
13850-85701-000
HOSE,VALVE TO SUB CLEANER
|
13850-85701-000 |
— | ||
|
24
|
24
13740-85710-000 CASE ASSY,AIR VALVEN/WARM AIR |
13740-85710-000 |
US $35.14 |
||
|
24
|
24
13740-85700-000 CASE ASSY,AIR VALVEW/WARM AIR |
13740-85700-000 |
US $32.75 |
||
|
25
|
25
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
25
|
25
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
26
|
26
13871-85500-000
ジョイント,インレットツーエアバルブ
|
13871-85500-000 |
— | ||
|
27
|
27
09402-48309-000
クランプ
|
09402-48309-000 |
— | ||
| replacement | |||||
|
27
|
27
09402-48208-000 CLAMP |
09402-48208-000 |
from US $2.24 |
||
|
28
|
28
13840-85701-000
Hose, warm air
W/WARM AIR,<-13840-85700 |
13840-85701-000 |
— | ||
| replacement | |||||
|
28
|
28
13840-85702-000
HOSE,WARM AIR
W/WARM AIR,<-13840-85700 |
13840-85702-000 |
— | ||
|
29
|
29
13847-85500-000
CHAMBER,WARM AIR
W/WARM AIR |
13847-85500-000 |
— | ||
|
30
|
30
03141-06123-000
Screw 6x12
W/WARM AIR |
03141-06123-000 |
— | ||
| replacement | |||||
|
30
|
30
03141-0612A-000 SCREWW/WARM AIR |
03141-0612A-000 |
US $0.76 |
||
|
31
|
31
13840-85711-000
Hose, warm air
W/WARM AIR,<-13840-85710 |
13840-85711-000 |
— | ||
| replacement | |||||
|
31
|
31
13840-85X51-000 HOSE,WARM AIRW/WARM AIR,<-13840-85710 |
13840-85X51-000 |
US $47.20 |
||
