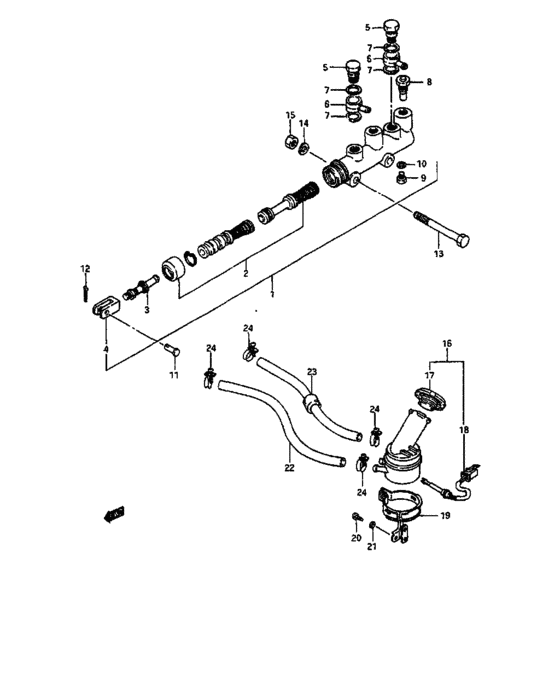

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-85220-000
Cylinder assy,brake master
LHD |
51100-85220-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-85221-000
CYLINDER ASSY,BRAKE MASTER
LHD |
51100-85221-000 |
— | ||
|
1
|
1
51100-85020-000
CYLINDER ASSY,BRAKE MASTER
RHD |
51100-85020-000 |
— | ||
|
2
|
2
51100-85810-000
Piston set, brake master
|
51100-85810-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-85812-000
PISTON SET,BRAKE MASTER
|
51100-85812-000 |
— | ||
|
3
|
3
51180-85020-000
Rod, push
|
51180-85020-000 |
— | ||
|
4
|
4
51182-85020-000
Clevis, push rod
|
51182-85020-000 |
— | ||
|
5
|
5
51192-53020-000
Bolt, connector
|
51192-53020-000 |
— | ||
|
6
|
6
51191-69020-000
Connector, master cylinder
|
51191-69020-000 |
— | ||
|
7
|
7
51193-85020-000
Gasket, connector
<-51193-67020 |
51193-85020-000 |
— | ||
|
8
|
8
51112-85020-000
Cap, outlet union
|
51112-85020-000 |
— | ||
|
9
|
9
51165-82020-000
ボルト,セカンダリストッパ
|
51165-82020-000 |
— | ||
|
10
|
10
51166-67020-000
リング,ストッパボルトシール
|
51166-67020-000 |
— | ||
|
11
|
11
09200-08050-000
ピン
|
09200-08050-000 |
— | ||
|
12
|
12
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
13
|
13
09100-10018-000
Bolt
|
09100-10018-000 |
— | ||
| replacement | |||||
|
13
|
13
09100-10151-000 BOLT(10X107) |
09100-10151-000 |
from US $4.33 |
||
|
14
|
14
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
15
|
15
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
15
|
15
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
15
|
15
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
16
|
16
51200-85410-000
Reservoir assy, brake master
LHD:TA |
51200-85410-000 |
— | ||
| replacement | |||||
|
16
|
16
51200-85600-000 RESERVOIR ASSY,BRAKE MASTERLHD:TA |
51200-85600-000 |
US $59.62 |
||
|
16
|
16
51200-85310-000
Reservoir assy, brake master
LHD:TX |
51200-85310-000 |
— | ||
| replacement | |||||
|
16
|
16
51200-85600-000 RESERVOIR ASSY,BRAKE MASTERLHD:TX |
51200-85600-000 |
US $59.62 |
||
|
16
|
16
51200-85210-000
Reservoir assy, brake master
RHD:TA |
51200-85210-000 |
— | ||
|
16
|
16
51200-85010-000
リザーバアッシ,ブレーキマスタ
RHD:TX |
51200-85010-000 |
— | ||
| replacement | |||||
|
16
|
16
51200-85610-000
Reservoir assy,brake master
RHD:TX |
51200-85610-000 |
— | ||
|
17
|
17
51220-79210-000
キャップ,リザーバ
|
51220-79210-000 |
— | ||
| replacement | |||||
|
17
|
17
51220-77M00-000 CAP,RESERVOIR |
51220-77M00-000 |
from US $17.89 |
||
|
18
|
18
51212-85010-000 SWITCH,CYLINDER RSVRTX |
51212-85010-000 |
US $31.65 |
||
|
19
|
19
51250-85200-000
Bracket, brake reservoir
LHD |
51250-85200-000 |
— | ||
| replacement | |||||
|
19
|
19
51250-85100-000 BRACKET,BRAKE RESERVOIRLHD |
51250-85100-000 |
US $9.20 |
||
|
19
|
19
51250-85000-000
ブラケット,ブレーキリザーバ
RHD |
51250-85000-000 |
— | ||
| replacement | |||||
|
19
|
19
51250-85100-000 BRACKET,BRAKE RESERVOIRRHD |
51250-85100-000 |
US $9.20 |
||
|
20
|
20
02112-06206-000
Screw
|
02112-06206-000 |
— | ||
| replacements | |||||
|
20
|
20
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.80 |
||
|
20
|
20
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.80 |
||
|
21
|
21
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
22
|
22
51241-67639-000
Hose, rear
LHD, <-51241-85230 |
51241-67639-000 |
— | ||
| replacement | |||||
|
22
|
22
51241-85X50-000 HOSE,BRAKE RESERVOIRLHD, <-51241-85230 |
51241-85X50-000 |
from US $20.61 |
||
|
22
|
22
51241-85330-000
ホース,ブレーキリザーバプライマリ
RHD |
51241-85330-000 |
— | ||
| replacement | |||||
|
22
|
22
51241-85X50-000 HOSE,BRAKE RESERVOIRRHD |
51241-85X50-000 |
from US $20.61 |
||
|
23
|
23
51242-85230-000
Hose, secondary
LHD |
51242-85230-000 |
— | ||
|
23
|
23
51242-85030-000
Hose, secondary
RHD |
51242-85030-000 |
— | ||
|
24
|
24
09400-16301-000
Reservoir hose
TYPE 1 |
09400-16301-000 |
— | ||
| replacement | |||||
|
24
|
24
09400-16304-000 CLAMPTYPE 1 |
09400-16304-000 |
from US $4.96 |
||
|
24
|
24
09400-15303-000 CLAMPTYPE 2 |
09400-15303-000 |
US $17.30 |
||
