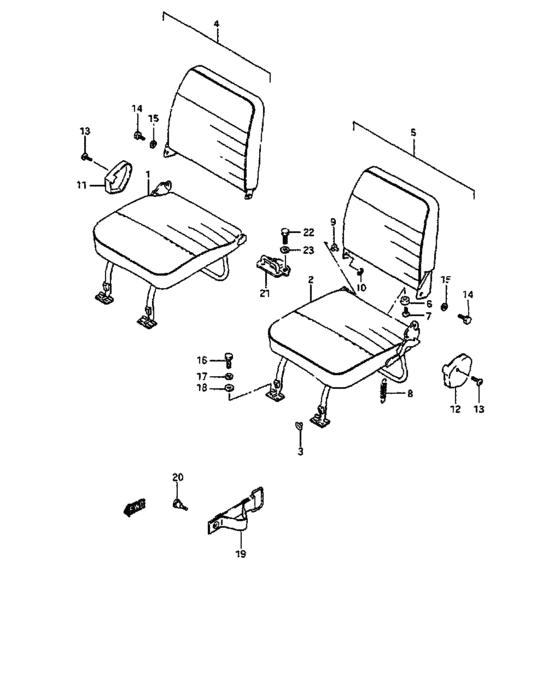

Rear seat (LOW FLOOR:SEPARATE TYPE:New Zealand, Saudi Arabia) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-85230-8AS
Cushion assy, rh
TYPE 1:Saudi Arabia |
87101-85230-8AS |
— | ||
|
1
|
1
87101-85230-8AT
Cushion assy, rh
TYPE 1:Saudi Arabia |
87101-85230-8AT |
— | ||
|
1
|
1
87101-85230-2EH
Cushion assy, rh
TYPE 2:Saudi Arabia |
87101-85230-2EH |
— | ||
|
1
|
1
87101-85250-7WU
Cushion assy, rh
TYPE 1:New Zealand |
87101-85250-7WU |
— | ||
|
1
|
1
87101-85250-7WY
Cushion assy, rh
TYPE 1:New Zealand |
87101-85250-7WY |
— | ||
|
2
|
2
87102-85230-8AS
Cushion assy, lh
TYPE 1:Saudi Arabia |
87102-85230-8AS |
— | ||
|
2
|
2
87102-85230-8AT
Cushion assy, lh
TYPE 1:Saudi Arabia |
87102-85230-8AT |
— | ||
|
2
|
2
87102-85230-2EH
Cushion assy, lh
TYPE 2:Saudi Arabia |
87102-85230-2EH |
— | ||
|
2
|
2
87102-85250-7WU
Cushion assy, lh
TYPE 1:New Zealand |
87102-85250-7WU |
— | ||
|
2
|
2
87102-85250-7WY
Cushion assy, lh
TYPE 1:New Zealand |
87102-85250-7WY |
— | ||
|
3
|
3
87295-80200-000 CUSHION,REAR SEAT REAR LEG |
87295-80200-000 |
from US $1.47 |
||
|
4
|
4
87301-85220-8AS
Back assy, rh
TYPE 1:Saudi Arabia |
87301-85220-8AS |
— | ||
|
4
|
4
87301-85220-8AT
Back assy, rh
TYPE 1:Saudi Arabia |
87301-85220-8AT |
— | ||
|
4
|
4
87301-85220-2EH
Back assy, rh
TYPE 2 |
87301-85220-2EH |
— | ||
|
4
|
4
87301-85700-7WU
Back assy, rh
TYPE 1:New Zealand |
87301-85700-7WU |
— | ||
|
4
|
4
87301-85700-7WY
Back assy, rh
TYPE 1:New Zealand |
87301-85700-7WY |
— | ||
|
5
|
5
87302-85220-8AS
Back assy, lh
TYPE 1:Saudi Arabia |
87302-85220-8AS |
— | ||
|
5
|
5
87302-85220-8AT
Back assy, lh
TYPE 1:Saudi Arabia |
87302-85220-8AT |
— | ||
|
5
|
5
87302-85220-2EH
Back assy, lh
TYPE 2:Saudi Arabia |
87302-85220-2EH |
— | ||
|
5
|
5
87302-85700-7WU
Back assy, lh
TYPE 1:New Zealand |
87302-85700-7WU |
— | ||
|
5
|
5
87302-85700-7WY
Back assy, lh
TYPE 1:New Zealand |
87302-85700-7WY |
— | ||
|
6
|
6
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
7
|
7
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
8
|
8
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
9
|
9
09306-08003-000
Bush
|
09306-08003-000 |
— | ||
| replacement | |||||
|
9
|
9
09306-08016-000 BUSH |
09306-08016-000 |
from US $4.28 |
||
|
10
|
10
08332-11068-000
E ring
|
08332-11068-000 |
— | ||
| replacements | |||||
|
10
|
10
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.90 |
||
|
10
|
10
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
11
|
11
87221-85530-281
カバー,リヤシートヒンジ,ライト
|
87221-85530-281 |
— | ||
|
12
|
12
87222-85530-281
カバー,リヤシートヒンジ,レフト
|
87222-85530-281 |
— | ||
| replacement | |||||
|
12
|
12
87222-85530-5PK
COVER,RR SEAT HINGE,L
|
87222-85530-5PK |
— | ||
|
13
|
13
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
14
|
14
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
15
|
15
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
15
|
15
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
16
|
16
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
17
|
17
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
18
|
18
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
19
|
19
87880-85720-000 BAND,RR SEAT STOPPER |
87880-85720-000 |
US $15.46 |
||
|
20
|
20
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
|
21
|
21
87830-85720-000
Striker comp,rear seat lock
New Zealand |
87830-85720-000 |
— | ||
|
22
|
22
09100-12015-000
Bolt
New Zealand |
09100-12015-000 |
— | ||
| replacement | |||||
|
22
|
22
09103-12040-000 BOLT(12X22)New Zealand |
09103-12040-000 |
US $1.92 |
||
|
23
|
23
08322-11126-000
Washer
New Zealand |
08322-11126-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-0112B-000 WASHERNew Zealand |
08322-0112B-000 |
from US $0.80 |
||
