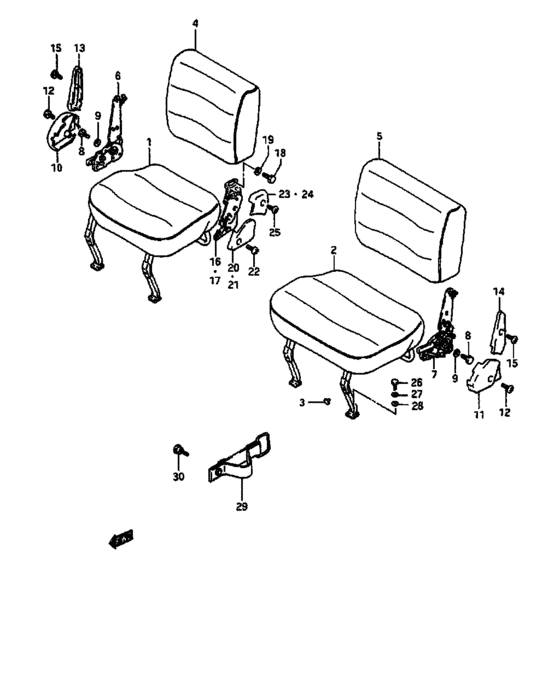

Rear seat (FLAT FLOOR:TX:SEPARATE TYPE:Saudi Arabia) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-85240-8AS
Cushion assy, rh
TYPE 1 |
87101-85240-8AS |
— | ||
|
1
|
1
87101-85240-8AT
Cushion assy, rh
TYPE 1 |
87101-85240-8AT |
— | ||
|
1
|
1
87101-85240-2EH
Cushion assy, rh
TYPE 2 |
87101-85240-2EH |
— | ||
|
2
|
2
87102-85240-8AS
Cushion assy, lh
TYPE 1 |
87102-85240-8AS |
— | ||
|
2
|
2
87102-85240-8AT
Cushion assy, lh
TYPE 1 |
87102-85240-8AT |
— | ||
|
2
|
2
87102-85240-2EH
Cushion assy, lh
TYPE 2 |
87102-85240-2EH |
— | ||
|
3
|
3
87295-80200-000 CUSHION,REAR SEAT REAR LEG |
87295-80200-000 |
from US $1.47 |
||
|
4
|
4
87301-85240-8AS
Back assy, rh
TYPE 1 |
87301-85240-8AS |
— | ||
|
4
|
4
87301-85240-8AT
Back assy, rh
TYPE 1 |
87301-85240-8AT |
— | ||
|
4
|
4
87301-85240-2EH
Back assy, rh
TYPE 2 |
87301-85240-2EH |
— | ||
|
5
|
5
87302-85240-8AS
Back assy, lh
TYPE 1 |
87302-85240-8AS |
— | ||
|
5
|
5
87302-85240-8AT
Back assy, lh
TYPE 1 |
87302-85240-8AT |
— | ||
|
5
|
5
87302-85240-2EH
Back assy, lh
TYPE 2 |
87302-85240-2EH |
— | ||
|
6
|
6
87210-85701-000
Reclining assy, rh
|
87210-85701-000 |
— | ||
|
7
|
7
87610-85701-000
Reclining assy, lh
|
87610-85701-000 |
— | ||
|
8
|
8
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
9
|
9
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
9
|
9
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
10
|
10
87221-85500-281
Cover, reclining lower rh
|
87221-85500-281 |
— | ||
| replacement | |||||
|
10
|
10
87221-85500-5PK
COVER,RECLINING ASSY,LOWER,R
|
87221-85500-5PK |
— | ||
|
11
|
11
87621-85500-281
Cover, reclining lower lh
|
87621-85500-281 |
— | ||
| replacement | |||||
|
11
|
11
87621-85500-5PK
COVER,RECLINING ASSY LOWER,L
|
87621-85500-5PK |
— | ||
|
12
|
12
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
13
|
13
87222-85500-281
カバー,リクライニングアッパ,ライト
|
87222-85500-281 |
— | ||
|
14
|
14
87622-85500-281
カバー,リクライニングアッパ,レフト
|
87622-85500-281 |
— | ||
| replacement | |||||
|
14
|
14
87622-85500-5PK
COVER,RECLINING ASSY UPPER,L
|
87622-85500-5PK |
— | ||
|
15
|
15
02142-06104-000
Screw
|
02142-06104-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
15
|
15
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
16
|
16
87280-85500-000
ヒンジ,リヤシート,ライト
->87280-85501,USED WITH 03241-05125 |
87280-85500-000 |
— | ||
| replacements | |||||
|
16
|
16
03241-0512A-000 SCREW->87280-85501,USED WITH 03241-05125 |
03241-0512A-000 |
from US $0.68 |
||
|
16
|
16
03241-05125-000
Screw
->87280-85501,USED WITH 03241-05125 |
03241-05125-000 |
— | ||
|
16
|
16
87280-85501-000
ヒンジ,リヤシートバック,ライト
DA21V-102523~ |
87280-85501-000 |
— | ||
|
17
|
17
87680-85501-000
ヒンジ,リヤシートバック,レフト
|
87680-85501-000 |
— | ||
|
18
|
18
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
19
|
19
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
19
|
19
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
20
|
20
87296-85500-281
カバー,ヒンジロア,ライト
|
87296-85500-281 |
— | ||
|
21
|
21
87696-85500-281
Cover, hinge lower lh
|
87696-85500-281 |
— | ||
|
22
|
22
02142-06104-000
Screw
|
02142-06104-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
22
|
22
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
23
|
23
87297-85500-281
カバー,ヒンジアッパ,ライト
|
87297-85500-281 |
— | ||
|
24
|
24
87697-85500-281
Cover, hinge upper lh
|
87697-85500-281 |
— | ||
|
25
|
25
02112-06104-000
Screw
|
02112-06104-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
26
|
26
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
27
|
27
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
28
|
28
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
28
|
28
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
29
|
29
87880-85540-000
バンド,リヤシートストッパ
|
87880-85540-000 |
— | ||
|
30
|
30
09139-06040-000 SCREW(6X20) |
09139-06040-000 |
US $9.60 |
||
