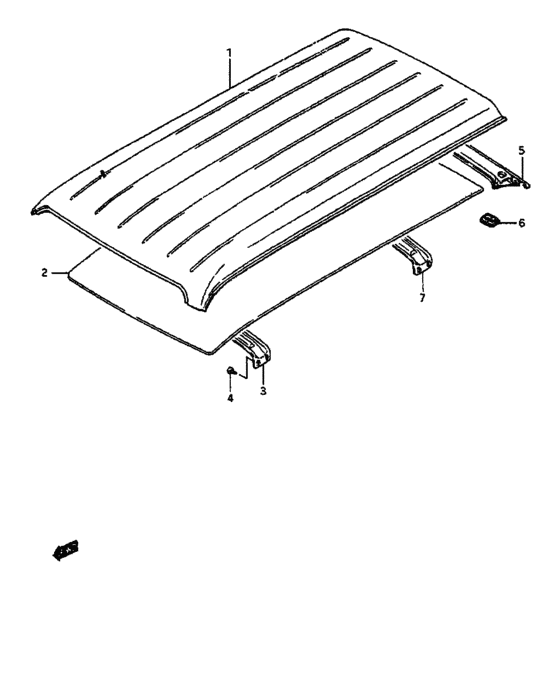

Roof panel (V:STD ROOF) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64211-85500-000 PANEL,ROOF |
64211-85500-000 |
US $412.16 |
||
|
2
|
2
78111-85500-4FL
ヘッドライニング,ルーフ
|
78111-85500-4FL |
— | ||
| replacement | |||||
|
2
|
2
78111-85500-6VD HEADLINING,ROOF |
78111-85500-6VD |
US $123.65 |
||
|
2
|
2
78111-85760-4FL
Headlining, roof
Sinagpore |
78111-85760-4FL |
— | ||
|
3
|
3
78151-85500-25B
Reinf, roof front
|
78151-85500-25B |
— | ||
| replacement | |||||
|
3
|
3
78150-67C00-000 REINFORCEMENT,ROOF FR |
78150-67C00-000 |
US $55.20 |
||
|
4
|
4
02142-06088-000
Screw 6 x 8
|
02142-06088-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-06087-000 SCREW |
02142-06087-000 |
from US $0.77 |
||
|
5
|
5
64600-85500-000 PANEL ASSY,ROOF BACK |
64600-85500-000 |
US $82.43 |
||
|
6
|
6
78171-85500-000
CAP,BACK DR HINGE HOLE
|
78171-85500-000 |
— | ||
|
7
|
7
78155-85500-25B
Reinf, roof rear
|
78155-85500-25B |
— | ||
| replacement | |||||
|
7
|
7
78160-67C00-000 REINFORCEMENT,ROOF RR |
78160-67C00-000 |
US $55.20 |
||
