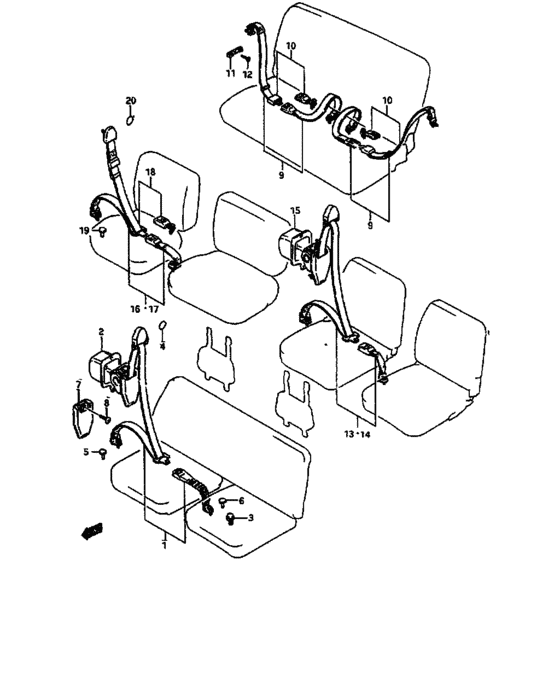

Seat belt (,Finland,Norway,Switzerland,Belgium,2,5,7,Italy,Austria,Israel,Iceland) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-85201-4FY
Belt assy, front
E.L.R TYPE |
84901-85201-4FY |
— | ||
| replacement | |||||
|
1
|
1
84901-85201-5FJ
Belt assy,front
E.L.R TYPE |
84901-85201-5FJ |
— | ||
|
1
|
1
84901-85201-382
Belt assy, front
E.L.R TYPE |
84901-85201-382 |
— | ||
| replacement | |||||
|
1
|
1
84901-85201-5FJ
Belt assy,front
E.L.R TYPE |
84901-85201-5FJ |
— | ||
|
1
|
1
84901-85201-5DD
Belt assy, front
E.L.R TYPE |
84901-85201-5DD |
— | ||
| replacement | |||||
|
1
|
1
84901-85201-5FJ
Belt assy,front
E.L.R TYPE |
84901-85201-5FJ |
— | ||
|
2
|
2
84952-85000-000 PROTECTOR,FRONT ELR |
84952-85000-000 |
US $5.19 |
||
|
3
|
3
09103-12020-000
ボルト
|
09103-12020-000 |
— | ||
| replacement | |||||
|
3
|
3
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
4
|
4
67627-70000-000
シール,ホール
N/SEAT BELT |
67627-70000-000 |
— | ||
| replacement | |||||
|
4
|
4
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/SEAT BELT |
84761-50X50-000 |
US $6.72 |
||
|
5
|
5
09250-10013-000
Plug, seat lock striker hole
N/SEAT BELT |
09250-10013-000 |
— | ||
| replacement | |||||
|
5
|
5
09250-10017-000 PLUG(OD:22)N/SEAT BELT |
09250-10017-000 |
US $17.70 |
||
|
6
|
6
09250-10013-000
Plug, seat lock striker hole
N/SEAT BELT |
09250-10013-000 |
— | ||
| replacement | |||||
|
6
|
6
09250-10017-000 PLUG(OD:22)N/SEAT BELT |
09250-10017-000 |
US $17.70 |
||
|
7
|
7
84951-85200-000
カバー,フロントELRホール
|
84951-85200-000 |
— | ||
|
8
|
8
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
9
|
9
84904-85731-4FY
Belt assy, rear
LOW FLOOR:, Switzerland, Germany, Holland,,Israel |
84904-85731-4FY |
— | ||
| replacement | |||||
|
9
|
9
84904-85731-5FJ
BELT ASSY,RR
LOW FLOOR:, Switzerland, Germany, Holland,,Israel |
84904-85731-5FJ |
— | ||
|
9
|
9
84904-85731-382
Belt assy, rear
LOW FLOOR:, Switzerland, Germany, Holland,,Israel |
84904-85731-382 |
— | ||
| replacement | |||||
|
9
|
9
84904-85731-5FJ
BELT ASSY,RR
LOW FLOOR:, Switzerland, Germany, Holland,,Israel |
84904-85731-5FJ |
— | ||
|
9
|
9
84904-85731-5DD
Belt assy, rear
LOW FLOOR:Switzerland, Germany, Holland, Israel |
84904-85731-5DD |
— | ||
| replacement | |||||
|
9
|
9
84904-85731-5FJ
BELT ASSY,RR
LOW FLOOR:Switzerland, Germany, Holland, Israel |
84904-85731-5FJ |
— | ||
|
9
|
9
84904-85761-4FY
Belt assy, rear
FLAT FLOOR,TA:, Switzerland, Germany, Holland, Israel |
84904-85761-4FY |
— | ||
|
9
|
9
84904-85761-382
Belt assy, rear
FLAT FLOOR,TA:, Switzerland, Germany, Holland, Israel |
84904-85761-382 |
— | ||
|
10
|
10
84904-85701-4FY
Belt assy, rear
FLAT FLOOR,TX:, Switzerland, Germany, Holland, Israel,STEEL PLATE TYPE |
84904-85701-4FY |
— | ||
|
10
|
10
84904-85701-382
Belt assy, rear
FLAT FLOOR,TX:, Switzerland, Germany, Holland, Israel,STEEL PLATE TYPE |
84904-85701-382 |
— | ||
|
10
|
10
84904-85701-5DD
Belt assy, rear
FLAT FLOOR,TX:Switzerland, Germany, Holland, Israel, Iceland,STEEL PLATE TYPE |
84904-85701-5DD |
— | ||
|
11
|
11
87341-67000-000
HOLDER,SEAT BELT
Switzerland, Germany, Holland, Israel |
87341-67000-000 |
— | ||
|
12
|
12
03141-05165-000
Screw
Germany, Holland, Israel |
03141-05165-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0516A-000 SCREWGermany, Holland, Israel |
03141-0516A-000 |
from US $0.80 |
||
|
13
|
13
84904-85781-4FY
Belt assy, rear rh
FLAT FLOOR,TA:, Switzerland, New Zealand,E.L.R TYPE |
84904-85781-4FY |
— | ||
|
13
|
13
84904-85781-382
Belt assy, rear rh
FLAT FLOOR,TA:, Switzerland, New Zealand,<-84904-85780-382,E.L.R TYPE |
84904-85781-382 |
— | ||
|
13
|
13
84904-85721-4FY
Belt assy, rear rh
TX:, E.L.R TYPE |
84904-85721-4FY |
— | ||
|
13
|
13
84904-85721-382
Belt assy, rear rh
TX:, E.L.R TYPE |
84904-85721-382 |
— | ||
|
13
|
13
84904-85790-4FY
Belt assy, rear rh
TX:, E.L.R TYPE |
84904-85790-4FY |
— | ||
|
13
|
13
84904-85790-382
Belt assy, rear rh
TX:, E.L.R TYPE |
84904-85790-382 |
— | ||
|
13
|
13
84904-85790-5DD
Belt assy, rear rh
TYPE 2, , E.L.R TYPE |
84904-85790-5DD |
— | ||
|
13
|
13
84904-85751-5DD
Belt assy, rear rh
LOW FLOOR New Zealand |
84904-85751-5DD |
— | ||
|
14
|
14
84905-85781-4FY
Belt assy, rear lh
FLAT FLOOR,TA:, Switzerland, New Zealand,E.L.R TYPE |
84905-85781-4FY |
— | ||
|
14
|
14
84905-85781-382
Belt assy, rear lh
FLAT FLOOR,TA:, Switzerland, New Zealand,E.L.R TYPE |
84905-85781-382 |
— | ||
|
14
|
14
84905-85721-4FY
Belt assy, rear lh
TX:, E.L.R TYPE |
84905-85721-4FY |
— | ||
|
14
|
14
84905-85721-382
Belt assy, rear lh
TX:, E.L.R TYPE |
84905-85721-382 |
— | ||
|
14
|
14
84905-85790-4FY
Belt assy, rear lh
TX:, E.L.R TYPE |
84905-85790-4FY |
— | ||
|
14
|
14
84905-85790-382
Blet assy, rear lh
TX:, E.L.R TYPE |
84905-85790-382 |
— | ||
|
14
|
14
84905-85790-5DD
Belt assy, rear lh
TYPE 2,, E.L.R TYPE |
84905-85790-5DD |
— | ||
|
14
|
14
84905-85751-5DD
Belt assy, rear lh
TYPE 2:LOW FLOOR:New Zealand |
84905-85751-5DD |
— | ||
|
15
|
15
84952-85000-000 PROTECTOR,FRONT ELRNew Zealand |
84952-85000-000 |
US $5.19 |
||
|
16
|
16
84904-85741-4FY
Belt assy, rear
LOW FLOOR:Austria |
84904-85741-4FY |
— | ||
|
16
|
16
84904-85741-382
Belt assy, rear
LOW FLOOR:Austria |
84904-85741-382 |
— | ||
|
16
|
16
84904-85741-5DD
Belt assy, rear
LOW FLOOR:Austria |
84904-85741-5DD |
— | ||
|
17
|
17
84904-85771-4FY
Belt assy, rear
FLAT FLOOR,TA:Austria |
84904-85771-4FY |
— | ||
|
17
|
17
84904-85771-382
Belt assy, rear
FLAT FLOOR,TA:Austria |
84904-85771-382 |
— | ||
|
17
|
17
84904-85761-5DD
Belt assy, rear
TYPE 2, FLAT FLOOR |
84904-85761-5DD |
— | ||
|
18
|
18
84904-85711-4FY
Belt assy, rear
FLAT FLOOR,TX:Austria,STEEL PLATE TYPE |
84904-85711-4FY |
— | ||
|
18
|
18
84904-85711-382
Belt assy, rear
FLAT FLOOR,TX:Austria,STEEL PLATE TYPE |
84904-85711-382 |
— | ||
|
18
|
18
84904-85711-5DD
Belt assy, rear
TYPE 2, FLAT FLOOR |
84904-85711-5DD |
— | ||
|
19
|
19
09250-10017-000 PLUG(OD:22)N/SEAT BELT |
09250-10017-000 |
US $17.70 |
||
|
20
|
20
67627-70000-000
シール,ホール
N/SEAT BELT |
67627-70000-000 |
— | ||
| replacement | |||||
|
20
|
20
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/SEAT BELT |
84761-50X50-000 |
US $6.72 |
||
