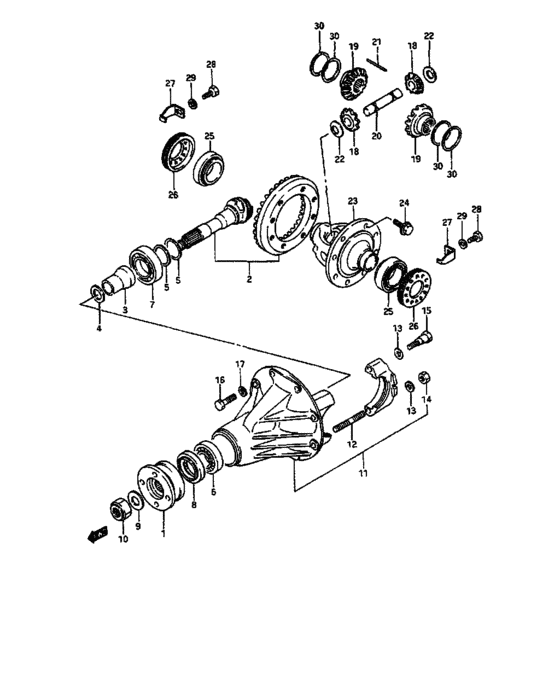

Differential gear (DIFFERENTIAL GEAR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-80401-000
フランジ,ユニバーサルジョイント
|
27110-80401-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-80402-000 FLANGE,UNIVERSAL JOINT |
27110-80402-000 |
US $38.40 |
||
|
2
|
2
27300-77811-000
Pinion & gear set, bevel
<-27300-77810 |
27300-77811-000 |
— | ||
| replacement | |||||
|
2
|
2
27300-77814-000 PINION&GEAR SET,DRIVE BEVEL<-27300-77810 |
27300-77814-000 |
US $436.48 |
||
|
3
|
3
27315-63201-000
Spacer,drive bevel pinion
|
27315-63201-000 |
— | ||
|
3
|
3
27315-80000-000
スペーサ,ドライブベベルピニオン
DA21T-100407~,DA21V-101530~,DA21B-100005~,JSAEDA21T00100019~,JSAEDA21V00100713~,JSAEDA21V08100132~ |
27315-80000-000 |
— | ||
| replacement | |||||
|
3
|
3
27315-64P00-000 SPACER,DRIVE BEVEL PINIONDA21T-100407~,DA21V-101530~,DA21B-100005~,JSAEDA21T00100019~,JSAEDA21V00100713~,JSAEDA21V08100132~ |
27315-64P00-000 |
US $15.20 |
||
|
4
|
4
09181-26001-000 SHIM(26X32.5X0.3)Washer (26x32.5x0.3) SEE NOTE |
09181-26001-000 |
US $14.40 |
||
|
4
|
4
09181-25040-000
シム,25X31X1.00
SEE NOTE |
09181-25040-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring SEE NOTE |
09181-25139-000 |
from US $4.10 |
||
|
4
|
4
09181-25041-000
シム,25X31X1.03
SEE NOTE |
09181-25041-000 |
— | ||
|
4
|
4
09181-25042-000
シム,25X31X1.06
SEE NOTE |
09181-25042-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-25142-000 SHIM(25X32X1.06)SEE NOTE |
09181-25142-000 |
US $16.20 |
||
|
4
|
4
09181-25043-000
シム,25X31X1.09
SEE NOTE |
09181-25043-000 |
— | ||
|
4
|
4
09181-25044-000
シム,25X31X1.12
SEE NOTE |
09181-25044-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-25145-000 SHIM(25X32X1.12)SEE NOTE |
09181-25145-000 |
US $1.60 |
||
|
4
|
4
09181-25045-000
シム,25X31X1.15
SEE NOTE |
09181-25045-000 |
— | ||
|
4
|
4
09181-25046-000
シム,25X31X1.18
SEE NOTE |
09181-25046-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-25147-000 SHIM(25X32X1.18)SEE NOTE |
09181-25147-000 |
US $16.20 |
||
|
4
|
4
09181-25047-000
シム,25X31X1.21
SEE NOTE |
09181-25047-000 |
— | ||
|
4
|
4
09181-25048-000
シム,25X31X1.24
SEE NOTE |
09181-25048-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-25150-000 SHIM(25X32X1.24)SEE NOTE |
09181-25150-000 |
US $16.20 |
||
|
4
|
4
09181-25049-000
シム,25X31X1.27
SEE NOTE |
09181-25049-000 |
— | ||
|
4
|
4
09181-25050-000
シム,25X31X1.30
SEE NOTE |
09181-25050-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-25153-000 SHIM(25X32X1.3)SEE NOTE |
09181-25153-000 |
US $16.20 |
||
|
5
|
5
08221-30362-000
New Genuine Part
|
08221-30362-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-30052-000 SHIM(30X36X0.05) |
09181-30052-000 |
US $15.50 |
||
|
5
|
5
08221-30383-000 SHIM |
08221-30383-000 |
US $1.44 |
||
|
5
|
5
09181-30001-000 SHIM(30X38X0.3) |
09181-30001-000 |
US $8.50 |
||
|
5
|
5
08221-30385-000
Pri driven gr s
|
08221-30385-000 |
— | ||
|
6
|
6
09265-25005-000
ベアリング,25X62X18.25
|
09265-25005-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-25039-000 BEARING(25X62X18.25) |
09265-25039-000 |
US $27.20 |
||
|
7
|
7
09265-30002-000
ベアリング,30X72X20.75
|
09265-30002-000 |
— | ||
| replacement | |||||
|
7
|
7
09265-30010-000 BEARING(30X72X20.75) |
09265-30010-000 |
US $45.60 |
||
|
8
|
8
09283-35008-000
Seal, oil (35x62x10)
|
09283-35008-000 |
— | ||
| replacement | |||||
|
8
|
8
09283-35052-000 SEAL,OIL(35X62X14.8) |
09283-35052-000 |
from US $10.34 |
||
|
9
|
9
09160-19010-000
Washer
|
09160-19010-000 |
— | ||
| replacement | |||||
|
9
|
9
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) |
09160-19022-000 |
from US $1.92 |
||
|
10
|
10
09159-18003-000 NUT |
09159-18003-000 |
from US $1.92 |
||
|
11
|
11
27450-63203-000
Carrier assy, differential
|
27450-63203-000 |
— | ||
| replacements | |||||
|
11
|
11
27450-80713-000 CARRIER ASSY,DIFF |
27450-80713-000 |
US $216 |
||
|
11
|
11
09265-25039-000 BEARING(25X62X18.25) |
09265-25039-000 |
US $27.20 |
||
|
11
|
11
09265-30018-000 BEARING(30X72X20.75) |
09265-30018-000 |
from US $38.40 |
||
|
11
|
11
27450-80712-000
キャリアアッシ,ディファレンシャル,フロント
DA21T-101700~,DA21V-104679~,JSAEDA21T00100106~,JSAEDA21V00107350~,JSAEDA21V0B100798~ |
27450-80712-000 |
— | ||
| replacements | |||||
|
11
|
11
27450-80713-000 CARRIER ASSY,DIFFDA21T-101700~,DA21V-104679~,JSAEDA21T00100106~,JSAEDA21V00107350~,JSAEDA21V0B100798~ |
27450-80713-000 |
US $216 |
||
|
11
|
11
09265-25039-000 BEARING(25X62X18.25)DA21T-101700~,DA21V-104679~,JSAEDA21T00100106~,JSAEDA21V00107350~,JSAEDA21V0B100798~ |
09265-25039-000 |
US $27.20 |
||
|
11
|
11
09265-30018-000 BEARING(30X72X20.75)DA21T-101700~,DA21V-104679~,JSAEDA21T00100106~,JSAEDA21V00107350~,JSAEDA21V0B100798~ |
09265-30018-000 |
from US $38.40 |
||
|
12
|
12
09108-10014-000
スタッドボルト
~DA21T-101699,~DA21V-104678,~JSAEDA21T00100105,~JSAEDA21V00107349,~JSAEDA21V0B100797 |
09108-10014-000 |
— | ||
|
13
|
13
08321-31106-000
Washer lock
|
08321-31106-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
13
|
13
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
08310-12106-000
Nut
~DA21T-101699,~DA21V-104678,~JSAEDA21T00100105,~JSAEDA21V00107349,~JSAEDA21V0B100797 |
08310-12106-000 |
— | ||
| replacements | |||||
|
14
|
14
08310-0010B-000 NUT~DA21T-101699,~DA21V-104678,~JSAEDA21T00100105,~JSAEDA21V00107349,~JSAEDA21V0B100797 |
08310-0010B-000 |
from US $0.80 |
||
|
14
|
14
08310-0010A-000 NUT~DA21T-101699,~DA21V-104678,~JSAEDA21T00100105,~JSAEDA21V00107349,~JSAEDA21V0B100797 |
08310-0010A-000 |
from US $0.80 |
||
|
15
|
15
09111-10043-000
ボルト
DA21T-101700~,DA21V-104679~,JSAEDA21T00100106~,JSAEDA21V00107350~,JSAEDA21V0B100798~ |
09111-10043-000 |
— | ||
| replacement | |||||
|
15
|
15
09111-10054-000 BOLT(10X50)DA21T-101700~,DA21V-104679~,JSAEDA21T00100106~,JSAEDA21V00107350~,JSAEDA21V0B100798~ |
09111-10054-000 |
US $35.30 |
||
|
16
|
16
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
16
|
16
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
17
|
17
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
17
|
17
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
18
|
18
27331-83000-000
ピニオン,ディファレンシャル
|
27331-83000-000 |
— | ||
| replacements | |||||
|
18
|
18
27331-76A20-000
PINION,DIFFERENTIAL
|
27331-76A20-000 |
— | ||
|
18
|
18
27331-83020-000 PINION,DIFFERENTIAL |
27331-83020-000 |
from US $31.39 |
||
|
18
|
18
27331-76A21-000 Pinion,differential |
27331-76A21-000 |
from US $43.75 |
||
|
19
|
19
27341-83000-000 GEAR,DIFF |
27341-83000-000 |
from US $41.04 |
||
|
20
|
20
27351-77300-000
Shaft, pinion
|
27351-77300-000 |
— | ||
| replacement | |||||
|
20
|
20
27351-64B20-000 SHAFT,DIFF SIDE PINION |
27351-64B20-000 |
US $20.80 |
||
|
21
|
21
09205-05003-000 PIN,SPRING(5X45) |
09205-05003-000 |
US $1.76 |
||
|
22
|
22
09164-15006-000 WASHER |
09164-15006-000 |
from US $1.58 |
||
|
23
|
23
27411-77300-000 CASE,DIFF GEAR |
27411-77300-000 |
US $169.60 |
||
|
24
|
24
09103-10028-000
Bolt, oil pump drive gear
|
09103-10028-000 |
— | ||
| replacement | |||||
|
24
|
24
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear |
09103-10290-000 |
from US $1.76 |
||
|
25
|
25
09265-41001-000 BEARING(41X68X17.5) |
09265-41001-000 |
from US $38.40 |
||
|
26
|
26
27461-63201-000 ADJUSTER,DIFF SIDE BEARING |
27461-63201-000 |
US $8.48 |
||
|
27
|
27
27462-63202-000 PLATE,BEARING LOCK |
27462-63202-000 |
US $2.74 |
||
|
28
|
28
01107-08126-000
Bolt 8x12
|
01107-08126-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
29
|
29
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
29
|
29
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
29
|
29
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
30
|
30
09160-35006-000 WASHER(35X46X0.9) |
09160-35006-000 |
from US $1.60 |
||
|
30
|
30
09160-35002-000 WASHER(35X46X1) |
09160-35002-000 |
from US $1.40 |
||
|
30
|
30
09160-35003-000 WASHER(35X46X1.1) |
09160-35003-000 |
from US $1.96 |
||
|
30
|
30
09160-35004-000 WASHER(35X46X1.2) |
09160-35004-000 |
from US $1.78 |
||
