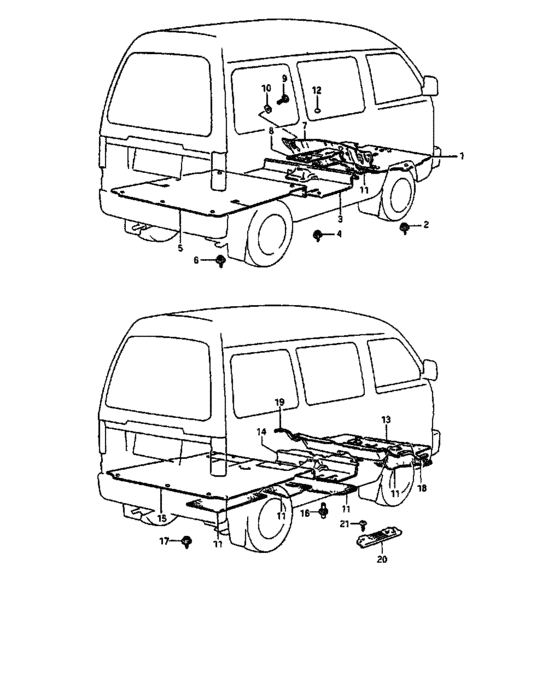

Floor mat and carpet (V:HIGH ROOF,SUN ROOF) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-85200-4GD
Mat, front floor
TYPE 1:LHD: TA |
75110-85200-4GD |
— | ||
| replacement | |||||
|
1
|
1
75110-85200-V87
MAT,FR FL
TYPE 1:LHD: TA |
75110-85200-V87 |
— | ||
|
1
|
1
75110-85200-5GP
Mat, front floor
TYPE 2:LHD: TA |
75110-85200-5GP |
— | ||
| replacement | |||||
|
1
|
1
75110-85200-V87
MAT,FR FL
TYPE 2:LHD: TA |
75110-85200-V87 |
— | ||
|
1
|
1
75110-85210-4GD
MAT,FR FL
TYPE 1:RHD: TA |
75110-85210-4GD |
— | ||
|
1
|
1
75110-85210-5GP
Mat, front floor
TYPE 2:RHD: TA |
75110-85210-5GP |
— | ||
| replacement | |||||
|
1
|
1
75110-85210-4GD
MAT,FR FL
TYPE 2:RHD: TA |
75110-85210-4GD |
— | ||
|
1
|
1
75110-85400-4GD
マット,フロントフロア(ベージュ)
TYPE 1:TA: |
75110-85400-4GD |
— | ||
| replacement | |||||
|
1
|
1
75110-85400-V87
MAT,FR FL
TYPE 1:TA: |
75110-85400-V87 |
— | ||
|
1
|
1
75110-85400-5GP
マット,フロントフロア(ブラウン)
TYPE 2:TA: |
75110-85400-5GP |
— | ||
| replacement | |||||
|
1
|
1
75110-85400-V87
MAT,FR FL
TYPE 2:TA: |
75110-85400-V87 |
— | ||
|
1
|
1
75110-85240-4GD
Mat, front floor
TYPE 1:Finland |
75110-85240-4GD |
— | ||
| replacement | |||||
|
1
|
1
75110-85200-V87
MAT,FR FL
TYPE 1:Finland |
75110-85200-V87 |
— | ||
|
1
|
1
75110-85240-5GP
Mat, front floor
TYPE 2:Finland |
75110-85240-5GP |
— | ||
| replacement | |||||
|
1
|
1
75110-85200-V87
MAT,FR FL
TYPE 2:Finland |
75110-85200-V87 |
— | ||
|
2
|
2
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
3
|
3
75120-85460-4GD
マット,リヤフロア,フロント
TYPE 1:TA:4 PERSONS |
75120-85460-4GD |
— | ||
| replacement | |||||
|
3
|
3
75120-74D60-5YU
MAT,RR FL FR
TYPE 1:TA:4 PERSONS |
75120-74D60-5YU |
— | ||
|
3
|
3
75120-85460-5GP
マット,リヤフロア,フロント(ブラウン)
TYPE 2:TA:4 PERSONS |
75120-85460-5GP |
— | ||
| replacement | |||||
|
3
|
3
75120-74D60-5YU
MAT,RR FL FR
TYPE 2:TA:4 PERSONS |
75120-74D60-5YU |
— | ||
|
3
|
3
75120-85470-4GD
Mat, rear floor front
TA:6 PERSONS |
75120-85470-4GD |
— | ||
| replacement | |||||
|
3
|
3
75120-74D60-5YU
MAT,RR FL FR
TA:6 PERSONS |
75120-74D60-5YU |
— | ||
|
4
|
4
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
5
|
5
75130-85750-4HM
Mat, rear floor rear
TYPE 1:TA:6 PERSONS |
75130-85750-4HM |
— | ||
| replacement | |||||
|
5
|
5
75130-85730-5YV
MAT,RR FL RR
TYPE 1:TA:6 PERSONS |
75130-85730-5YV |
— | ||
|
5
|
5
75130-85740-5HD
Mat, rear floor rear
TYPE 2:TA:6 PERSONS |
75130-85740-5HD |
— | ||
|
5
|
5
75130-85730-4HM
Mat, rear floor rear
TYPE 1:TA:4 PERSONS |
75130-85730-4HM |
— | ||
| replacement | |||||
|
5
|
5
75130-85730-5YV
MAT,RR FL RR
TYPE 1:TA:4 PERSONS |
75130-85730-5YV |
— | ||
|
5
|
5
75130-85730-5HD
Mat, rear floor rear
TYPE 2:TA:4 PERSONS |
75130-85730-5HD |
— | ||
| replacement | |||||
|
5
|
5
75130-85730-5YV
MAT,RR FL RR
TYPE 2:TA:4 PERSONS |
75130-85730-5YV |
— | ||
|
6
|
6
09410-00073-000 HOOKTA:6 PERSONS |
09410-00073-000 |
from US $2.24 |
||
|
7
|
7
75551-85401-000
インシュレータ,フロントフロア
TA, <-75551-85400 |
75551-85401-000 |
— | ||
| replacement | |||||
|
7
|
7
75551-85211-000 INSULATOR,FR FLOORTA, <-75551-85400 |
75551-85211-000 |
US $38.40 |
||
|
7
|
7
75551-85201-000
Insulator, front floor
TA: |
75551-85201-000 |
— | ||
| replacement | |||||
|
7
|
7
75551-85211-000 INSULATOR,FR FLOORTA: |
75551-85211-000 |
US $38.40 |
||
|
7
|
7
75551-85221-000
Insulator, front floor
Finland, Switzerland |
75551-85221-000 |
— | ||
| replacement | |||||
|
7
|
7
75551-85211-000 INSULATOR,FR FLOORFinland, Switzerland |
75551-85211-000 |
US $38.40 |
||
|
8
|
8
75230-85500-000 INSULATOR,ENG ROOM CTRTA |
75230-85500-000 |
US $16.56 |
||
|
8
|
8
75230-85700-000
Insl, angine room ctr member
, , Finland, Norway, Switzerland, 2,,5, Italy, Austria |
75230-85700-000 |
— | ||
| replacement | |||||
|
8
|
8
75230-85500-000 INSULATOR,ENG ROOM CTR, , Finland, Norway, Switzerland, 2,,5, Italy, Austria |
75230-85500-000 |
US $16.56 |
||
|
9
|
9
01107-06123-000
Bolt 6x1x16
TA:, Finland, Switzerland, 2 |
01107-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01500-0612A-000 BOLTTA:, Finland, Switzerland, 2 |
01500-0612A-000 |
from US $0.76 |
||
|
9
|
9
01500-06123-000
Bolt, front
TA:, Finland, Switzerland, 2 |
01500-06123-000 |
— | ||
|
10
|
10
09160-06028-000 WASHER(6.5X18X1)Washer TA:, Finland, Switzerland, 2 |
09160-06028-000 |
from US $0.96 |
||
|
11
|
11
99000-73371-000
サイレンサ,フロア,570X900
|
99000-73371-000 |
— | ||
| replacement | |||||
|
11
|
11
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
12
|
12
77111-78000-000
シール,ホール
|
77111-78000-000 |
— | ||
| replacement | |||||
|
12
|
12
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
13
|
13
75160-85740-4GC
Carpet, front floor
TYPE 1:LHD, TX |
75160-85740-4GC |
— | ||
|
13
|
13
75160-85740-5DG
Carpet, front floor
TYPE 2:LHD, TX |
75160-85740-5DG |
— | ||
|
13
|
13
75160-85700-4GC
Carpet, fr floor
TYPE 1:RHD, TX |
75160-85700-4GC |
— | ||
|
13
|
13
75160-85700-5DG
Carpet, front floor
TYPE 2:RHD, TX |
75160-85700-5DG |
— | ||
|
13
|
13
75160-85780-4GC
Carpet, fr floor
TYPE 1:, |
75160-85780-4GC |
— | ||
|
13
|
13
75160-85780-5DG
Carpet, fr floor
TYPE 2:, Ireland |
75160-85780-5DG |
— | ||
|
13
|
13
75160-85720-4GC
Carpet, front floor
TYPE 1:TX:Norway, Switzerland, Germany,,Holland, Austria, Israel, Iceland |
75160-85720-4GC |
— | ||
| replacement | |||||
|
13
|
13
75160-85720-5RY CARPET,FR FLTYPE 1:TX:Norway, Switzerland, Germany,,Holland, Austria, Israel, Iceland |
75160-85720-5RY |
US $137.26 |
||
|
13
|
13
75160-85720-5DG
Carpet, front floor
TYPE 2:TX:Finland, Switzerland, Belgium,,Germany, Holland, Denmark, Italy,,Austria, Israel, Iceland |
75160-85720-5DG |
— | ||
| replacement | |||||
|
13
|
13
75160-85720-5RY CARPET,FR FLTYPE 2:TX:Finland, Switzerland, Belgium,,Germany, Holland, Denmark, Italy,,Austria, Israel, Iceland |
75160-85720-5RY |
US $137.26 |
||
|
13
|
13
75160-85750-4GC
Carpet, front floor
TYPE 1:Saudi Arabia:W/HEATER |
75160-85750-4GC |
— | ||
|
14
|
14
75170-85450-4GC
Carpet, rr floor front
TYPE 1:TX:4 PERSONS |
75170-85450-4GC |
— | ||
|
14
|
14
75170-85450-5DG
Carpet, rear floor front
TYPE 2:TX:4 PERSONS |
75170-85450-5DG |
— | ||
|
14
|
14
75170-85710-4GC
Carpet, rear floor front
TYPE 1:TX:6 PERSONS |
75170-85710-4GC |
— | ||
|
14
|
14
75170-85710-5DG
Carpet, rear floor front
TYPE 2:TX:6 PERSONS |
75170-85710-5DG |
— | ||
|
14
|
14
75170-85720-4GC
Carpet, rear floor front
TYPE 1: |
75170-85720-4GC |
— | ||
|
14
|
14
75170-85720-5DG
Carpet, rear floor front
TYPE 2: |
75170-85720-5DG |
— | ||
|
14
|
14
75170-85730-4GC
Carpet, rear floor front
TYPE 1:Saudi Arabia |
75170-85730-4GC |
— | ||
| replacement | |||||
|
14
|
14
75170-85700-5RY CARPET,RR FL,FRTYPE 1:Saudi Arabia |
75170-85700-5RY |
US $163.39 |
||
|
14
|
14
75170-85730-5DG
Carpet, rear floor front
TYPE 2:Saudi Arabia |
75170-85730-5DG |
— | ||
| replacement | |||||
|
14
|
14
75170-85700-5RY CARPET,RR FL,FRTYPE 2:Saudi Arabia |
75170-85700-5RY |
US $163.39 |
||
|
14
|
14
75170-85700-4GC
Carpet, rr floor front
TYPE 1:United Arab Emirates |
75170-85700-4GC |
— | ||
| replacement | |||||
|
14
|
14
75170-85700-5RY CARPET,RR FL,FRTYPE 1:United Arab Emirates |
75170-85700-5RY |
US $163.39 |
||
|
14
|
14
75170-85700-5DG
Carpet, rr floor front
TYPE 2:United Arab Emirates |
75170-85700-5DG |
— | ||
| replacement | |||||
|
14
|
14
75170-85700-5RY CARPET,RR FL,FRTYPE 2:United Arab Emirates |
75170-85700-5RY |
US $163.39 |
||
|
15
|
15
75180-85720-4GC
Carpet, rr floor rear
TYPE 1:TX:4 PERSONS |
75180-85720-4GC |
— | ||
|
15
|
15
75180-85720-5DG
Carpet, rear floor rear
TYPE 2:TX:4 PERSONS |
75180-85720-5DG |
— | ||
|
15
|
15
75180-85750-4GC
Carpet, rear floor rear
TYPE 1:TX:6 PERSONS |
75180-85750-4GC |
— | ||
|
15
|
15
75180-85750-5DG
Carpet, rear floor rear
TYPE 2:TX:6 PERSONS |
75180-85750-5DG |
— | ||
|
15
|
15
75180-85760-4GC
Carpet, rear floor rear
TYPE 1: |
75180-85760-4GC |
— | ||
|
15
|
15
75180-85740-4GC
Carpet, rear floor rear
TYPE 1:United Arab Emirates |
75180-85740-4GC |
— | ||
| replacement | |||||
|
15
|
15
75180-85701-5RY
CARPET,RR FL,RR
TYPE 1:United Arab Emirates |
75180-85701-5RY |
— | ||
|
15
|
15
75180-85740-5DG
Carpet, rear floor rear
TYPE 2:United Arab Emirates |
75180-85740-5DG |
— | ||
| replacement | |||||
|
15
|
15
75180-85701-5RY
CARPET,RR FL,RR
TYPE 2:United Arab Emirates |
75180-85701-5RY |
— | ||
|
16
|
16
09410-00067-000 MALE |
09410-00067-000 |
US $2.88 |
||
|
17
|
17
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
18
|
18
75151-85501-000
ガーニッシュ,フロントサイド,ライト
TX, <-75151-85500 |
75151-85501-000 |
— | ||
| replacement | |||||
|
18
|
18
75151-65C00-000 GARNISH,FR CARPET SIDE,RTX, <-75151-85500 |
75151-65C00-000 |
US $26.40 |
||
|
19
|
19
75152-85501-000
ガーニッシュ,フロントサイド,レフト
TX, <-75152-85500 |
75152-85501-000 |
— | ||
| replacement | |||||
|
19
|
19
75152-65C00-000 GARNISH,FR CARPET SIDE,LTX, <-75152-85500 |
75152-65C00-000 |
US $26.40 |
||
|
20
|
20
75153-85500-000
ガーニッシュ,リヤ,サイド
TX:4 PERSONS |
75153-85500-000 |
— | ||
| replacement | |||||
|
20
|
20
75153-65C00-000
GARNISH,RR CARPET SIDE
TX:4 PERSONS |
75153-65C00-000 |
— | ||
|
20
|
20
75153-85700-000
ガーニッシュ,リヤカーペットサイド
TX:6 PERSONS |
75153-85700-000 |
— | ||
| replacement | |||||
|
20
|
20
75153-65C10-000 GARNISH,RR CARPET SIDETX:6 PERSONS |
75153-65C10-000 |
US $17.66 |
||
|
21
|
21
03141-05128-000
スクリュ
TX |
03141-05128-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0512A-000 SCREWScrew, belt cooling duct TX |
03141-0512A-000 |
from US $0.76 |
||
