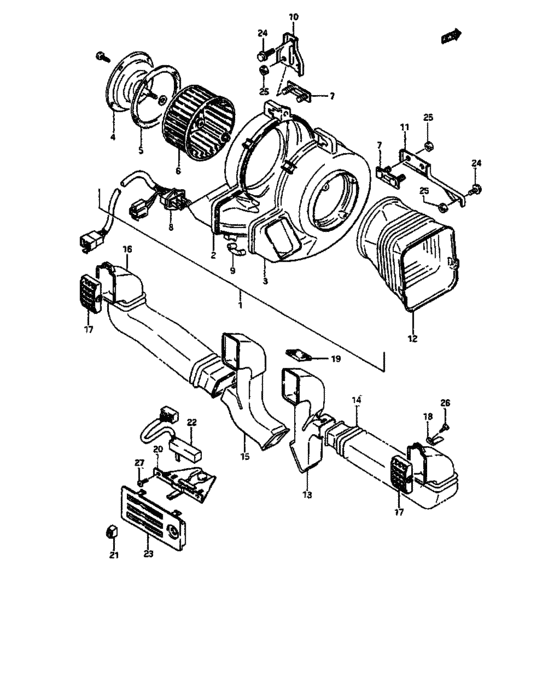

Scroll assy (LHD:N/HEATER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95470-8522C-000
Scroll assy, air con fan
|
95470-8522C-000 |
— | ||
|
2
|
2
95471-85200-000
Case, fan lh
TYPE 1 |
95471-85200-000 |
— | ||
|
2
|
2
95471-85220-000
Case,air con fan scroll,lh-r
TYPE 2 |
95471-85220-000 |
— | ||
|
3
|
3
95472-85200-000
Case, fan rh
TYPE 1 |
95472-85200-000 |
— | ||
|
3
|
3
95472-85220-000
CASE,AIR CON FAN SCROLL,L-L
TYPE 2 |
95472-85220-000 |
— | ||
|
4
|
4
74140-80D60-000
Motor assy
|
74140-80D60-000 |
— | ||
|
5
|
5
88153-79000-000 PACKING,MOTOR |
88153-79000-000 |
US $1.52 |
||
|
6
|
6
88140-78000-000 BLOWER ASSY |
88140-78000-000 |
US $20.61 |
||
|
7
|
7
95473-85200-000
Resistor, blower
|
95473-85200-000 |
— | ||
|
8
|
8
95474-85200-000
Plate, blower
|
95474-85200-000 |
— | ||
|
9
|
9
73616-83000-000 CLAMP,COWL VENTILATOR BOXTYPE 1 |
73616-83000-000 |
US $3.42 |
||
|
9
|
9
74316-85500-000 CLAMPClamp, case TYPE 2 |
74316-85500-000 |
US $1.82 |
||
|
10
|
10
95481-85200-000
Bracket,fan scroll,upper
|
95481-85200-000 |
— | ||
|
11
|
11
95482-85220-000
Bracket,fan scroll,lower
|
95482-85220-000 |
— | ||
|
12
|
12
95486-85210-000
Duct,evaporator
|
95486-85210-000 |
— | ||
|
13
|
13
74611-85200-000 DUCT,CTR VENT,R |
74611-85200-000 |
US $19.87 |
||
|
14
|
14
74613-85000-000 DUCT,SIDE VENT,NO,2 |
74613-85000-000 |
US $15.68 |
||
|
15
|
15
74614-85200-000 DUCT,CTR VENT,L |
74614-85200-000 |
US $17.66 |
||
|
16
|
16
74613-85200-000 DUCT,SIDE VENT,L |
74613-85200-000 |
US $19.87 |
||
|
17
|
17
73710-85000-281
Louver, vent
|
73710-85000-281 |
— | ||
| replacement | |||||
|
17
|
17
73710-85000-5PK LOUVER,VENT |
73710-85000-5PK |
US $10.72 |
||
|
18
|
18
74615-85000-000
クランプ,サイドベンチレータダクト
|
74615-85000-000 |
— | ||
| replacement | |||||
|
18
|
18
74615-85500-000 CLAMP,SIDE VENT DUCT |
74615-85500-000 |
US $2.58 |
||
|
19
|
19
74616-85000-000 TAPE,CENTER VENT DUCT |
74616-85000-000 |
US $1.62 |
||
|
20
|
20
74400-85200-000
LEVER ASSY,HTR CONT
|
74400-85200-000 |
— | ||
|
21
|
21
74431-85000-000
New Genuine Part
|
74431-85000-000 |
— | ||
| replacement | |||||
|
21
|
21
74417-60A00-000 KNOB,CONTROL LEVER |
74417-60A00-000 |
US $1.60 |
||
|
22
|
22
95593-85200-000
VOLUME,SLIDE
|
95593-85200-000 |
— | ||
|
23
|
23
74451-85220-000 PANEL,HEATER CONTROL |
74451-85220-000 |
US $11.37 |
||
|
24
|
24
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
25
|
25
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
25
|
25
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
25
|
25
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
03541-05166-000
スクリュ
|
03541-05166-000 |
— | ||
| replacement | |||||
|
26
|
26
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
27
|
27
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
