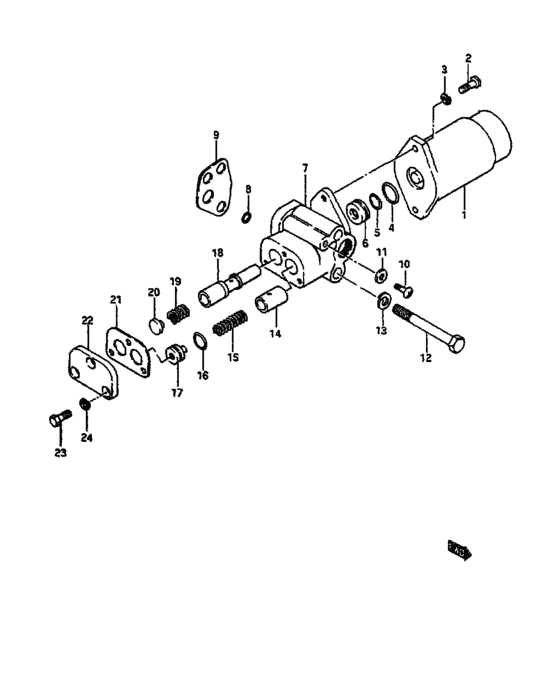

Solenoid valve (DUMP TRUCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97320-79340-000
Solenoid valve
|
97320-79340-000 |
— | ||
|
2
|
2
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
3
|
3
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
4
|
4
97381-79340-000
O ring
|
97381-79340-000 |
— | ||
|
5
|
5
97380-79340-000
Pent seal
|
97380-79340-000 |
— | ||
|
6
|
6
97379-79340-000
Metal valve
|
97379-79340-000 |
— | ||
|
7
|
7
97378-79340-000
Body, valve
|
97378-79340-000 |
— | ||
|
8
|
8
97382-79340-000
O ring
|
97382-79340-000 |
— | ||
|
9
|
9
97383-79340-000
Packing
|
97383-79340-000 |
— | ||
|
10
|
10
02112-06108-000
Screw
|
02112-06108-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.76 |
||
|
11
|
11
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
12
|
12
01107-08708-000
Bolt
|
01107-08708-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0870B-000 BOLT |
01500-0870B-000 |
from US $3.35 |
||
|
13
|
13
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
14
|
14
97387-79340-000
Piston
|
97387-79340-000 |
— | ||
|
15
|
15
97377-79340-000
Spring, valance
|
97377-79340-000 |
— | ||
|
16
|
16
09280-10005-000
O ring, gear case
|
09280-10005-000 |
— | ||
| replacement | |||||
|
16
|
16
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
17
|
17
97376-79340-000
Plug, seal
|
97376-79340-000 |
— | ||
|
18
|
18
97375-79340-000
Spool
|
97375-79340-000 |
— | ||
|
19
|
19
97374-79340-000
Spring, return
|
97374-79340-000 |
— | ||
|
20
|
20
97373-79340-000
Holder, spring
|
97373-79340-000 |
— | ||
|
21
|
21
97372-79340-000
Packing
|
97372-79340-000 |
— | ||
|
22
|
22
97371-79340-000
Cover
|
97371-79340-000 |
— | ||
|
23
|
23
01107-06207-000 Bolt |
01107-06207-000 |
US $18.70 |
||
| replacement | |||||
|
23
|
23
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
24
|
24
06321-21067-000
Lock washer
|
06321-21067-000 |
— | ||
