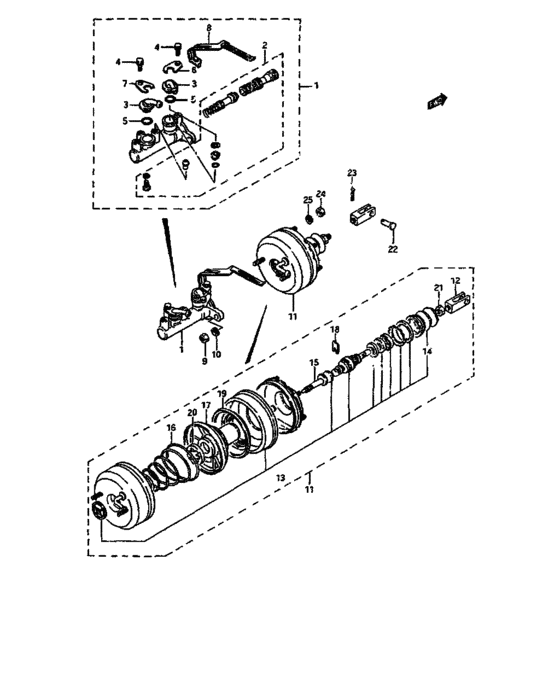

Brake master cylinder (TYPE 1) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-85211-000
Cylinder assy, brake master
<-51100-85210 |
51100-85211-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-85410-000
CYLINDER ASSY,BRAKE MASTER
<-51100-85210 |
51100-85410-000 |
— | ||
|
2
|
2
51100-85823-000 PISTON SET,BRAKE MASTER<-51100-85222 |
51100-85823-000 |
US $978.56 |
||
|
3
|
3
51190-85210-000 CONNECTOR,MASTER CYLINDER |
51190-85210-000 |
US $4.23 |
||
|
4
|
4
51192-85210-000
ボルト,コネクタ
|
51192-85210-000 |
— | ||
|
5
|
5
51193-85210-000
Oリング,マスタコネクタ
|
51193-85210-000 |
— | ||
|
6
|
6
51194-85210-000
ストッパ,マスタコネクタ
|
51194-85210-000 |
— | ||
|
7
|
7
51198-85210-000
ストッパ,マスタコネクタ
|
51198-85210-000 |
— | ||
|
8
|
8
51150-85210-000
Bracket, brake pipe
|
51150-85210-000 |
— | ||
|
9
|
9
08310-22086-000
Nut
|
08310-22086-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
9
|
9
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
10
|
10
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
51300-85210-000
Booster assy, brake master
|
51300-85210-000 |
— | ||
| replacement | |||||
|
11
|
11
51300-60C10-000
BOOSTER ASSY,BRAKE MASTER
|
51300-60C10-000 |
— | ||
|
12
|
12
51182-85210-000
クレビス,プッシュロッド
|
51182-85210-000 |
— | ||
| replacement | |||||
|
12
|
12
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
13
|
13
51300-85820-000
Bracket, brake pipe
|
51300-85820-000 |
— | ||
|
14
|
14
51330-84210-000
ブーツ,ブースタボディ
|
51330-84210-000 |
— | ||
|
15
|
15
51350-85210-000
Rod assy, booster piston
|
51350-85210-000 |
— | ||
|
16
|
16
51360-84210-000
スプリング,ブースタピストン
|
51360-84210-000 |
— | ||
|
17
|
17
51363-85210-000
Piston, booster
|
51363-85210-000 |
— | ||
|
18
|
18
51364-85210-000
Key, valve stopper
|
51364-85210-000 |
— | ||
|
19
|
19
51365-85210-000
Plate, piston
|
51365-85210-000 |
— | ||
|
20
|
20
51314-84210-000
ストッパ,ピストンロッド
|
51314-84210-000 |
— | ||
|
21
|
21
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
09200-10014-000
ピン
|
09200-10014-000 |
— | ||
|
23
|
23
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
23
|
23
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
24
|
24
08310-12083-000
ナット
|
08310-12083-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
25
|
25
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
25
|
25
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
