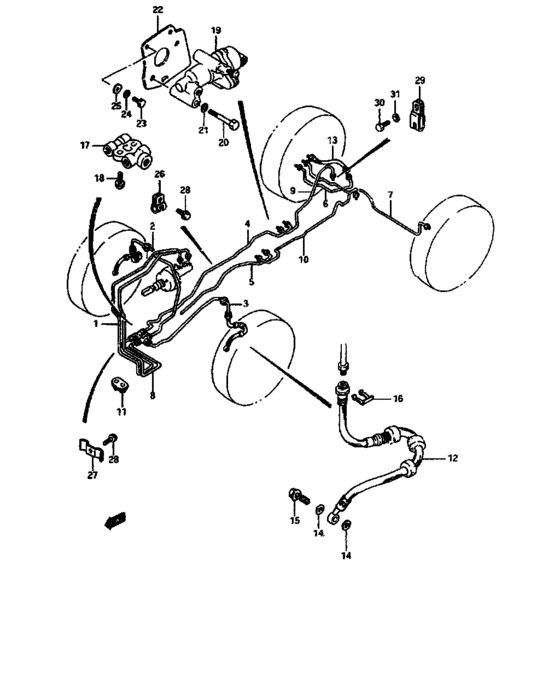

Brake piping (TYPE 1) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-85400-000
Pipe, brake no.1
|
51410-85400-000 |
— | ||
| replacement | |||||
|
1
|
1
51410-85401-000
Pipe,brake no.1
|
51410-85401-000 |
— | ||
|
2
|
2
51420-85400-000 PIPE,BRAKE NO.2 |
51420-85400-000 |
US $13.92 |
||
|
3
|
3
51430-85400-000 PIPE,BRAKE NO.3 |
51430-85400-000 |
US $15.20 |
||
|
4
|
4
51460-85210-000
Pipe, brake no.6
|
51460-85210-000 |
— | ||
|
5
|
5
51460-85710-000
Pipe, brake no.6
|
51460-85710-000 |
— | ||
|
6
|
6
51470-85200-000
PIPE,BRAKE NO.7
|
51470-85200-000 |
— | ||
|
7
|
7
51480-85200-000
PIPE,BRAKE NO.8
|
51480-85200-000 |
— | ||
|
8
|
8
51510-85400-000
パイプ,ブレーキ,NO.12
|
51510-85400-000 |
— | ||
| replacement | |||||
|
8
|
8
51510-85401-000
Pipe,brake no.12
|
51510-85401-000 |
— | ||
|
9
|
9
51350-85210-000
Rod assy, booster piston
|
51350-85210-000 |
— | ||
|
10
|
10
51350-85711-000
Pipe, brake no.15
STD ROOF |
51350-85711-000 |
— | ||
|
10
|
10
51350-85721-000
Pipe, brake no.15
HIGH ROOF |
51350-85721-000 |
— | ||
|
11
|
11
51751-85000-000 GROMMET,BRAKE PIPE |
51751-85000-000 |
US $2.24 |
||
|
12
|
12
51540-85752-000 HOSE,FR BRAKE FLEXIBLE |
51540-85752-000 |
US $54.10 |
||
|
13
|
13
51540-85050-000
ホース,リヤブレーキフレキシブル
|
51540-85050-000 |
— | ||
| replacement | |||||
|
13
|
13
51560-70F00-000 HOSE,RR BRAKE FLEXIBLE |
51560-70F00-000 |
US $29.99 |
||
|
14
|
14
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
15
|
15
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
16
|
16
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
16
|
16
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
17
|
17
51640-85030-000 JOINT,5WAY BRAKE |
51640-85030-000 |
US $45.60 |
||
|
18
|
18
01517-06206-000
Bolt 6x20
|
01517-06206-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
18
|
18
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
19
|
19
51950-85020-000
Valve assy, d.s.p
|
51950-85020-000 |
— | ||
|
20
|
20
01107-08703-000 Bolt |
01107-08703-000 |
US $1.79 |
||
| replacement | |||||
|
20
|
20
01500-0870B-000 BOLT |
01500-0870B-000 |
from US $3.35 |
||
|
21
|
21
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
21
|
21
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
22
|
22
51951-85000-000
Plate, d.s.p valve
|
51951-85000-000 |
— | ||
|
22
|
22
51951-85700-000
Plate, d.s.p valve
|
51951-85700-000 |
— | ||
|
23
|
23
01107-06103-000 Bolt 6x10 |
01107-06103-000 |
US $1.03 |
||
| replacement | |||||
|
23
|
23
01500-0610B-000 BOLTBolt |
01500-0610B-000 |
from US $0.80 |
||
|
24
|
24
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
25
|
25
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
26
|
26
09403-06401-000 CLAMP |
09403-06401-000 |
from US $2.08 |
||
|
27
|
27
09403-07312-000 CLAMP |
09403-07312-000 |
from US $0.92 |
||
|
28
|
28
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
29
|
29
09403-06404-000 CLAMP |
09403-06404-000 |
US $2.72 |
||
|
30
|
30
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
30
|
30
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
31
|
31
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
31
|
31
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
