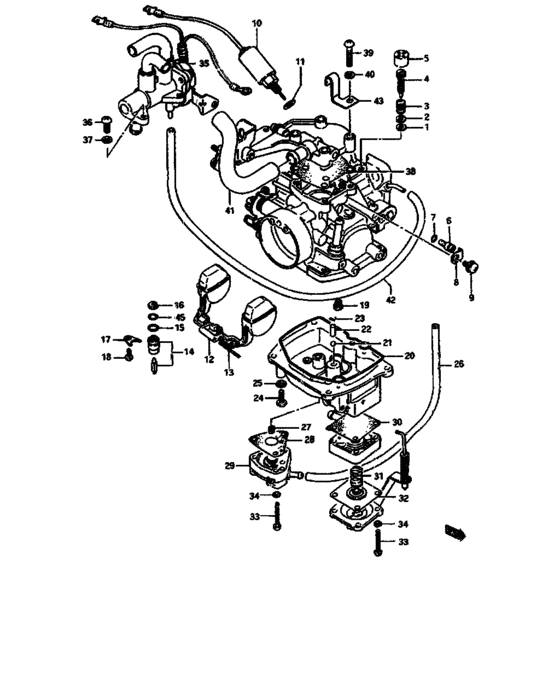

Carburetor (V:~DA21V-122698) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-85220-000
Carburetor assy
|
13200-85220-000 |
— | ||
|
1
|
1
13433-79110-000
PACKING
|
13433-79110-000 |
— | ||
|
2
|
2
13432-47090-000 WASHER |
13432-47090-000 |
from US $1.47 |
||
|
3
|
3
13271-96110-000 SPRINGSpring, air screw |
13271-96110-000 |
from US $2.65 |
||
|
4
|
4
13269-78210-000
Screw, pilot
|
13269-78210-000 |
— | ||
|
5
|
5
13699-77000-000
キャップ,アイドルリミッタ
|
13699-77000-000 |
— | ||
|
6
|
6
09492-47006-000 JET,PILOT |
09492-47006-000 |
US $8.98 |
||
|
7
|
7
13278-45010-000 O RINGO-ring |
13278-45010-000 |
from US $2.72 |
||
|
8
|
8
13398-78110-000 PLATE |
13398-78110-000 |
US $3.97 |
||
|
9
|
9
13399-78110-000
Screw
|
13399-78110-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-7510A-000 SCREW |
02112-7510A-000 |
from US $1.97 |
||
|
9
|
9
02112-75103-000
Screw
|
02112-75103-000 |
— | ||
|
10
|
10
13260-79721-000
Valve, solenoid
|
13260-79721-000 |
— | ||
| replacement | |||||
|
10
|
10
13260-797T0-000 SOLENOID SET |
13260-797T0-000 |
US $97.28 |
||
|
11
|
11
13249-31210-000
WASHER
|
13249-31210-000 |
— | ||
| replacement | |||||
|
11
|
11
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
12
|
12
13250-85200-000
Float
|
13250-85200-000 |
— | ||
| replacement | |||||
|
12
|
12
13250-852T0-000
FLOAT SET
|
13250-852T0-000 |
— | ||
|
13
|
13
13254-01010-000 PIN,FLOAT |
13254-01010-000 |
from US $1.52 |
||
|
14
|
14
13370-77100-000
Valve assy, needle
|
13370-77100-000 |
— | ||
| replacement | |||||
|
14
|
14
13370-60CT0-000 VALVE SET,NEEDLE |
13370-60CT0-000 |
US $48.80 |
||
|
15
|
15
13374-79110-000
O-RING
|
13374-79110-000 |
— | ||
|
16
|
16
13376-84110-000
13376-19f00
<-13376-65010 |
13376-84110-000 |
— | ||
| replacement | |||||
|
16
|
16
13376-19F00-000 FILTER<-13376-65010 |
13376-19F00-000 |
from US $5.47 |
||
|
17
|
17
13373-39110-000 PLATE |
13373-39110-000 |
from US $3.97 |
||
|
18
|
18
13602-04088-000 Screw |
13602-04088-000 |
US $1.33 |
||
| replacement | |||||
|
18
|
18
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
19
|
19
09491-21024-000
JET,MAIN
|
09491-21024-000 |
— | ||
|
20
|
20
13251-79110-000 O-RING |
13251-79110-000 |
US $9.12 |
||
|
21
|
21
13322-84000-000 BALL |
13322-84000-000 |
US $4.34 |
||
|
22
|
22
13321-85200-000
Weight
|
13321-85200-000 |
— | ||
| replacement | |||||
|
22
|
22
13240-852T0-000
WEIGHT SET,PUMP
|
13240-852T0-000 |
— | ||
|
23
|
23
13423-85000-000
クリップ
|
13423-85000-000 |
— | ||
|
24
|
24
02112-05166-000
Screw
|
02112-05166-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
24
|
24
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
25
|
25
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
25
|
25
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
26
|
26
13683-85200-000
ホース
|
13683-85200-000 |
— | ||
| replacements | |||||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
26
|
26
09358-35754-600
ホース,3.5X7.5X600
|
09358-35754-600 |
— | ||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
27
|
27
09492-65005-000 JET,AIR(65)Jet, pilot air (65) |
09492-65005-000 |
from US $12.32 |
||
|
28
|
28
13438-79000-000
Gasket
|
13438-79000-000 |
— | ||
|
29
|
29
13435-85200-000
Body assy, enrich
|
13435-85200-000 |
— | ||
|
30
|
30
13361-85200-000
Gasket
|
13361-85200-000 |
— | ||
|
31
|
31
13494-78420-000 SPRING,PUMP |
13494-78420-000 |
US $1.60 |
||
|
32
|
32
13491-79110-000
ダイヤフラム
|
13491-79110-000 |
— | ||
|
33
|
33
02112-04256-000
スクリュ
|
02112-04256-000 |
— | ||
| replacement | |||||
|
33
|
33
02112-0425B-000 SCREW |
02112-0425B-000 |
from US $0.80 |
||
|
34
|
34
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
34
|
34
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
35
|
35
13330-85200-000
Valve assy, bvv
|
13330-85200-000 |
— | ||
|
36
|
36
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
36
|
36
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
37
|
37
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
37
|
37
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
37
|
37
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
38
|
38
13362-85200-000
Gasket
|
13362-85200-000 |
— | ||
|
39
|
39
02112-05256-000
Screw
|
02112-05256-000 |
— | ||
| replacement | |||||
|
39
|
39
02112-0525A-000 SCREW |
02112-0525A-000 |
from US $0.80 |
||
|
40
|
40
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
40
|
40
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
40
|
40
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
41
|
41
13681-85200-000
Hose
|
13681-85200-000 |
— | ||
|
42
|
42
13682-85200-000
Hose
|
13682-85200-000 |
— | ||
| replacements | |||||
|
42
|
42
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
42
|
42
09358-35754-600
ホース,3.5X7.5X600
|
09358-35754-600 |
— | ||
|
42
|
42
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
43
|
43
13421-85200-000
Bracket assy
|
13421-85200-000 |
— | ||
|
44
|
44
13200-85890-000
Gasket set
NOT SHOWN |
13200-85890-000 |
— | ||
| replacement | |||||
|
44
|
44
13200-85891-000
GASKET SET,CARB
NOT SHOWN |
13200-85891-000 |
— | ||
|
45
|
45
13378-85200-000
SHIM T:0.2
OPT |
13378-85200-000 |
— | ||
|
45
|
45
13378-85210-000
SHIM T:0.3
OPT |
13378-85210-000 |
— | ||
|
45
|
45
13378-85220-000
SHIM T:0.4
OPT |
13378-85220-000 |
— | ||
|
45
|
45
13378-85230-000
Shim
OPT |
13378-85230-000 |
— | ||
