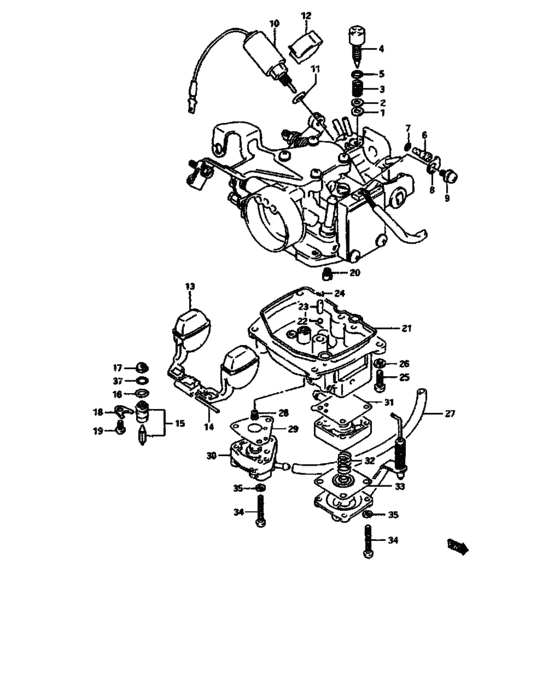

Carburetor (V:DA21V~122699~) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-85260-000
Carburetor assy
|
13200-85260-000 |
— | ||
|
1
|
1
13433-79110-000
PACKING
|
13433-79110-000 |
— | ||
|
2
|
2
13432-47090-000 WASHER |
13432-47090-000 |
from US $1.47 |
||
|
3
|
3
13268-51010-000 Throt stop scrSpring |
13268-51010-000 |
US $3.76 |
||
| replacement | |||||
|
3
|
3
13444-61A00-000 SPRING |
13444-61A00-000 |
from US $2.40 |
||
|
4
|
4
13379-85260-000
Screw, pilot
|
13379-85260-000 |
— | ||
|
5
|
5
13427-38300-000 WASHER |
13427-38300-000 |
from US $1.60 |
||
|
6
|
6
09492-47006-000 JET,PILOT |
09492-47006-000 |
US $8.98 |
||
|
7
|
7
13278-45010-000 O RINGO-ring |
13278-45010-000 |
from US $2.72 |
||
|
8
|
8
13398-78110-000 PLATE |
13398-78110-000 |
US $3.97 |
||
|
9
|
9
13399-78110-000
Screw
|
13399-78110-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-7510A-000 SCREW |
02112-7510A-000 |
from US $1.97 |
||
|
9
|
9
02112-75103-000
Screw
|
02112-75103-000 |
— | ||
|
10
|
10
13260-79721-000
Valve, solenoid
|
13260-79721-000 |
— | ||
| replacement | |||||
|
10
|
10
13260-797T0-000 SOLENOID SET |
13260-797T0-000 |
US $97.28 |
||
|
11
|
11
13249-31210-000
WASHER
|
13249-31210-000 |
— | ||
| replacement | |||||
|
11
|
11
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
12
|
12
13262-79720-000
Clip
|
13262-79720-000 |
— | ||
| replacement | |||||
|
12
|
12
13254-83090-000 CLAMP |
13254-83090-000 |
US $4.82 |
||
|
13
|
13
13250-85200-000
Float
|
13250-85200-000 |
— | ||
| replacement | |||||
|
13
|
13
13250-852T0-000
FLOAT SET
|
13250-852T0-000 |
— | ||
|
14
|
14
13254-01010-000 PIN,FLOAT |
13254-01010-000 |
from US $1.52 |
||
|
15
|
15
13370-77100-000
Valve assy, needle
|
13370-77100-000 |
— | ||
| replacement | |||||
|
15
|
15
13370-60CT0-000 VALVE SET,NEEDLE |
13370-60CT0-000 |
US $48.80 |
||
|
16
|
16
13374-79110-000
O-RING
|
13374-79110-000 |
— | ||
|
17
|
17
13376-84110-000
13376-19f00
|
13376-84110-000 |
— | ||
| replacement | |||||
|
17
|
17
13376-19F00-000 FILTER |
13376-19F00-000 |
from US $5.47 |
||
|
18
|
18
13373-39110-000 PLATE |
13373-39110-000 |
from US $3.97 |
||
|
19
|
19
13602-04088-000 Screw |
13602-04088-000 |
US $1.33 |
||
| replacement | |||||
|
19
|
19
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
20
|
20
09491-22020-000
Jet, main
|
09491-22020-000 |
— | ||
|
21
|
21
13251-79110-000 O-RING |
13251-79110-000 |
US $9.12 |
||
|
22
|
22
13322-84000-000 BALL |
13322-84000-000 |
US $4.34 |
||
|
23
|
23
13321-85200-000
Weight
|
13321-85200-000 |
— | ||
| replacement | |||||
|
23
|
23
13240-852T0-000
WEIGHT SET,PUMP
|
13240-852T0-000 |
— | ||
|
24
|
24
13423-85000-000
クリップ
|
13423-85000-000 |
— | ||
|
25
|
25
02112-05166-000
Screw
|
02112-05166-000 |
— | ||
| replacements | |||||
|
25
|
25
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
25
|
25
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
27
|
27
13683-85200-000
ホース
|
13683-85200-000 |
— | ||
| replacements | |||||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
27
|
27
09358-35754-600
ホース,3.5X7.5X600
|
09358-35754-600 |
— | ||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
09492-45027-000 JET,ENRICHMENT(55) |
09492-45027-000 |
US $8.46 |
||
|
29
|
29
13438-79000-000
Gasket
|
13438-79000-000 |
— | ||
|
30
|
30
13435-85200-000
Body assy, enrich
|
13435-85200-000 |
— | ||
|
31
|
31
13361-85200-000
Gasket
|
13361-85200-000 |
— | ||
|
32
|
32
13494-78420-000 SPRING,PUMP |
13494-78420-000 |
US $1.60 |
||
|
33
|
33
13491-79110-000
ダイヤフラム
|
13491-79110-000 |
— | ||
|
34
|
34
02112-04256-000
スクリュ
|
02112-04256-000 |
— | ||
| replacement | |||||
|
34
|
34
02112-0425B-000 SCREW |
02112-0425B-000 |
from US $0.80 |
||
|
35
|
35
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
35
|
35
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
36
|
36
13200-85850-000
Gasket set
NOT SHOWN |
13200-85850-000 |
— | ||
| replacement | |||||
|
36
|
36
13200-85891-000
GASKET SET,CARB
NOT SHOWN |
13200-85891-000 |
— | ||
|
37
|
37
13378-85200-000
SHIM T:0.2
OPT |
13378-85200-000 |
— | ||
|
37
|
37
13378-85210-000
SHIM T:0.3
OPT |
13378-85210-000 |
— | ||
|
37
|
37
13378-85220-000
SHIM T:0.4
OPT |
13378-85220-000 |
— | ||
|
37
|
37
13378-85250-000
Shim
OPT |
13378-85250-000 |
— | ||
