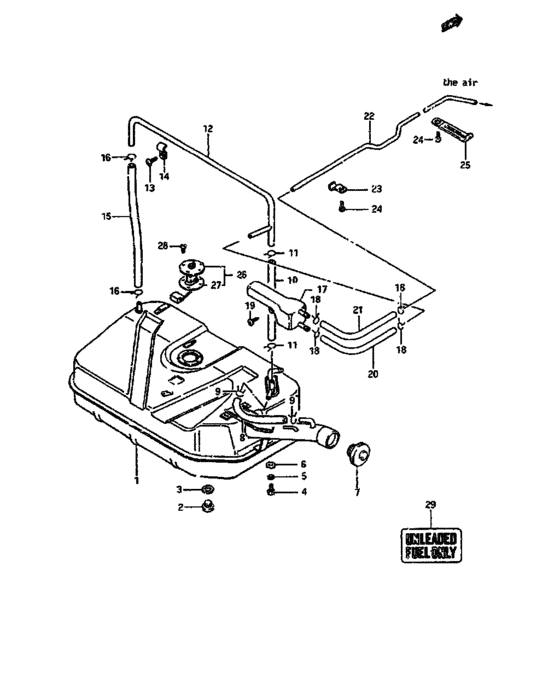

Fuel tank (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-85200-000
Tank assy, fuel
|
89101-85200-000 |
— | ||
|
2
|
2
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
3
|
3
09168-08022-000
ガスケット,8X17.5X1.5
|
09168-08022-000 |
— | ||
| replacement | |||||
|
3
|
3
09168-08033-000
Gasket,8x17.5x1.5
|
09168-08033-000 |
— | ||
|
4
|
4
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
5
|
5
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
7
|
7
89260-80001-000
キャップアッシ,フューエルフィラ
|
89260-80001-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-50C00-000 CAP ASSY,FUEL FILLER |
89260-50C00-000 |
from US $35.24 |
||
|
8
|
8
09343-09028-000
Joint hose, breather
L:380->290 |
09343-09028-000 |
— | ||
| replacements | |||||
|
8
|
8
09352-90133-600
HOSE(9X13X600)
L:380->290 |
09352-90133-600 |
— | ||
|
8
|
8
09352-90134-600 Hose(9X13X600)L:380->290 |
09352-90134-600 |
from US $11.68 |
||
|
9
|
9
09401-13301-000 CLIPClip, breather hose |
09401-13301-000 |
from US $2.56 |
||
|
10
|
10
09343-09028-000
Joint hose, breather
L:380->100 |
09343-09028-000 |
— | ||
| replacements | |||||
|
10
|
10
09352-90133-600
HOSE(9X13X600)
L:380->100 |
09352-90133-600 |
— | ||
|
10
|
10
09352-90134-600 Hose(9X13X600)L:380->100 |
09352-90134-600 |
from US $11.68 |
||
|
11
|
11
09401-13301-000 CLIPClip, breather hose |
09401-13301-000 |
from US $2.56 |
||
|
12
|
12
89250-85000-000 PIPE,FUEL TANK BREATHER |
89250-85000-000 |
US $17.60 |
||
|
13
|
13
03112-06129-000
New Genuine Part
|
03112-06129-000 |
— | ||
| replacement | |||||
|
13
|
13
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
14
|
14
09403-09306-000 CLAMP |
09403-09306-000 |
from US $1.12 |
||
|
15
|
15
09343-09017-000
Hose 9x14x700
L:700->165 |
09343-09017-000 |
— | ||
|
16
|
16
09401-14301-000 CLIPClip |
09401-14301-000 |
from US $2.13 |
||
|
17
|
17
85421-79000-000 SEPARATOR,FUEL |
85421-79000-000 |
US $18.95 |
||
|
18
|
18
09401-08301-000 CLIP |
09401-08301-000 |
from US $0.96 |
||
|
19
|
19
03141-06166-000
New Genuine Part
|
03141-06166-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
20
|
20
09352-50823-240
Hose
L:240->220 |
09352-50823-240 |
— | ||
| replacements | |||||
|
20
|
20
44420-44AR0-000 HOSE SET,FUELL:240->220 |
44420-44AR0-000 |
US $11.95 |
||
|
20
|
20
09352-50823-600
HOSE(5X8.2X600)
L:240->220 |
09352-50823-600 |
— | ||
|
20
|
20
09352-50005-600 Hose(5X8.2X600)L:240->220 |
09352-50005-600 |
US $4.10 |
||
|
21
|
21
09352-50823-240
Hose
|
09352-50823-240 |
— | ||
| replacements | |||||
|
21
|
21
44420-44AR0-000 HOSE SET,FUEL |
44420-44AR0-000 |
US $11.95 |
||
|
21
|
21
09352-50823-600
HOSE(5X8.2X600)
|
09352-50823-600 |
— | ||
|
21
|
21
09352-50005-600 Hose(5X8.2X600) |
09352-50005-600 |
US $4.10 |
||
|
22
|
22
09461-85200-000
Pipe, fuel tank evapo
|
09461-85200-000 |
— | ||
|
23
|
23
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
|
24
|
24
03111-06123-000
スクリュ
|
03111-06123-000 |
— | ||
| replacement | |||||
|
24
|
24
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
25
|
25
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
25
|
25
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
25
|
25
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
25
|
25
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
25
|
25
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
26
|
26
34810-79002-000 GAUGE ASSY,FUEL LEVEL |
34810-79002-000 |
US $39.20 |
||
|
27
|
27
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
28
|
28
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
|
29
|
29
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution |
86932-73060-000 |
US $1.52 |
||
