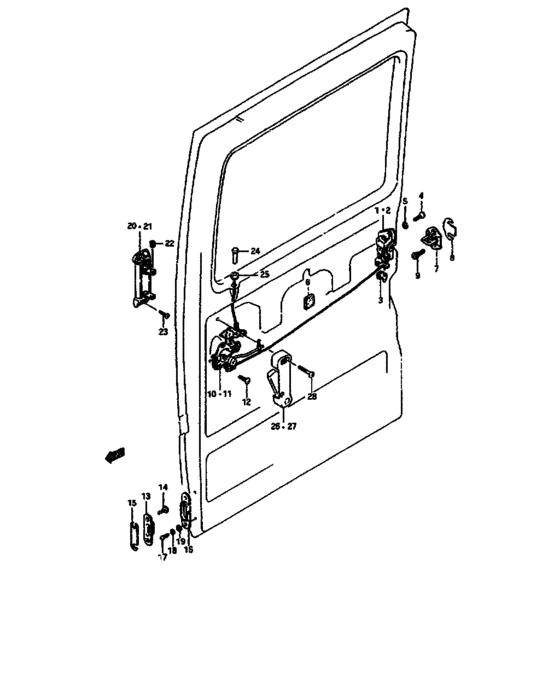

Rear door lock (V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-85501-000 LATCH ASSY,RR DR,R |
82301-85501-000 |
US $46 |
||
|
2
|
2
82302-85501-000 LATCH ASSY,RR DR,L |
82302-85501-000 |
US $46 |
||
|
3
|
3
82321-85500-000 HOLDER,ROD |
82321-85500-000 |
US $2.13 |
||
|
4
|
4
02132-06166-000
スクリュ
|
02132-06166-000 |
— | ||
| replacement | |||||
|
4
|
4
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
5
|
5
08323-31066-000
ワッシャ
|
08323-31066-000 |
— | ||
| replacement | |||||
|
5
|
5
08323-3106A-000 WASHER,LOCK |
08323-3106A-000 |
US $0.88 |
||
|
6
|
6
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
7
|
7
82630-85500-000 STRIKER,RR DOOR LATCH |
82630-85500-000 |
US $17.60 |
||
|
8
|
8
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
9
|
9
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
83140-85500-000
リンク,リヤドアインサイド,ライト
|
83140-85500-000 |
— | ||
| replacement | |||||
|
10
|
10
83140-70D00-000 LINK,RR DR INSIDE,R |
83140-70D00-000 |
US $39.20 |
||
|
11
|
11
83160-85500-000
リンク,リヤドアインサイド,レフト
|
83160-85500-000 |
— | ||
| replacement | |||||
|
11
|
11
83160-70D00-000 LINK,RR DR INSIDE,L |
83160-70D00-000 |
US $58.88 |
||
|
12
|
12
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
12
|
12
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
12
|
12
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
13
|
13
78231-79500-000 STOPPER,SIDE DR CNTNR |
78231-79500-000 |
US $4.80 |
||
|
14
|
14
02142-86106-000
Screw
|
02142-86106-000 |
— | ||
|
15
|
15
78281-79500-000
スペーサ,シャットストップ,フロント
|
78281-79500-000 |
— | ||
| replacement | |||||
|
15
|
15
82795-54F00-000 SPACER,RR DR STPR BODY |
82795-54F00-000 |
US $1.60 |
||
|
16
|
16
78232-79500-000 STOPPER,SIDE DOOR |
78232-79500-000 |
US $7.36 |
||
|
17
|
17
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
17
|
17
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
17
|
17
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
18
|
18
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
82830-85300-019
Handle, door outer rh
|
82830-85300-019 |
— | ||
|
21
|
21
82840-85500-019
ハンドル,リヤドア,レフト(ブラック)
|
82840-85500-019 |
— | ||
| replacement | |||||
|
21
|
21
82840-85500-5PK HANDLE,REAR DOOR OUT,L |
82840-85500-5PK |
US $40.80 |
||
|
22
|
22
82816-82001-000 SNAP,ADJUSTING JOINT |
82816-82001-000 |
US $1.60 |
||
|
23
|
23
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
23
|
23
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
24
|
24
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
25
|
25
82991-84000-000 CAP,DR INSIDE LOCK KNOB |
82991-84000-000 |
US $1.60 |
||
|
26
|
26
78430-79600-281
HANDLE,R
TYPE 1 |
78430-79600-281 |
— | ||
|
26
|
26
78430-79600-5CW
ハンドル,ライト(ブラウン)
TYPE 2 |
78430-79600-5CW |
— | ||
| replacement | |||||
|
26
|
26
78430-79600-281
HANDLE,R
TYPE 2 |
78430-79600-281 |
— | ||
|
27
|
27
78440-79600-281
HANDLE,L
TYPE 1 |
78440-79600-281 |
— | ||
|
27
|
27
78440-79600-5CW
ハンドル,レフト(ブラウン)
TYPE 2 |
78440-79600-5CW |
— | ||
| replacement | |||||
|
27
|
27
78440-79600-281
HANDLE,L
TYPE 2 |
78440-79600-281 |
— | ||
|
28
|
28
02142-06355-000
Screw
|
02142-06355-000 |
— | ||
| replacement | |||||
|
28
|
28
02142-0635A-000 SCREW |
02142-0635A-000 |
from US $0.80 |
||
