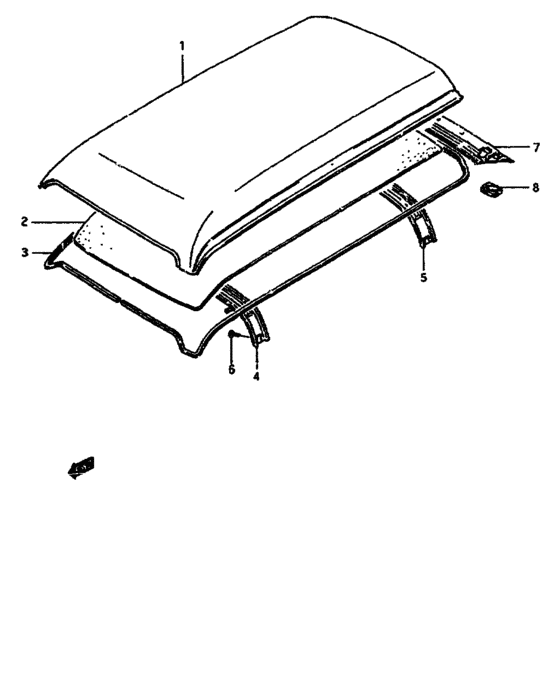

Roof panel (V:HIGH ROOF) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64211-85510-000
Panel,roof
|
64211-85510-000 |
— | ||
|
2
|
2
78111-85510-4GN
ヘッドライニング,ルーフ
|
78111-85510-4GN |
— | ||
| replacement | |||||
|
2
|
2
78111-85510-6VH
Headlining,roof
|
78111-85510-6VH |
— | ||
|
3
|
3
78141-85510-4GF
トリム,ルーフレール
|
78141-85510-4GF |
— | ||
|
4
|
4
78151-85510-25B
Reinf, roof front
|
78151-85510-25B |
— | ||
| replacement | |||||
|
4
|
4
78151-85510-000 REINFORCEMENT,ROOF FR |
78151-85510-000 |
US $42.69 |
||
|
5
|
5
78155-85710-25B
Reinf, roof rear
|
78155-85710-25B |
— | ||
| replacement | |||||
|
5
|
5
78155-85710-000 REINFORCEMENT,ROOF RR |
78155-85710-000 |
US $37.90 |
||
|
6
|
6
02142-06088-000
Screw 6 x 8
|
02142-06088-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-06087-000 SCREW |
02142-06087-000 |
from US $0.77 |
||
|
7
|
7
64600-85531-000
パネルアッシ,ルーフバック
|
64600-85531-000 |
— | ||
| replacement | |||||
|
7
|
7
64600-85511-000
Panel assy,roof back
|
64600-85511-000 |
— | ||
|
8
|
8
78171-85500-000
CAP,BACK DR HINGE HOLE
|
78171-85500-000 |
— | ||
