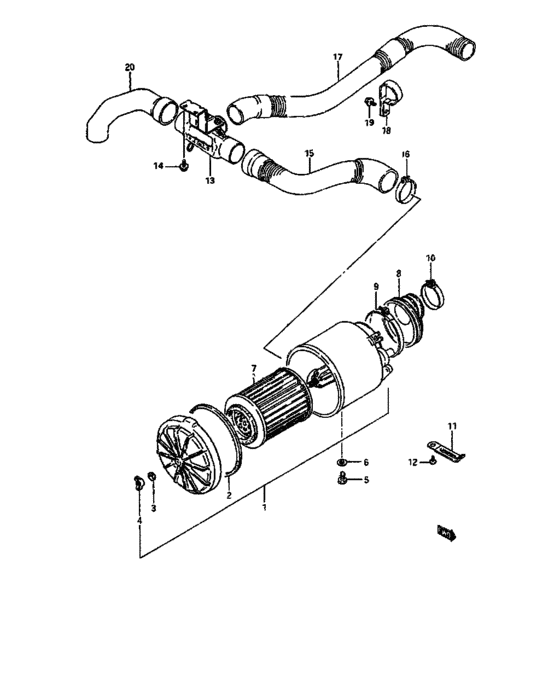

Air cleaner (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-85210-000
Case assy, air cleaner
|
13701-85210-000 |
— | ||
|
2
|
2
13772-77300-000 GASKET,AIR CLEANER CAP |
13772-77300-000 |
US $4.56 |
||
|
3
|
3
08322-11066-000
E ring
|
08322-11066-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
08317-12066-000
Nut
|
08317-12066-000 |
— | ||
| replacement | |||||
|
4
|
4
08317-1206A-000 NUT |
08317-1206A-000 |
from US $1.06 |
||
|
5
|
5
01107-08123-000 ボルト |
01107-08123-000 |
US $1.23 |
||
| replacement | |||||
|
5
|
5
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
6
|
6
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
6
|
6
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
6
|
6
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
7
|
7
13780-79201-000 ELEMENT,AIR CLEANER |
13780-79201-000 |
US $30.40 |
||
|
8
|
8
13881-79100-000 BOOT,AIR CLEANER TO CARBURATOR |
13881-79100-000 |
US $6.23 |
||
|
9
|
9
09402-00303-000 CLAMP |
09402-00303-000 |
from US $4.99 |
||
|
10
|
10
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
11
|
11
09404-06413-000
Clamp throttle
|
09404-06413-000 |
— | ||
| replacements | |||||
|
11
|
11
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
11
|
11
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
12
|
12
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
12
|
12
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
13
|
13
13740-85200-000
Case assy,air valve
|
13740-85200-000 |
— | ||
|
14
|
14
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
15
|
15
13730-85200-000
Hose, valve to air cleaner
|
13730-85200-000 |
— | ||
|
16
|
16
09402-56309-000 CLAMP |
09402-56309-000 |
US $32 |
||
|
17
|
17
13840-85200-000
Hose, warm air
|
13840-85200-000 |
— | ||
| replacement | |||||
|
17
|
17
13840-85X52-000 HOSE,WARM AIR |
13840-85X52-000 |
US $46.37 |
||
|
18
|
18
09403-48401-000 CLAMP |
09403-48401-000 |
US $2.13 |
||
|
19
|
19
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
20
|
20
13871-85400-000
ジョイント,インレットツーエアバルブ
|
13871-85400-000 |
— | ||
