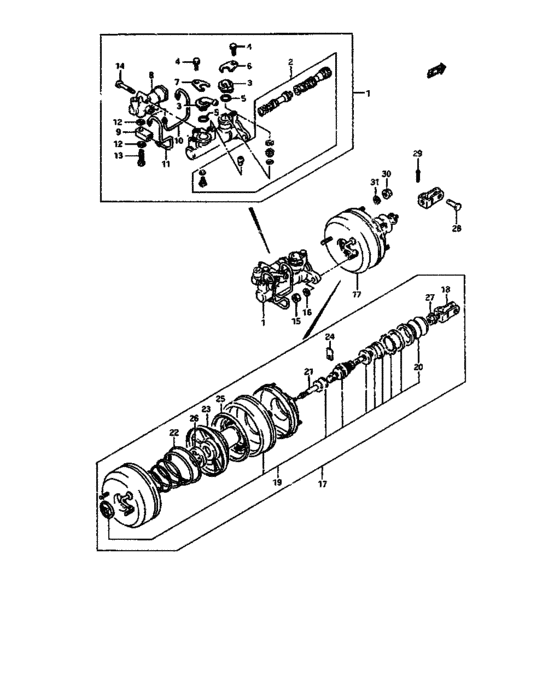

Brake master cylinder (TYPE 2) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-85260-000
Cylinder assy, brake master
|
51100-85260-000 |
— | ||
|
2
|
2
51100-85850-000
Piston set,brake master
|
51100-85850-000 |
— | ||
|
3
|
3
51190-85210-000 CONNECTOR,MASTER CYLINDER |
51190-85210-000 |
US $4.23 |
||
|
4
|
4
51192-85210-000
ボルト,コネクタ
|
51192-85210-000 |
— | ||
|
5
|
5
51193-85210-000
Oリング,マスタコネクタ
|
51193-85210-000 |
— | ||
|
6
|
6
51194-85210-000
ストッパ,マスタコネクタ
|
51194-85210-000 |
— | ||
|
7
|
7
51198-85210-000
ストッパ,マスタコネクタ
|
51198-85210-000 |
— | ||
|
8
|
8
51920-85000-000
Valve assy,p&b
|
51920-85000-000 |
— | ||
|
9
|
9
51191-85260-000
Connector, valve
|
51191-85260-000 |
— | ||
|
10
|
10
51490-85260-000
Pipe, secomdary
|
51490-85260-000 |
— | ||
|
11
|
11
51510-85260-000
Pipe, secomdary
|
51510-85260-000 |
— | ||
|
12
|
12
52475-52010-000
Gasket, connector
|
52475-52010-000 |
— | ||
|
13
|
13
51198-85260-000
Bolt, connector
|
51198-85260-000 |
— | ||
|
14
|
14
51172-85260-000
Bolt, master cylinder valve
|
51172-85260-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-06403-000 Bolt |
01570-06403-000 |
US $14.40 |
||
|
15
|
15
08310-22086-000
Nut
|
08310-22086-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
15
|
15
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
16
|
16
08321-31086-000
Lock washer
|
08321-31086-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
17
|
17
51300-85260-000
Booster assy, brake master
|
51300-85260-000 |
— | ||
| replacement | |||||
|
17
|
17
51300-60C10-000
BOOSTER ASSY,BRAKE MASTER
|
51300-60C10-000 |
— | ||
|
18
|
18
51182-85510-000
クレビス,プッシュロッド
|
51182-85510-000 |
— | ||
| replacement | |||||
|
18
|
18
51182-85520-000 CLEVIS,CYLINDER PUSH ROD |
51182-85520-000 |
US $10.27 |
||
|
19
|
19
51300-85820-000
Bracket, brake pipe
|
51300-85820-000 |
— | ||
|
20
|
20
51330-84210-000
ブーツ,ブースタボディ
|
51330-84210-000 |
— | ||
|
21
|
21
51350-85210-000
Rod assy, booster piston
|
51350-85210-000 |
— | ||
|
22
|
22
51360-50A20-000
シリンダアッシ,ブレーキマスタ
|
51360-50A20-000 |
— | ||
|
23
|
23
51363-85210-000
Piston, booster
|
51363-85210-000 |
— | ||
|
24
|
24
51364-85210-000
Key, valve stopper
|
51364-85210-000 |
— | ||
|
25
|
25
51365-85210-000
Plate, piston
|
51365-85210-000 |
— | ||
|
26
|
26
51314-84210-000
ストッパ,ピストンロッド
|
51314-84210-000 |
— | ||
|
27
|
27
08316-16106-000
Nut
|
08316-16106-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
28
|
28
09200-10017-000 PIN |
09200-10017-000 |
US $15.50 |
||
|
29
|
29
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
29
|
29
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
30
|
30
09159-08052-000
ナット
|
09159-08052-000 |
— | ||
| replacement | |||||
|
30
|
30
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
31
|
31
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
31
|
31
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
31
|
31
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
