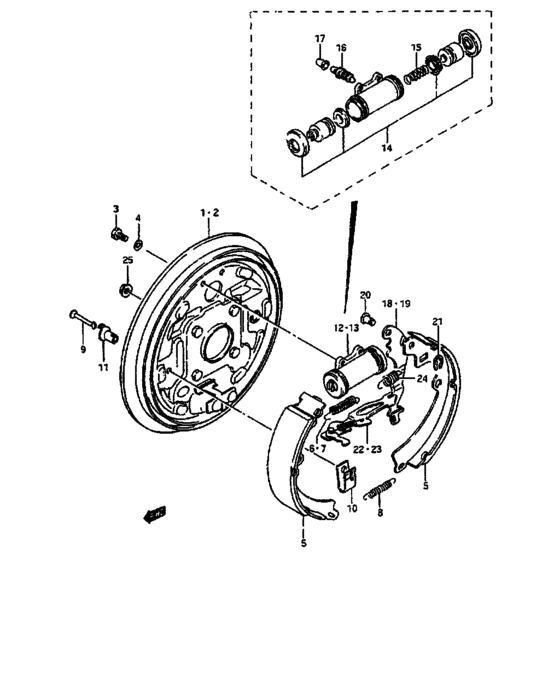

Rear wheel brake (TYPE 1) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-85202-000
Plate, backing rh
<-53110-85201 |
53110-85202-000 |
— | ||
|
2
|
2
53160-85202-000
Plate, backing lh
<-53160-85201 |
53160-85202-000 |
— | ||
| replacement | |||||
|
2
|
2
53160-85203-000
Plate,rr brake backing lh
<-53160-85201 |
53160-85203-000 |
— | ||
|
3
|
3
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
3
|
3
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
4
|
4
08321-31063-000 Lock washer |
08321-31063-000 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
53210-85250-000
シュー,ブレーキ
|
53210-85250-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-80870-000
SHOE SET,BRAKE
|
53200-80870-000 |
— | ||
|
6
|
6
53331-85200-000
SPRING,SHOE RETURN UPPER,R
|
53331-85200-000 |
— | ||
|
7
|
7
53332-85200-000 SPRING,SHOE RETURN LOWER,L |
53332-85200-000 |
US $4.45 |
||
|
8
|
8
53231-83041-000 SPRING,SHOE RETURN B<-53231-83040 |
53231-83041-000 |
US $2.72 |
||
|
9
|
9
52241-85400-000
ピン,シューホールドダウン
|
52241-85400-000 |
— | ||
| replacement | |||||
|
9
|
9
52241-73040-000 PIN,SHOE HOLD DOWN |
52241-73040-000 |
from US $1.92 |
||
|
10
|
10
52243-79241-000 スプリング,シューホールドダウン |
52243-79241-000 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
52243-70AA0-000 SPRING,SHOE CLAMP |
52243-70AA0-000 |
US $2.24 |
||
|
11
|
11
53741-60A00-000
LEVER,STOPPER
<-53741-85200 |
53741-60A00-000 |
— | ||
|
12
|
12
53401-85200-000 CYLINDER ASSY,REAR WHEEL,R |
53401-85200-000 |
US $78.75 |
||
|
13
|
13
53402-85200-000 CYLINDER ASSY,REAR WHEEL,L |
53402-85200-000 |
US $78.75 |
||
|
14
|
14
53400-85820-000
BOOT&CUP SET,RR WHEEL
|
53400-85820-000 |
— | ||
|
15
|
15
53441-80050-000 SPRING,WHEEL CYLINDER |
53441-80050-000 |
US $1.91 |
||
|
16
|
16
52473-83040-000
プラグ,ブリーダ
<-52473-85040 |
52473-83040-000 |
— | ||
| replacement | |||||
|
16
|
16
55151-78451-000 PLUG,BLEEDER<-52473-85040 |
55151-78451-000 |
from US $3.94 |
||
|
17
|
17
52474-85200-000
キャップ,ブリーダプラグ
<-52474-58040 |
52474-85200-000 |
— | ||
| replacements | |||||
|
17
|
17
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug <-52474-58040 |
55156-66310-000 |
from US $1.98 |
||
|
17
|
17
59122-18410-000
Cap, bleeder plug
<-52474-58040 |
59122-18410-000 |
— | ||
|
18
|
18
53721-85201-000 LEVER,PARKING BRAKE SHOE,R<-53721-85200 |
53721-85201-000 |
US $11.04 |
||
|
19
|
19
53726-85201-000
LEVER,PARKING BRAKE SHOE,L
<-53726-85200 |
53726-85201-000 |
— | ||
|
20
|
20
53731-85200-000 PIN,PARKING BRAKE LEVER |
53731-85200-000 |
US $1.92 |
||
|
21
|
21
53751-85200-000 CLIP,PARKING BRAKE LEVER |
53751-85200-000 |
US $1.92 |
||
|
22
|
22
53810-85200-000
ROD,PARKING BRAKE,R
|
53810-85200-000 |
— | ||
|
23
|
23
53860-85200-000 ROD,PARKING BRAKE,L |
53860-85200-000 |
US $83.20 |
||
|
24
|
24
53816-85200-000
SPRING,ROD
|
53816-85200-000 |
— | ||
|
25
|
25
08361-35083-000
Nut, exhaust pipe
|
08361-35083-000 |
— | ||
| replacement | |||||
|
25
|
25
08361-3508B-000 NUT |
08361-3508B-000 |
US $10.30 |
||
