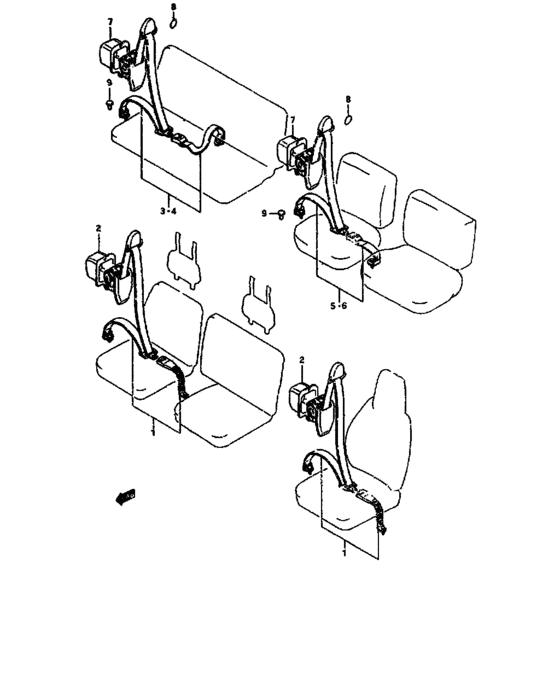

Seat belt (SEAT BELT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-85201-4FY
Belt assy, front
TYPE 1,3 POINT E.L.R TYPE |
84901-85201-4FY |
— | ||
| replacement | |||||
|
1
|
1
84901-85201-5FJ
Belt assy,front
TYPE 1,3 POINT E.L.R TYPE |
84901-85201-5FJ |
— | ||
|
1
|
1
84901-85201-382
Belt assy, front
TYPE 1,3 POINT E.L.R TYPE |
84901-85201-382 |
— | ||
| replacement | |||||
|
1
|
1
84901-85201-5FJ
Belt assy,front
TYPE 1,3 POINT E.L.R TYPE |
84901-85201-5FJ |
— | ||
|
1
|
1
84901-85201-500
Belt assy, front
TYPE 2,3 POINT E.L.R TYPE |
84901-85201-500 |
— | ||
|
2
|
2
84952-85000-000 PROTECTOR,FRONT ELR |
84952-85000-000 |
US $5.19 |
||
|
3
|
3
84904-85751-4FY
Belt assy, rear rh
TYPE 1:STD ROOF |
84904-85751-4FY |
— | ||
|
3
|
3
84904-85751-382
Belt assy, rear rh
TYPE 1:STD ROOF |
84904-85751-382 |
— | ||
|
3
|
3
84904-85751-5OD
Belt assy, rear rh
TYPE 2:STD ROOF |
84904-85751-5OD |
— | ||
|
4
|
4
84905-85751-4FY
Belt assy, rear lh
TYPE 1:STD ROOF |
84905-85751-4FY |
— | ||
|
4
|
4
84905-85751-382
Belt assy, rear lh
TYPE 1:STD ROOF |
84905-85751-382 |
— | ||
|
4
|
4
84905-85751-5OD
Belt assy, rear lh
TYPE 2:STD ROOF |
84905-85751-5OD |
— | ||
|
5
|
5
84904-85721-4FY
Belt assy, rear rh
TYPE 1:HIGH ROOF |
84904-85721-4FY |
— | ||
|
5
|
5
84904-85721-382
Belt assy, rear rh
TYPE 1:HIGH ROOF |
84904-85721-382 |
— | ||
|
5
|
5
84904-85721-5OD
Belt assy, rear rh
TYPE 2:HIGH ROOF |
84904-85721-5OD |
— | ||
|
6
|
6
84905-85721-4FY
Belt assy, rear lh
TYPE 1:HIGH ROOF |
84905-85721-4FY |
— | ||
|
6
|
6
84905-85721-382
Belt assy, rear lh
TYPE 1:HIGH ROOF |
84905-85721-382 |
— | ||
|
6
|
6
84905-85721-5OD
Belt assy, rear lh
TYPE 2:HIGH ROOF |
84905-85721-5OD |
— | ||
|
7
|
7
84952-85000-000 PROTECTOR,FRONT ELR |
84952-85000-000 |
US $5.19 |
||
|
8
|
8
67627-70000-000
シール,ホール
N/SEAT BELT |
67627-70000-000 |
— | ||
| replacement | |||||
|
8
|
8
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/SEAT BELT |
84761-50X50-000 |
US $6.72 |
||
|
9
|
9
09250-10017-000 PLUG(OD:22)N/SEAT BELT |
09250-10017-000 |
US $17.70 |
||
