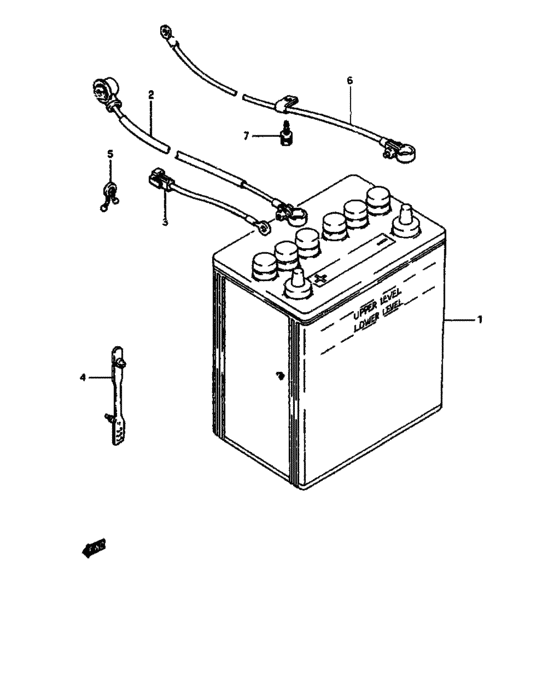

Battery (K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-80020-000
バッテリ,28B19RーMF,12V24AH/5HR,YB
|
33610-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
|
33610-750V1-000 |
— | ||
|
2
|
2
33810-85010-000
ケーブル,スターティングモータ
|
33810-85010-000 |
— | ||
| replacement | |||||
|
2
|
2
33810-74D00-000 CABLE,STARTING MOTOR |
33810-74D00-000 |
US $35.14 |
||
|
3
|
3
36740-85000-000 FUSE ASSY,MAIN |
36740-85000-000 |
from US $6.21 |
||
|
4
|
4
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
5
|
5
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
6
|
6
33850-85000-000
ケーブル,バッテリグランド
|
33850-85000-000 |
— | ||
| replacement | |||||
|
6
|
6
33850-50F50-000 CABLE,BATTERY GND |
33850-50F50-000 |
US $33.49 |
||
|
7
|
7
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
