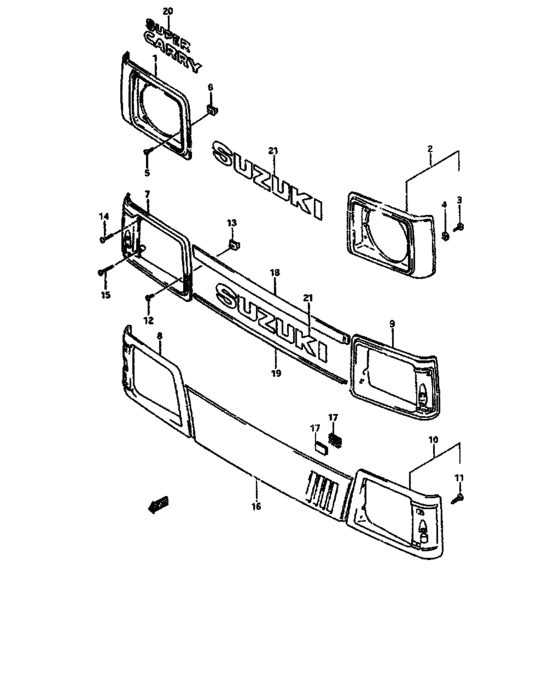

Front grille (FRONT GRILLE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-85000-291
Grille, headlamp rh
|
72110-85000-291 |
— | ||
| replacement | |||||
|
1
|
1
72111-85000-291
GRILLE,HEAD LAMP,R
|
72111-85000-291 |
— | ||
|
2
|
2
72120-85000-291
Grille, headlamp lh
|
72120-85000-291 |
— | ||
|
3
|
3
03141-06106-000
Screw 6 x 10
|
03141-06106-000 |
— | ||
| replacement | |||||
|
3
|
3
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
4
|
4
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
5
|
5
03212-05125-000
Screw
|
03212-05125-000 |
— | ||
| replacement | |||||
|
5
|
5
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
6
|
6
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
7
|
7
72111-85510-291
Grille, headlamp rh
TX |
72111-85510-291 |
— | ||
| replacement | |||||
|
7
|
7
72111-85510-000
Grille,headlamp,r
TX |
72111-85510-000 |
— | ||
|
8
|
8
72110-85540-2AF
グリル,ヘッドランプ,ライト(ホワイト)
TYPE 2:TX |
72110-85540-2AF |
— | ||
| replacement | |||||
|
8
|
8
72111-85540-000
Grille,headlamp,rh
TYPE 2:TX |
72111-85540-000 |
— | ||
|
8
|
8
72110-85540-2AG
グリル,ヘッドランプ,ライト(ブルー)
TYPE 2:TX |
72110-85540-2AG |
— | ||
| replacement | |||||
|
8
|
8
72111-85540-000
Grille,headlamp,rh
TYPE 2:TX |
72111-85540-000 |
— | ||
|
8
|
8
72110-85540-2GM
Grille, headlamp rh
TYPE 2:TX |
72110-85540-2GM |
— | ||
|
8
|
8
72110-85540-2GN
Grille, headlamp rh
TYPE 2:TX |
72110-85540-2GN |
— | ||
|
8
|
8
72110-85540-2AE
グリル,ヘッドランプ,ライト(グリーン)
TYPE 2:TX |
72110-85540-2AE |
— | ||
| replacement | |||||
|
8
|
8
72111-85540-000
Grille,headlamp,rh
TYPE 2:TX |
72111-85540-000 |
— | ||
|
8
|
8
72110-85540-2GP
グリル,ヘッドランプ,ライト(ブルー)
TYPE 2:TX |
72110-85540-2GP |
— | ||
| replacement | |||||
|
8
|
8
72111-85540-000
Grille,headlamp,rh
TYPE 2:TX |
72111-85540-000 |
— | ||
|
8
|
8
72110-85540-2AC
グリル,ヘッドランプ,ライト(シルバー)
TYPE 2:TX |
72110-85540-2AC |
— | ||
| replacement | |||||
|
8
|
8
72111-85540-000
Grille,headlamp,rh
TYPE 2:TX |
72111-85540-000 |
— | ||
|
8
|
8
72110-85540-2RR
Grille, headlamp rh
TYPE 2:TX |
72110-85540-2RR |
— | ||
|
8
|
8
72110-85540-2VN
グリル,ヘッドランプ,ライト(ブルーメタ)
TYPE 2:TX |
72110-85540-2VN |
— | ||
| replacement | |||||
|
8
|
8
72111-85540-000
Grille,headlamp,rh
TYPE 2:TX |
72111-85540-000 |
— | ||
|
8
|
8
72110-85540-2VP
Grille, headlamp rh
TYPE 2:TX |
72110-85540-2VP |
— | ||
|
9
|
9
72121-85540-2VP
Grille, headlamp lh
TX |
72121-85540-2VP |
— | ||
| replacement | |||||
|
9
|
9
72121-85540-000
GRILLE,HEAD LAMP,L
TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2AF
グリル,ヘッドランプ,レフト(ホワイト)
TYPE 2:TX |
72120-85540-2AF |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2AG
グリル,ヘッドランプ,レフト(ブルー)
TYPE 2:TX |
72120-85540-2AG |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2GM
Grille, headlamp lh
TYPE 2:TX |
72120-85540-2GM |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2GN
Grille, headlamp lh
TYPE 2:TX |
72120-85540-2GN |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2AE
グリル,ヘッドランプ,レフト(グリーン)
TYPE 2:TX |
72120-85540-2AE |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2GP
グリル,ヘッドランプ,レフト(ブルー)
TYPE 2:TX |
72120-85540-2GP |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2AC
グリル,ヘッドランプ,レフト(シルバー)
TYPE 2:TX |
72120-85540-2AC |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2RR
Grille, headlamp lh
TYPE 2:TX |
72120-85540-2RR |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2VN
グリル,ヘッドランプ,レフト(ブルーメタ)
TYPE 2:TX |
72120-85540-2VN |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
10
|
10
72120-85540-2VP
Grille, headlamp lh
TYPE 2:TX |
72120-85540-2VP |
— | ||
| replacement | |||||
|
10
|
10
72121-85540-000
GRILLE,HEAD LAMP,L
TYPE 2:TX |
72121-85540-000 |
— | ||
|
11
|
11
03141-06106-000
Screw 6 x 10
TX |
03141-06106-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0610A-000 SCREWTX |
03141-0610A-000 |
US $0.80 |
||
|
12
|
12
03232-05125-000
スクリュ
TX |
03232-05125-000 |
— | ||
| replacement | |||||
|
12
|
12
03222-0512B-000 SCREWTX |
03222-0512B-000 |
US $0.80 |
||
|
13
|
13
09148-05003-000 NUTTX |
09148-05003-000 |
US $1.28 |
||
|
14
|
14
02112-05308-000
Screw
TX |
02112-05308-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0530A-000 SCREWTX |
02112-0530A-000 |
from US $0.76 |
||
|
15
|
15
02112-05458-000
Screw
TX |
02112-05458-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-05457-000 SCREWTX |
02112-05457-000 |
from US $0.77 |
||
|
16
|
16
72141-85500-38C
グリル,フロント,センタ(ブルー)
TX |
72141-85500-38C |
— | ||
|
17
|
17
72142-85500-000
Tape, front center grille
DA21V-122699~ |
72142-85500-000 |
— | ||
|
18
|
18
72151-85001-019
モールディング,フロントパネル,アッパ
TX |
72151-85001-019 |
— | ||
|
19
|
19
72161-85501-019 MOLDING,FR PANEL LWRTX |
72161-85501-019 |
US $43.20 |
||
|
20
|
20
77741-85201-69L
Emblem, supper carry
RED/BLACK,<-77741-85200-69L |
77741-85201-69L |
— | ||
| replacement | |||||
|
20
|
20
77741-62C00-69L
EMBLEM,SUPR CARRY
RED/BLACK,<-77741-85200-69L |
77741-62C00-69L |
— | ||
|
20
|
20
77741-85201-66P
Emblem, supper carry
RED/SILVER,<-77741-85200-66P |
77741-85201-66P |
— | ||
| replacement | |||||
|
20
|
20
77741-62C00-66P
EMBLEM,SUPER CARRY
RED/SILVER,<-77741-85200-66P |
77741-62C00-66P |
— | ||
|
21
|
21
77814-85201-000
Emblem, suzuki
<-77814-85200 |
77814-85201-000 |
— | ||
