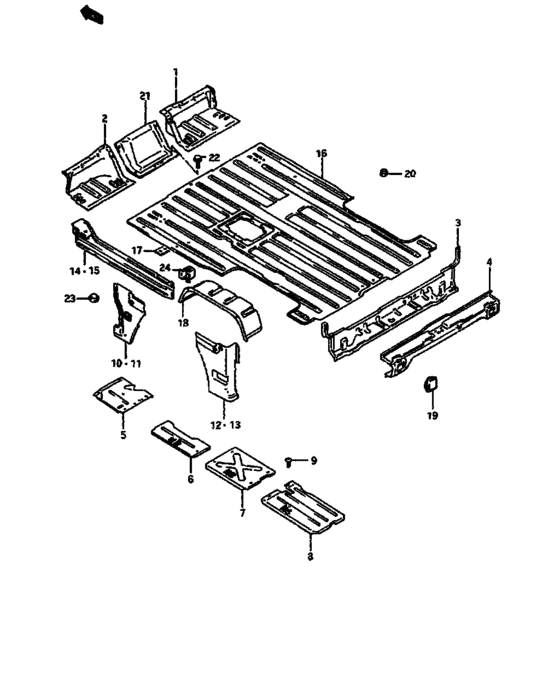

Rear floor (V:STD ROOF) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61721-85500-000
パネル,リヤフロアフロント,ライト
|
61721-85500-000 |
— | ||
| replacement | |||||
|
1
|
1
61721-75D00-000 PANEL,REAR FLOOR FR,R |
61721-75D00-000 |
US $69.55 |
||
|
2
|
2
61731-85450-000 PANEL,REAR FLOOR FR,L |
61731-85450-000 |
US $55.94 |
||
|
3
|
3
61850-85700-000
Panel, tail skrit innor
|
61850-85700-000 |
— | ||
| replacement | |||||
|
3
|
3
61850-67C00-000 PANEL,TAIL SKIRT INNER |
61850-67C00-000 |
US $108.93 |
||
|
4
|
4
59910-85500-000
パネル,テールスカート,アウタ
|
59910-85500-000 |
— | ||
| replacement | |||||
|
4
|
4
59910-85720-000 PANEL,TAIL SKIRT OUTER |
59910-85720-000 |
US $59.20 |
||
|
5
|
5
75511-85500-000
パネル,ヒートプロテクタ,NO.1
|
75511-85500-000 |
— | ||
|
6
|
6
75521-85500-000 PANEL,HEAT PROTECTOR NO.2 |
75521-85500-000 |
US $11.84 |
||
|
7
|
7
75531-85501-000 PANEL,HEAT PROTECTOR NO.3<-75531-85500 |
75531-85501-000 |
US $25.60 |
||
|
8
|
8
75541-85500-000
PANEL,HEAT PROTECTOR NO.4
|
75541-85500-000 |
— | ||
| replacement | |||||
|
8
|
8
75541-85501-000 PANEL,HEAT PROTECTOR NO.4 |
75541-85501-000 |
US $25.60 |
||
|
9
|
9
03241-06126-000
New Genuine Part
|
03241-06126-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
10
|
10
61810-85700-000
LOCKER,RR FL SIDE FR,R
|
61810-85700-000 |
— | ||
|
11
|
11
61820-85700-000
LOCKER,RR FL SIDE FR,L
|
61820-85700-000 |
— | ||
|
12
|
12
61831-85500-000
ロッカ,リヤフロアサイドリヤ,ライト
|
61831-85500-000 |
— | ||
| replacements | |||||
|
12
|
12
61830-85740-000 LOCKER,RR FL SIDE RR,R |
61830-85740-000 |
US $30.40 |
||
|
12
|
12
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
13
|
13
61841-85500-000
ロッカ,リヤフロアサイドリヤ,レフト
|
61841-85500-000 |
— | ||
| replacement | |||||
|
13
|
13
61841-85720-000 LOCKER,RR FL SIDE RR,L |
61841-85720-000 |
US $28.80 |
||
|
14
|
14
61870-85740-000 RAIL,SLIDE LWR,R |
61870-85740-000 |
US $123.28 |
||
|
15
|
15
61880-85740-000 RAIL,SLIDE LWR,L |
61880-85740-000 |
US $123.28 |
||
|
16
|
16
61751-85720-000
Panel, rear floor low
|
61751-85720-000 |
— | ||
| replacement | |||||
|
16
|
16
61751-85500-000 PANEL,REAR FLOOR LOW |
61751-85500-000 |
US $422.56 |
||
|
17
|
17
61761-85500-000 BRACKET,RR SEAT FR LEG |
61761-85500-000 |
US $5.92 |
||
|
18
|
18
61771-85500-000 PANEL,RR WHEEL HSG |
61771-85500-000 |
US $37.90 |
||
|
19
|
19
75441-85500-000 CAP,TAIL SKIRT OUTER |
75441-85500-000 |
US $3.46 |
||
|
20
|
20
09250-15007-000
Plug
|
09250-15007-000 |
— | ||
| replacement | |||||
|
20
|
20
09250-15010-000 PLUG(OD:19)Plug, silencer cover |
09250-15010-000 |
from US $1.60 |
||
|
21
|
21
75402-85450-000
Lid assy, engine service
|
75402-85450-000 |
— | ||
|
22
|
22
01517-08206-000
Bolt
|
01517-08206-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
22
|
22
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
23
|
23
09250-14008-000 CAP(OD:17.3) |
09250-14008-000 |
US $1.12 |
||
|
24
|
24
59931-85700-000
Hanger, muffler catalyst
|
59931-85700-000 |
— | ||
