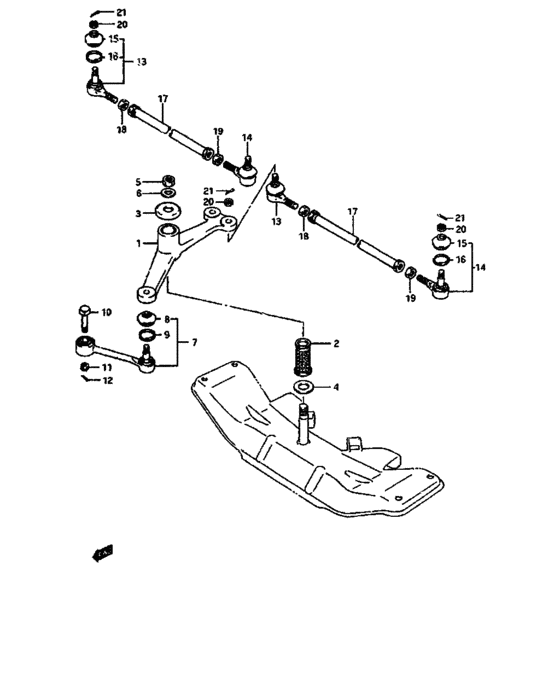

Steering link (STEERING LINK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48700-85811-000
アームセット,インタメジェート
<-48700-85810 |
48700-85811-000 |
— | ||
| replacement | |||||
|
1
|
1
48700-85812-000
ARM SET,INTERMEDIATE
<-48700-85810 |
48700-85812-000 |
— | ||
|
2
|
2
48750-85000-000
ブッシング,インタメジェート
|
48750-85000-000 |
— | ||
| replacement | |||||
|
2
|
2
48750-85001-000 BUSHING,INTERMEDIATE |
48750-85001-000 |
US $26.60 |
||
|
3
|
3
48771-85000-000
カバー,ダスト
|
48771-85000-000 |
— | ||
| replacement | |||||
|
3
|
3
48771-85001-000 COVER,INTERMEDIATE ARM DUST |
48771-85001-000 |
US $2.24 |
||
|
4
|
4
09160-20057-000 WASHER(20.2X42X2.3) |
09160-20057-000 |
US $1.92 |
||
|
5
|
5
08310-11183-000
ナット
|
08310-11183-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-0018A-000 NUT |
08310-0018A-000 |
from US $1.28 |
||
|
6
|
6
09162-18002-000 WASHER,LOCK |
09162-18002-000 |
US $1.60 |
||
|
7
|
7
48900-85000-000
ロッドアッシ,ドラッグ
|
48900-85000-000 |
— | ||
| replacement | |||||
|
7
|
7
48900-50F01-000 ROD ASSY,STRG DRAG |
48900-50F01-000 |
US $108.68 |
||
|
8
|
8
48819-82000-000
BOOT SET,TIE ROD END
|
48819-82000-000 |
— | ||
| replacements | |||||
|
8
|
8
48819-82001-000
Boot Set,tie Rod End
|
48819-82001-000 |
— | ||
|
8
|
8
48800-82810-000 Boot Set,tie Rod End |
48800-82810-000 |
US $23.20 |
||
|
9
|
9
09401-23401-000
Clip
|
09401-23401-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-23402-000 CLIP |
09401-23402-000 |
US $1.76 |
||
|
10
|
10
09101-12009-000 BOLT(12X49) |
09101-12009-000 |
US $4.32 |
||
|
11
|
11
08314-41123-000
Nut
|
08314-41123-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
04111-30206-000
コッタピン
|
04111-30206-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.76 |
||
|
13
|
13
48810-79000-000 END,TIE-ROD,R |
48810-79000-000 |
US $59.20 |
||
|
14
|
14
48820-79000-000 END,TIE-ROD,L |
48820-79000-000 |
US $59.20 |
||
|
15
|
15
48819-82000-000
BOOT SET,TIE ROD END
|
48819-82000-000 |
— | ||
| replacements | |||||
|
15
|
15
48819-82001-000
Boot Set,tie Rod End
|
48819-82001-000 |
— | ||
|
15
|
15
48800-82810-000 Boot Set,tie Rod End |
48800-82810-000 |
US $23.20 |
||
|
16
|
16
09401-23401-000
Clip
|
09401-23401-000 |
— | ||
| replacement | |||||
|
16
|
16
09401-23402-000 CLIP |
09401-23402-000 |
US $1.76 |
||
|
17
|
17
48831-79000-000 TIE-ROD,STEERING |
48831-79000-000 |
US $31.20 |
||
|
18
|
18
09140-14026-000
ナット
|
09140-14026-000 |
— | ||
| replacement | |||||
|
18
|
18
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
19
|
19
09140-14027-000 NUT |
09140-14027-000 |
US $1.60 |
||
|
20
|
20
08314-41123-000
Nut
|
08314-41123-000 |
— | ||
| replacement | |||||
|
20
|
20
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
21
|
21
04111-30206-000
コッタピン
|
04111-30206-000 |
— | ||
| replacement | |||||
|
21
|
21
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.76 |
||
