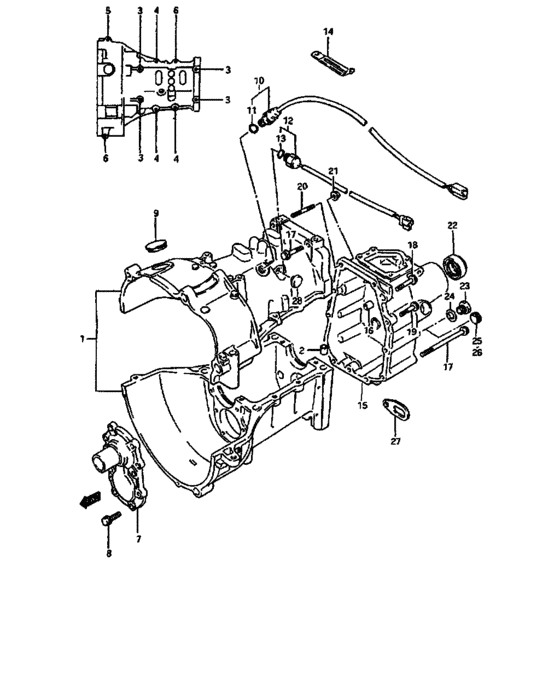

Transmission case (TRANSMISSION CASE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-85200-000
CASE ASSY,T/M
|
24700-85200-000 |
— | ||
|
1
|
1
24700-85210-000
Case assy, transmission
DA21V-122699~ |
24700-85210-000 |
— | ||
|
2
|
2
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
2
|
2
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
09103-08131-000 BOLT(8X120) |
09103-08131-000 |
US $2.24 |
||
|
4
|
4
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01517-08403-000
ボルト
|
01517-08403-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
6
|
6
01537-08803-000 ボルト |
01537-08803-000 |
US $2.03 |
||
| replacements | |||||
|
6
|
6
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
6
|
6
01550-0880A-000 BOLT |
01550-0880A-000 |
from US $1.76 |
||
|
7
|
7
24741-83001-000 RETAINER,INPUT SFT BEARING |
24741-83001-000 |
US $45.60 |
||
|
8
|
8
09103-08130-000
BOLT(8X25)
|
09103-08130-000 |
— | ||
|
9
|
9
09250-30003-000 CAP(OD:36) |
09250-30003-000 |
from US $2.08 |
||
|
10
|
10
37610-79502-000
スイッチアッシ,バックアップランプ
|
37610-79502-000 |
— | ||
| replacement | |||||
|
10
|
10
37610-80023-000 SWITCH ASSY,BACK UP LAMP |
37610-80023-000 |
US $23.20 |
||
|
11
|
11
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
12
|
12
37710-85010-000
SWITCH ASSY,NEUTRAL
DA21V-122699~ |
37710-85010-000 |
— | ||
|
13
|
13
09280-11002-000 O RING(D:1.9,ID:11.4)DA21V-122699~ |
09280-11002-000 |
from US $0.88 |
||
|
14
|
14
09404-08403-000
Clamp
|
09404-08403-000 |
— | ||
| replacement | |||||
|
14
|
14
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
15
|
15
24770-85250-000
Case, extension
TYPE 1,->24770-85251,USED WITH 09246-16009,AND 09246-16010 |
24770-85250-000 |
— | ||
| replacements | |||||
|
15
|
15
09164-20008-000 WASHERTYPE 1,->24770-85251,USED WITH 09246-16009,AND 09246-16010 |
09164-20008-000 |
from US $1.52 |
||
|
15
|
15
09246-16010-000 PLUGTYPE 1,->24770-85251,USED WITH 09246-16009,AND 09246-16010 |
09246-16010-000 |
US $4.46 |
||
|
15
|
15
24770-85253-000
CASE ASSY,EXTENSION
TYPE 1,->24770-85251,USED WITH 09246-16009,AND 09246-16010 |
24770-85253-000 |
— | ||
|
15
|
15
09246-16009-000
プラグ
TYPE 1,->24770-85251,USED WITH 09246-16009,AND 09246-16010 |
09246-16009-000 |
— | ||
|
15
|
15
09246-16021-000 Plug,t/m Oil DrainTYPE 1,->24770-85251,USED WITH 09246-16009,AND 09246-16010 |
09246-16021-000 |
from US $4.01 |
||
|
15
|
15
24770-85251-000
Case, extension
TYPE 2 |
24770-85251-000 |
— | ||
| replacements | |||||
|
15
|
15
09164-20008-000 WASHERTYPE 2 |
09164-20008-000 |
from US $1.52 |
||
|
15
|
15
24770-85253-000
CASE ASSY,EXTENSION
TYPE 2 |
24770-85253-000 |
— | ||
|
16
|
16
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
16
|
16
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
17
|
17
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
17
|
17
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
18
|
18
01517-08403-000
ボルト
|
01517-08403-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
19
|
19
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
19
|
19
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
20
|
20
01421-08303-000
Stud m 8x1.25 x
|
01421-08303-000 |
— | ||
| replacement | |||||
|
20
|
20
01421-0830A-000 BOLT,STUD |
01421-0830A-000 |
from US $1.44 |
||
|
21
|
21
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
22
|
22
24780-83010-000 SEAL,EXTENSION CASE OIL<-24780-83000 |
24780-83010-000 |
from US $5.74 |
||
|
23
|
23
09247-18003-000 PLUGTYPE 1 |
09247-18003-000 |
US $1.76 |
||
|
24
|
24
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) TYPE 1 |
09160-18018-000 |
US $0.96 |
||
|
25
|
25
09246-16009-000
プラグ
TYPE 2 |
09246-16009-000 |
— | ||
|
26
|
26
09246-16010-000 PLUGTYPE 2 |
09246-16010-000 |
US $4.46 |
||
|
27
|
27
11851-85000-000
フック,エンジン
|
11851-85000-000 |
— | ||
| replacement | |||||
|
27
|
27
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
28
|
28
09250-10006-000 PLUG(OD:16)Plug, oil level gauge hole |
09250-10006-000 |
from US $1.67 |
||
