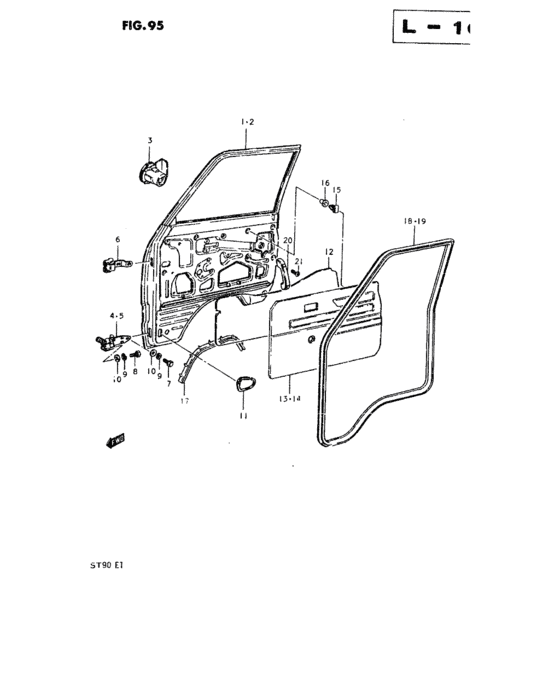

Front door panel (FRONT DOOR PANEL) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75001-79100-000
Panel assy,door rh
FROM 75001-79000 |
75001-79100-000 |
— | ||
|
1
|
1
75001-79120-000
Panel assy, door rh
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel,Iceland FROM 75001-79020 |
75001-79120-000 |
— | ||
|
2
|
2
75002-79100-000
Panel assy,door lh
FROM 75002-79000 |
75002-79100-000 |
— | ||
|
2
|
2
75002-79120-000
Panel assy, door lh
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel,Iceland FROM 75002-79020 |
75002-79120-000 |
— | ||
|
3
|
3
99000-79449-000 PLUG,KEY HOLE BLIND |
99000-79449-000 |
US $9.53 |
||
|
4
|
4
76110-79010-000 HINGE,FR DOOR LWR,RFROM 76110-79000 |
76110-79010-000 |
US $34.04 |
||
|
5
|
5
76160-79010-000 HINGE,FR DOOR LWR,LFROM 76160-79000 |
76160-79010-000 |
US $34.04 |
||
|
6
|
6
76120-79010-000 HINGE,FR DOOR UPRFROM 76120-79000 |
76120-79010-000 |
US $29.81 |
||
|
7
|
7
09100-08167-000
ボルト,8X22
|
09100-08167-000 |
— | ||
| replacement | |||||
|
7
|
7
09118-08060-000 BOLT(8X22) |
09118-08060-000 |
US $1.28 |
||
|
8
|
8
01107-08308-000
Bolt
|
01107-08308-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-08307-000 Bolt |
01500-08307-000 |
from US $0.91 |
||
|
9
|
9
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
11
|
11
79191-79000-000 CAP,DR HINGE HOLE |
79191-79000-000 |
US $2.24 |
||
|
12
|
12
79111-79000-000
Film, water proof
|
79111-79000-000 |
— | ||
| replacement | |||||
|
12
|
12
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
13
|
13
79210-79010-42S
Trim, rh
TYPE 1 |
79210-79010-42S |
— | ||
|
13
|
13
79210-79010-45U
Trim, rh
TYPE 2 |
79210-79010-45U |
— | ||
|
13
|
13
79210-79010-51Z
TRIM,FRONT DOOR,R
TYPE 3 |
79210-79010-51Z |
— | ||
|
13
|
13
79210-79030-91B
Trim, rh
TYPE 3:Saudi Arabia |
79210-79030-91B |
— | ||
|
13
|
13
79210-79030-7BL
Trim, rh
TYPE 3:United Arab Emirates |
79210-79030-7BL |
— | ||
|
14
|
14
79220-79010-42S
Trim, lh
TYPE 1 |
79220-79010-42S |
— | ||
|
14
|
14
79220-79010-45U
Trim, lh
TYPE 2 |
79220-79010-45U |
— | ||
|
14
|
14
79220-79010-51Z
TRIM,FRONT DOOR,L
TYPE 3 |
79220-79010-51Z |
— | ||
|
14
|
14
79220-79030-91B
Trim, lh
TYPE 3:Saudi Arabia |
79220-79030-91B |
— | ||
|
14
|
14
79220-79030-7BL
Trim, lh
TYPE 3:United Arab Emirates |
79220-79030-7BL |
— | ||
|
15
|
15
09409-08303-000 CLIP |
09409-08303-000 |
US $1.82 |
||
|
16
|
16
09251-07002-000 CAP |
09251-07002-000 |
US $1.60 |
||
|
17
|
17
79825-79000-000
Dust seal
|
79825-79000-000 |
— | ||
| replacement | |||||
|
17
|
17
79825-79010-000 SEAL,FR DOOR DUST |
79825-79010-000 |
US $19.20 |
||
|
18
|
18
79821-79000-000 WEATHERSTRIP,FR OPNG,R |
79821-79000-000 |
US $112.80 |
||
|
19
|
19
79831-79000-000 WEATHERSTRIP,FR OPNG,L |
79831-79000-000 |
US $112.80 |
||
|
20
|
20
78271-58053-281
Handle, door inside pull black
TYPE 1,TYPE 2 |
78271-58053-281 |
— | ||
| replacement | |||||
|
20
|
20
78271-58054-5ES HANDLE,DOOR INSIDE PULLTYPE 1,TYPE 2 |
78271-58054-5ES |
US $16.80 |
||
|
20
|
20
78271-58053-49F
Handle, inside pull
TYPE 3 |
78271-58053-49F |
— | ||
| replacement | |||||
|
20
|
20
78271-58054-49F
Handle,door inside pull
TYPE 3 |
78271-58054-49F |
— | ||
|
21
|
21
09125-06006-000
Screw
TYPE 1,TYPE 2 |
09125-06006-000 |
— | ||
|
21
|
21
09125-06041-000 SCREW(6X20)TYPE 3 |
09125-06041-000 |
US $1.76 |
||
