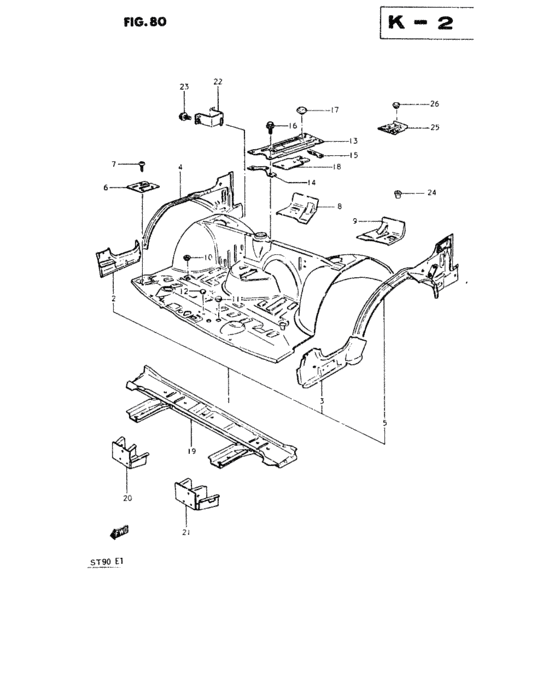

Front floor (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65400-79720-000
Panel assy, front floor
TYPE 1,TYPE 2:RHD |
65400-79720-000 |
— | ||
|
1
|
1
65400-79722-000
Panel assy, front floor
TYPE 3:RHD |
65400-79722-000 |
— | ||
|
1
|
1
65400-79741-000
Panel assy, front floor
TYPE 1,TYPE 2:LHD FROM 65400-79740 |
65400-79741-000 |
— | ||
|
1
|
1
65400-79791-000
Panel assy, front floor
TYPE 3:LHD |
65400-79791-000 |
— | ||
|
1
|
1
65400-79750-000
Panel assy, front floor
TYPE 1,TYPE 2: |
65400-79750-000 |
— | ||
|
1
|
1
65400-79752-000
Panel assy, front floor
TYPE 3:, |
65400-79752-000 |
— | ||
|
1
|
1
65400-79761-000
Panel assy, front floor
TYPE 1,TYPE 2:Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands FROM 65400-79760 |
65400-79761-000 |
— | ||
|
1
|
1
65400-79780-000
Panel assy, front floor
TYPE 3:Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands,Israel FROM 65400-79762 |
65400-79780-000 |
— | ||
|
1
|
1
65400-79770-000
Panel assy, front floor
TYPE 1,TYPE 2:Iceland |
65400-79770-000 |
— | ||
|
1
|
1
65400-79772-000
Panel assy, front floor
TYPE 3:Iceland |
65400-79772-000 |
— | ||
|
2
|
2
65450-79000-000
PANEL,FR FLOOR INNER FR RH
|
65450-79000-000 |
— | ||
|
2
|
2
65450-79230-000
Panel, inner front rh
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel,Iceland |
65450-79230-000 |
— | ||
|
3
|
3
65461-79000-000
PANEL,FR FLOOR INNER FR LH
|
65461-79000-000 |
— | ||
|
3
|
3
65461-79230-000
Panel, inner front lh
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel,Iceland |
65461-79230-000 |
— | ||
|
4
|
4
65470-79720-000
PANEL,SIDE SILL INNER RR,R
FROM 65470-79500 |
65470-79720-000 |
— | ||
|
4
|
4
65470-79750-000
Panel, inner rear rh
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
65470-79750-000 |
— | ||
|
4
|
4
65470-79770-000
Panel, inner rear rh
Iceland |
65470-79770-000 |
— | ||
|
5
|
5
65480-79600-000
PANEL,FR FLOOR INNER RR LH
|
65480-79600-000 |
— | ||
|
5
|
5
65480-79750-000
Panel, inner rear lh
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
65480-79750-000 |
— | ||
|
5
|
5
65480-79770-000
Panel, inner rear lh
Iceland |
65480-79770-000 |
— | ||
|
6
|
6
65492-79060-000
Cover, floor front rh
LHD |
65492-79060-000 |
— | ||
|
7
|
7
03141-06108-000
New Genuine Part
LHD |
03141-06108-000 |
— | ||
| replacement | |||||
|
7
|
7
03141-0610A-000 SCREWLHD |
03141-0610A-000 |
US $0.80 |
||
|
8
|
8
65118-79500-000
Panel, floor side rh
|
65118-79500-000 |
— | ||
| replacement | |||||
|
8
|
8
65118-79250-000
Panel,frame floor side rh
|
65118-79250-000 |
— | ||
|
9
|
9
65128-79500-000
PANEL,FRAME FLOOR SIDE LH
|
65128-79500-000 |
— | ||
|
10
|
10
09250-30002-000
キャップ,OD:30
|
09250-30002-000 |
— | ||
| replacement | |||||
|
10
|
10
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
11
|
11
09250-26003-000
CAP(OD:32)
NONHEATER TYPE |
09250-26003-000 |
— | ||
| replacement | |||||
|
11
|
11
09250-26006-000 Cap(Od:32)NONHEATER TYPE |
09250-26006-000 |
from US $3.91 |
||
|
11
|
11
09250-40002-000 CAP(OD:52)TYPE 3:NON HEATER TYPE |
09250-40002-000 |
from US $1.82 |
||
|
12
|
12
09250-07001-000 CAP(OD:10)NONHEATER TYPE |
09250-07001-000 |
US $11 |
||
|
13
|
13
66410-79200-000
Member, engine room center
|
66410-79200-000 |
— | ||
|
13
|
13
66411-79220-000
Member, engine room center
,Australia TYPE 3:New Zealand |
66411-79220-000 |
— | ||
| replacements | |||||
|
13
|
13
09250-20009-000
CAP(OD:30)
,Australia TYPE 3:New Zealand |
09250-20009-000 |
— | ||
|
13
|
13
09250-20002-000
キャップ,OD:30
,Australia TYPE 3:New Zealand |
09250-20002-000 |
— | ||
|
13
|
13
09250-20034-000 Cap(Od:30),Australia TYPE 3:New Zealand |
09250-20034-000 |
US $11.40 |
||
|
13
|
13
66410-79750-000
Member, engine room center
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
66410-79750-000 |
— | ||
|
14
|
14
66551-79500-000
Dust seal, front
|
66551-79500-000 |
— | ||
|
15
|
15
66552-79500-000
Dust seal, rear
|
66552-79500-000 |
— | ||
|
16
|
16
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
17
|
17
09250-20002-000
キャップ,OD:30
|
09250-20002-000 |
— | ||
|
18
|
18
66416-79200-000
INSULATOR,ENGINE ROOM MEMBER
|
66416-79200-000 |
— | ||
|
19
|
19
65310-79230-000
Cross member, floor
TYPE 1,TYPE 2:RHD FROM 65310-79000 |
65310-79230-000 |
— | ||
|
19
|
19
65310-79001-000
Cross member, floor
TYPE 3:RHD |
65310-79001-000 |
— | ||
| replacements | |||||
|
19
|
19
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) TYPE 3:RHD |
09160-06019-000 |
from US $0.76 |
||
|
19
|
19
08321-0106A-000 WASHER,LOCKTYPE 3:RHD |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
01500-0616A-000 BoltTYPE 3:RHD |
01500-0616A-000 |
from US $0.76 |
||
|
19
|
19
08321-21066-000
Lock washer
TYPE 3:RHD |
08321-21066-000 |
— | ||
|
19
|
19
01107-06166-000
Bolt
TYPE 3:RHD |
01107-06166-000 |
— | ||
|
19
|
19
65310-79060-000
Cross member, floor
TYPE 1,TYPE 2:LHD |
65310-79060-000 |
— | ||
|
19
|
19
65310-79061-000
Cross member, floor
TYPE 3:LHD |
65310-79061-000 |
— | ||
| replacements | |||||
|
19
|
19
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) TYPE 3:LHD |
09160-06019-000 |
from US $0.76 |
||
|
19
|
19
08321-0106A-000 WASHER,LOCKTYPE 3:LHD |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
01500-0616A-000 BoltTYPE 3:LHD |
01500-0616A-000 |
from US $0.76 |
||
|
19
|
19
01107-06166-000
Bolt
TYPE 3:LHD |
01107-06166-000 |
— | ||
|
19
|
19
08321-21066-000
Lock washer
TYPE 3:LHD |
08321-21066-000 |
— | ||
|
19
|
19
65310-79231-000
Cross member, floor
TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
65310-79231-000 |
— | ||
| replacements | |||||
|
19
|
19
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
09160-06019-000 |
from US $0.76 |
||
|
19
|
19
01500-0616A-000 BoltTYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
01500-0616A-000 |
from US $0.76 |
||
|
19
|
19
08321-0106A-000 WASHER,LOCKTYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
01107-06166-000
Bolt
TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
01107-06166-000 |
— | ||
|
19
|
19
08321-21066-000
Lock washer
TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
08321-21066-000 |
— | ||
|
20
|
20
65130-79000-000
BRACKET,STEERING GEAR BOX RH
|
65130-79000-000 |
— | ||
|
21
|
21
65140-79060-000
BRACKET,STEERING GEAR BOX LH
|
65140-79060-000 |
— | ||
|
22
|
22
65490-79500-000
Bracket,jack
|
65490-79500-000 |
— | ||
|
23
|
23
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
24
|
24
09250-05003-000 PLUG(OD:12)Plug ,Australia |
09250-05003-000 |
from US $1.17 |
||
|
25
|
25
66471-79750-000
Bracket, seat belt center
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
66471-79750-000 |
— | ||
|
26
|
26
09250-14005-000 PLUG(OD:19),,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
09250-14005-000 |
from US $3.15 |
||
