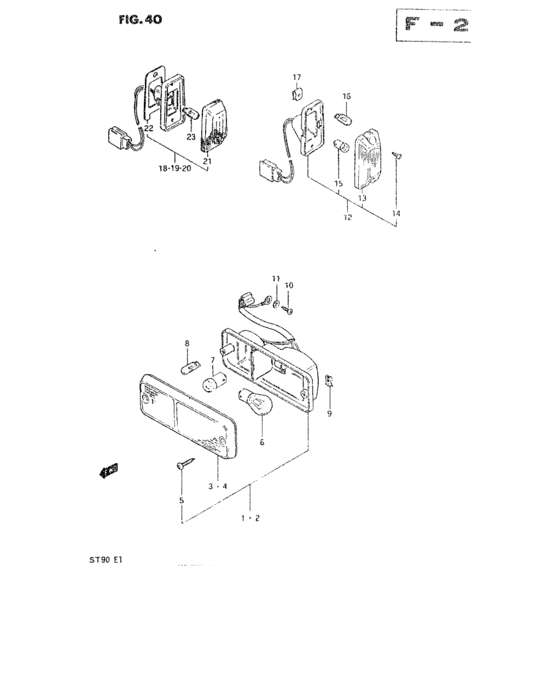

Front lamp (FRONT LAMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-79000-000
Lamp assy, combination rh
|
35601-79000-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-78000-000 LAMP ASSY,COMB,R |
35601-78000-000 |
US $76.91 |
||
|
1
|
1
35601-79012-000
Lamp assy, combination rh
SEE NOTE |
35601-79012-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-78011-000 LAMP ASSY,FR COMB,RSEE NOTE |
35601-78011-000 |
US $59.62 |
||
|
2
|
2
35602-79000-000
Lamp assy, combination lh
|
35602-79000-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-78000-000 LAMP ASSY,COMB,L |
35602-78000-000 |
US $76.91 |
||
|
2
|
2
35602-79012-000
Lamp assy, combination lh
SEE NOTE |
35602-79012-000 |
— | ||
| replacement | |||||
|
2
|
2
35602-78011-000
Lamp assy,fr combi lh
SEE NOTE |
35602-78011-000 |
— | ||
|
3
|
3
35612-78000-000 LENS,R |
35612-78000-000 |
US $11.86 |
||
|
3
|
3
35612-79012-000
LENS,R
SEE NOTE |
35612-79012-000 |
— | ||
|
4
|
4
35632-78000-000 LENS,L |
35632-78000-000 |
from US $10.46 |
||
|
4
|
4
35632-79012-000
LENS,L
SEE NOTE |
35632-79012-000 |
— | ||
|
5
|
5
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
6
|
6
09471-12056-000
Bulb (12v, 21w)
12V,21W |
09471-12056-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12045-000 BULB(12V21W)12V,21W |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
09471-12045-000 BULB(12V21W)(12V,21W EXECUTED LOCALLY),SEE NOTE |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
09471-12058-000
Bulb 12v5w
TYPE 1,TYPE 2,TYPE 3 |
09471-12058-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12140-000 BULB(12V5W)TYPE 1,TYPE 2,TYPE 3 |
09471-12140-000 |
from US $2.03 |
||
|
7
|
7
09471-12059-000 Ampoule (12v,10w)(EXECUTED LOCALLY),SEE NOTE |
09471-12059-000 |
US $4.15 |
||
| replacement | |||||
|
7
|
7
09471-12140-000 BULB(12V5W)(EXECUTED LOCALLY),SEE NOTE |
09471-12140-000 |
from US $2.03 |
||
|
8
|
8
09471-12076-000
Bulb (12v,5w)
TYPE 2 |
09471-12076-000 |
— | ||
| replacement | |||||
|
8
|
8
09471-12216-000 BULB(12V5W)Bulb (12v5w) TYPE 2 |
09471-12216-000 |
from US $2.84 |
||
|
9
|
9
09148-04011-000 NUTTYPE 1,TYPE 2 |
09148-04011-000 |
US $1.28 |
||
|
10
|
10
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
10
|
10
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
11
|
11
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
12
|
12
36410-79000-000
Lamp assy, side turn signal
TYPE 1 |
36410-79000-000 |
— | ||
|
12
|
12
36410-79001-000
Lamp assy,side turn
TYPE 2 |
36410-79001-000 |
— | ||
|
12
|
12
36410-79010-000
Lamp assy, side turn signal
TYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
36410-79010-000 |
— | ||
|
13
|
13
36412-78001-000
Lens
TYPE 1,TYPE 2,FROM 36412-78000 |
36412-78001-000 |
— | ||
|
14
|
14
03112-04169-000
スクリュ
TYPE 1,TYPE 2 |
03112-04169-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0416A-000 SCREWTYPE 1,TYPE 2 |
03111-0416A-000 |
US $0.80 |
||
|
15
|
15
09471-12007-000 BULB(12V6W,STANLEY,A524)TYPE 1 |
09471-12007-000 |
US $23.60 |
||
|
15
|
15
09471-12079-000
Bulb
(EXECUTED LOCALLY),TYPE 1,TYPE,2:,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09471-12079-000 |
— | ||
|
16
|
16
09471-12076-000
Bulb (12v,5w)
TYPE 2 |
09471-12076-000 |
— | ||
| replacement | |||||
|
16
|
16
09471-12216-000 BULB(12V5W)Bulb (12v5w) TYPE 2 |
09471-12216-000 |
from US $2.84 |
||
|
17
|
17
09159-04002-000 NUTTYPE 1,TYPE 2 |
09159-04002-000 |
US $12.10 |
||
|
18
|
18
36410-79020-000
Lamp assy, side turn signal
TYPE 3 |
36410-79020-000 |
— | ||
| replacement | |||||
|
18
|
18
36410-79030-000 LAMP ASSY,SIDE TURN SIGTYPE 3 |
36410-79030-000 |
US $15.16 |
||
|
19
|
19
36410-79030-000 LAMP ASSY,SIDE TURN SIGTYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
36410-79030-000 |
US $15.16 |
||
|
20
|
20
36430-79030-000
Lamp assy, side turn signal lh
TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
36430-79030-000 |
— | ||
|
21
|
21
36412-79020-000 LENSTYPE 3 |
36412-79020-000 |
US $3.46 |
||
|
22
|
22
36413-78040-000
Gasket
TYPE 3 |
36413-78040-000 |
— | ||
| replacement | |||||
|
22
|
22
36413-78041-000 GASKETTYPE 3 |
36413-78041-000 |
US $19.76 |
||
|
23
|
23
09471-12076-000
Bulb (12v,5w)
TYPE 3 |
09471-12076-000 |
— | ||
| replacement | |||||
|
23
|
23
09471-12216-000 BULB(12V5W)Bulb (12v5w) TYPE 3 |
09471-12216-000 |
from US $2.84 |
||
|
23
|
23
09471-12081-000
Bulb (12v,5w)
(EXECUTED LOCALLY),TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
09471-12081-000 |
— | ||
| replacement | |||||
|
23
|
23
09471-12216-000 BULB(12V5W)Bulb (12v5w) (EXECUTED LOCALLY),TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
09471-12216-000 |
from US $2.84 |
||
