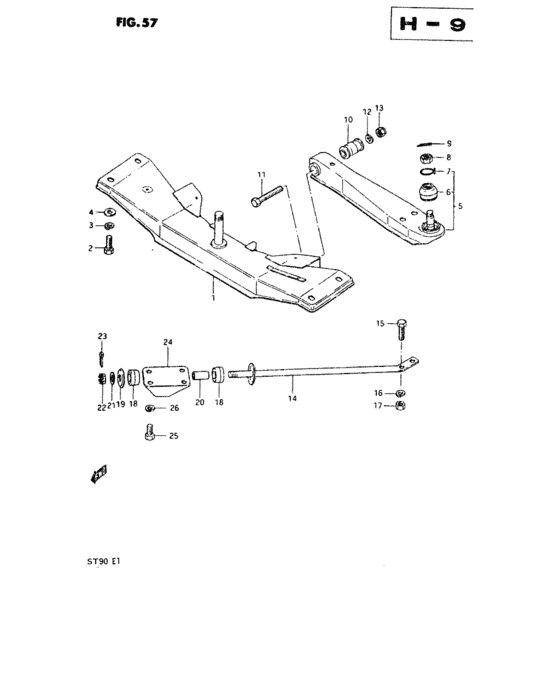

Front suspension frame (FRONT SUSPENSION FRAME) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56310-79000-000 FRAME,FR SUSPENSION |
56310-79000-000 |
US $584.32 |
||
|
2
|
2
01107-10308-000
Bolt 10x30
|
01107-10308-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
3
|
3
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
4
|
4
08322-11108-000
Washer
|
08322-11108-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
5
|
5
45200-79001-000
Arm assy, suspension
FROM 45200-79000 |
45200-79001-000 |
— | ||
| replacement | |||||
|
5
|
5
45200-79002-000 ARM ASSY,FR SPNSNFROM 45200-79000 |
45200-79002-000 |
US $104 |
||
|
6
|
6
45721-79010-000 DUST SEAL |
45721-79010-000 |
US $11.20 |
||
|
7
|
7
09401-30401-000 CLIPFROM 09386-30001 |
09401-30401-000 |
US $1.92 |
||
|
8
|
8
08314-41128-000
Nut
|
08314-41128-000 |
— | ||
| replacement | |||||
|
8
|
8
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
9
|
9
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
9
|
9
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
10
|
10
09319-10030-000 BUSH(10.2X25.5X52.2)Bushing |
09319-10030-000 |
from US $5.87 |
||
|
11
|
11
09100-10124-000 BOLT(10X75) |
09100-10124-000 |
from US $2.82 |
||
|
12
|
12
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
13
|
13
09159-10018-000
Nut
|
09159-10018-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-10048-000 NUT |
09159-10048-000 |
from US $1.22 |
||
|
14
|
14
45310-79001-000
Tension rod, suspension
TYPE 1,TYPE 2,FROM 45310-79000 |
45310-79001-000 |
— | ||
| replacement | |||||
|
14
|
14
45310-79002-000 TENSION ROD,SUSPENSIONTYPE 1,TYPE 2,FROM 45310-79000 |
45310-79002-000 |
US $67.20 |
||
|
14
|
14
45310-79002-000 TENSION ROD,SUSPENSIONTYPE 3 |
45310-79002-000 |
US $67.20 |
||
|
15
|
15
09100-10028-000
Bolt, brake disc
|
09100-10028-000 |
— | ||
| replacement | |||||
|
15
|
15
09100-10237-000 BOLT(10X23) |
09100-10237-000 |
US $1.44 |
||
|
16
|
16
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
17
|
17
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
17
|
17
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
18
|
18
45341-79010-000
Bush
FROM 45341-79040 |
45341-79010-000 |
— | ||
| replacement | |||||
|
18
|
18
45341-85010-000 BUSHING,TENSION RODFROM 45341-79040 |
45341-85010-000 |
US $9.76 |
||
|
19
|
19
09164-14007-000
Washer
TYPE 1,TYPE 2 |
09164-14007-000 |
— | ||
|
19
|
19
09160-14031-000 WASHER(14.1X49X3.2)TYPE 3 |
09160-14031-000 |
US $88.30 |
||
|
20
|
20
09180-15051-000 SPACER(15.3X19.9X44) |
09180-15051-000 |
US $2.08 |
||
|
21
|
21
08322-11148-000
Washer
TYPE 3 |
08322-11148-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-01147-000 WASHERTYPE 3 |
08322-01147-000 |
from US $0.80 |
||
|
22
|
22
08314-31148-000
Nut
|
08314-31148-000 |
— | ||
| replacement | |||||
|
22
|
22
08314-3114A-000 NUT |
08314-3114A-000 |
from US $1.44 |
||
|
23
|
23
04111-30308-000
30 x 30 cotter
|
04111-30308-000 |
— | ||
| replacement | |||||
|
23
|
23
04111-3030A-000 PIN |
04111-3030A-000 |
from US $0.76 |
||
|
24
|
24
45350-79001-000
Bracket, tension rod
FROM 43530-79000 |
45350-79001-000 |
— | ||
| replacement | |||||
|
24
|
24
45350-79002-000 BRACKET,TENSION RODFROM 43530-79000 |
45350-79002-000 |
US $52 |
||
|
25
|
25
01107-10208-000
Bolt
|
01107-10208-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
26
|
26
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
