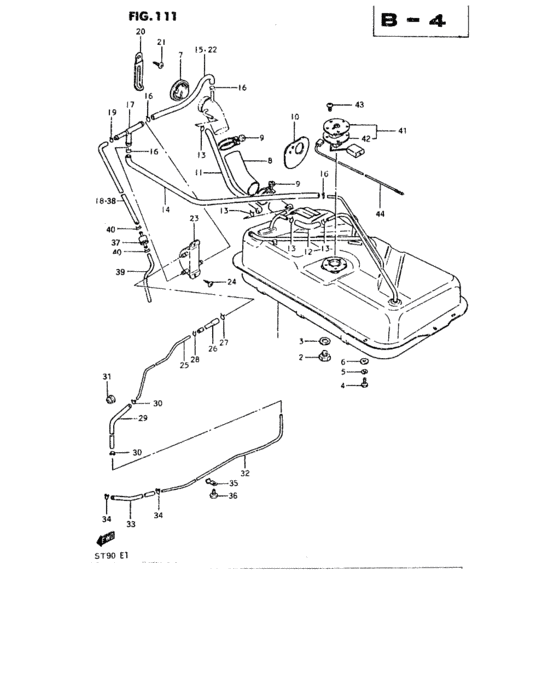

Fuel tank (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85100-79611-000
Tank assy,fuel
FROM 85100-79610 |
85100-79611-000 |
— | ||
|
2
|
2
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
3
|
3
09168-12005-000
ガスケット,12X21X1.5
|
09168-12005-000 |
— | ||
| replacement | |||||
|
3
|
3
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
4
|
4
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
5
|
5
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
7
|
7
85410-79202-000
キャップアッシ,フューエルタンクフィラ
FROM 85410-79201 |
85410-79202-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-50C00-000 CAP ASSY,FUEL FILLERFROM 85410-79201 |
89260-50C00-000 |
from US $35.24 |
||
|
8
|
8
85372-79500-000
HOSE,INLET JOINT
|
85372-79500-000 |
— | ||
|
9
|
9
09400-58301-000 CLAMP |
09400-58301-000 |
US $21.70 |
||
|
10
|
10
85373-79510-000
Dust seal,fuel tank inlet
|
85373-79510-000 |
— | ||
|
11
|
11
09343-09017-000
Hose 9x14x700
L:700->380 |
09343-09017-000 |
— | ||
|
11
|
11
09343-09028-000
Joint hose, breather
L:380 |
09343-09028-000 |
— | ||
| replacements | |||||
|
11
|
11
09352-90133-600
HOSE(9X13X600)
L:380 |
09352-90133-600 |
— | ||
|
11
|
11
09352-90134-600 Hose(9X13X600)L:380 |
09352-90134-600 |
from US $11.68 |
||
|
12
|
12
09343-09017-000
Hose 9x14x700
L:700->200,OD:14 |
09343-09017-000 |
— | ||
|
12
|
12
09343-09028-000
Joint hose, breather
L:380->200,OD:13 |
09343-09028-000 |
— | ||
| replacements | |||||
|
12
|
12
09352-90133-600
HOSE(9X13X600)
L:380->200,OD:13 |
09352-90133-600 |
— | ||
|
12
|
12
09352-90134-600 Hose(9X13X600)L:380->200,OD:13 |
09352-90134-600 |
from US $11.68 |
||
|
13
|
13
09401-14301-000 CLIPClip |
09401-14301-000 |
from US $2.13 |
||
|
13
|
13
09401-13301-000 CLIPClip, breather hose |
09401-13301-000 |
from US $2.56 |
||
|
14
|
14
09343-07053-000
Hose, fuel (pump->carb.)
L:655,OD:12 |
09343-07053-000 |
— | ||
| replacement | |||||
|
14
|
14
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:655,OD:12 |
09355-70125-00B |
from US $43.33 |
||
|
14
|
14
09343-07093-000 Hose conn->filterL:655,OD:11 |
09343-07093-000 |
US $12.58 |
||
| replacements | |||||
|
14
|
14
09352-70113-00B
HOSE(7X11X2000)
L:655,OD:11 |
09352-70113-00B |
— | ||
|
14
|
14
09352-70119-00B Hose(7X11X2000)L:655,OD:11 |
09352-70119-00B |
from US $22.40 |
||
|
15
|
15
09343-07050-000
Hose, fuel (pump@rcarb.)
L:810->130,OD:12 |
09343-07050-000 |
— | ||
| replacement | |||||
|
15
|
15
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:810->130,OD:12 |
09355-70125-00B |
from US $43.33 |
||
|
15
|
15
09343-07036-000
Hose, inlet breather separator
L:2360->130,OD:11 |
09343-07036-000 |
— | ||
|
16
|
16
09401-12301-000 CLIP |
09401-12301-000 |
US $2.13 |
||
|
16
|
16
09401-11301-000
Clip
|
09401-11301-000 |
— | ||
| replacement | |||||
|
16
|
16
09401-11403-000 CLIPClip |
09401-11403-000 |
from US $1.44 |
||
|
17
|
17
85381-79510-000
3 way joint, breather
|
85381-79510-000 |
— | ||
|
18
|
18
09344-05024-000
Hose, breather outlet
L:1030 |
09344-05024-000 |
— | ||
| replacement | |||||
|
18
|
18
09351-50803-00B HOSE(5X8X2000)Hose, overflow L:1030 |
09351-50803-00B |
from US $8.66 |
||
|
19
|
19
09401-08401-000 CLIPClip, fuel hose |
09401-08401-000 |
from US $0.96 |
||
|
20
|
20
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
20
|
20
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
20
|
20
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
20
|
20
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
20
|
20
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
21
|
21
03111-06128-000
Screw
|
03111-06128-000 |
— | ||
| replacement | |||||
|
21
|
21
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
22
|
22
09343-07050-000
Hose, fuel (pump@rcarb.)
Australia L:810->185,OD:12 |
09343-07050-000 |
— | ||
| replacement | |||||
|
22
|
22
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) Australia L:810->185,OD:12 |
09355-70125-00B |
from US $43.33 |
||
|
22
|
22
09343-07036-000
Hose, inlet breather separator
Australia L:2360->185,OD:11 |
09343-07036-000 |
— | ||
|
23
|
23
85421-79501-000
Separator, fuel
Australia FROM 85421-79500 |
85421-79501-000 |
— | ||
|
24
|
24
03141-05128-000
スクリュ
Australia |
03141-05128-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0512A-000 SCREWScrew, belt cooling duct Australia |
03141-0512A-000 |
from US $0.76 |
||
|
25
|
25
85441-79500-000
Pipe, separator outlet no.1
TO 85441-79501, USED WITH,09343-05096 L:145,Australia OUTLET,HOSE:L:115 |
85441-79500-000 |
— | ||
| replacements | |||||
|
25
|
25
09359-50823-600
HOSE(5X8.2X600)
TO 85441-79501, USED WITH,09343-05096 L:145,Australia OUTLET,HOSE:L:115 |
09359-50823-600 |
— | ||
|
25
|
25
09343-05096-000
Hose, fuel (connector->filter)
TO 85441-79501, USED WITH,09343-05096 L:145,Australia OUTLET,HOSE:L:115 |
09343-05096-000 |
— | ||
|
25
|
25
09359-50824-600 Hose(5X8.2X600)TO 85441-79501, USED WITH,09343-05096 L:145,Australia OUTLET,HOSE:L:115 |
09359-50824-600 |
from US $6.24 |
||
|
25
|
25
85441-79501-000
Pipe, separator outlet no.1
Australia OUTLET HOSE:L:145 |
85441-79501-000 |
— | ||
|
26
|
26
09343-05096-000
Hose, fuel (connector->filter)
Australia L:350->115 |
09343-05096-000 |
— | ||
|
27
|
27
09401-10301-000 CLIPAustralia |
09401-10301-000 |
US $11.80 |
||
|
28
|
28
09401-08301-000 CLIPAustralia |
09401-08301-000 |
from US $0.96 |
||
|
29
|
29
09343-05165-000 Hose, vacuum (l:890->30)Australia L:890->350 |
09343-05165-000 |
US $16.40 |
||
| replacements | |||||
|
29
|
29
09352-50823-00B
HOSE(5X8.2X2000)
Australia L:890->350 |
09352-50823-00B |
— | ||
|
29
|
29
09352-50005-00B Hose(5X8.2X2000)Australia L:890->350 |
09352-50005-00B |
from US $9.27 |
||
|
30
|
30
09401-08401-000 CLIPClip, fuel hose Australia |
09401-08401-000 |
from US $0.96 |
||
|
31
|
31
09308-06009-000 GROMMETAustralia |
09308-06009-000 |
US $1.76 |
||
|
32
|
32
85442-79500-000
Pipe, separator outlet no.2
Australia TYPE 1,TYPE 2 |
85442-79500-000 |
— | ||
|
32
|
32
85442-79511-000
Pipe, separator outlet no.2
Australia TYPE 3 |
85442-79511-000 |
— | ||
|
33
|
33
09343-05165-000 Hose, vacuum (l:890->30)Australia TYPE 1,L:890->260,OD:8.2 |
09343-05165-000 |
US $16.40 |
||
| replacements | |||||
|
33
|
33
09352-50823-00B
HOSE(5X8.2X2000)
Australia TYPE 1,L:890->260,OD:8.2 |
09352-50823-00B |
— | ||
|
33
|
33
09352-50005-00B Hose(5X8.2X2000)Australia TYPE 1,L:890->260,OD:8.2 |
09352-50005-00B |
from US $9.27 |
||
|
33
|
33
09343-05137-000
Hose, inspection (l:500@r135)
Australia TYPE 1,TYPE 2,L:500->260,OD:9.0 |
09343-05137-000 |
— | ||
| replacements | |||||
|
33
|
33
09352-50903-600
HOSE(5X9X600)
Australia TYPE 1,TYPE 2,L:500->260,OD:9.0 |
09352-50903-600 |
— | ||
|
33
|
33
09352-50006-600 Hose(5X9X600)Australia TYPE 1,TYPE 2,L:500->260,OD:9.0 |
09352-50006-600 |
from US $4 |
||
|
34
|
34
09401-08401-000 CLIPClip, fuel hose Australia TYPE 1 |
09401-08401-000 |
from US $0.96 |
||
|
34
|
34
09401-09301-000
Clip
Australia TYPE 1,TYPE 2,TYPE 3 |
09401-09301-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-09301-XC0
CLIP
Australia TYPE 1,TYPE 2,TYPE 3 |
09401-09301-XC0 |
— | ||
|
35
|
35
09403-05302-000 CLAMPClamp Australia |
09403-05302-000 |
US $1.28 |
||
|
36
|
36
03111-06128-000
Screw
Australia |
03111-06128-000 |
— | ||
| replacement | |||||
|
36
|
36
03111-0612A-000 SCREWAustralia |
03111-0612A-000 |
US $0.80 |
||
|
37
|
37
85451-75100-000 VALVE,2WAY CHECKValve, check ,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
85451-75100-000 |
from US $30.40 |
||
|
38
|
38
09343-05137-000
Hose, inspection (l:500@r135)
L:500->180,,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09343-05137-000 |
— | ||
| replacements | |||||
|
38
|
38
09352-50903-600
HOSE(5X9X600)
L:500->180,,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09352-50903-600 |
— | ||
|
38
|
38
09352-50006-600 Hose(5X9X600)L:500->180,,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09352-50006-600 |
from US $4 |
||
|
39
|
39
09344-05014-000
Hose, inlet
L:950->800,,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09344-05014-000 |
— | ||
| replacement | |||||
|
39
|
39
09351-50803-00B HOSE(5X8X2000)Hose, overflow L:950->800,,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09351-50803-00B |
from US $8.66 |
||
|
40
|
40
09401-08401-000 CLIPClip, fuel hose ,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
09401-08401-000 |
from US $0.96 |
||
|
41
|
41
34810-79001-000
Gauge assy, fuel level
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,FROM 34810-79500 |
34810-79001-000 |
— | ||
| replacement | |||||
|
41
|
41
34810-79002-000 GAUGE ASSY,FUEL LEVEL,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,FROM 34810-79500 |
34810-79002-000 |
US $39.20 |
||
|
42
|
42
34825-67020-000 GASKET |
34825-67020-000 |
US $5.28 |
||
|
43
|
43
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
43
|
43
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
|
44
|
44
34823-79500-000
Lead wire, fuel level gauge
|
34823-79500-000 |
— | ||
| replacement | |||||
|
44
|
44
34823-85510-000 WIRE,FUEL LEVEL SENDER |
34823-85510-000 |
US $1.60 |
||
