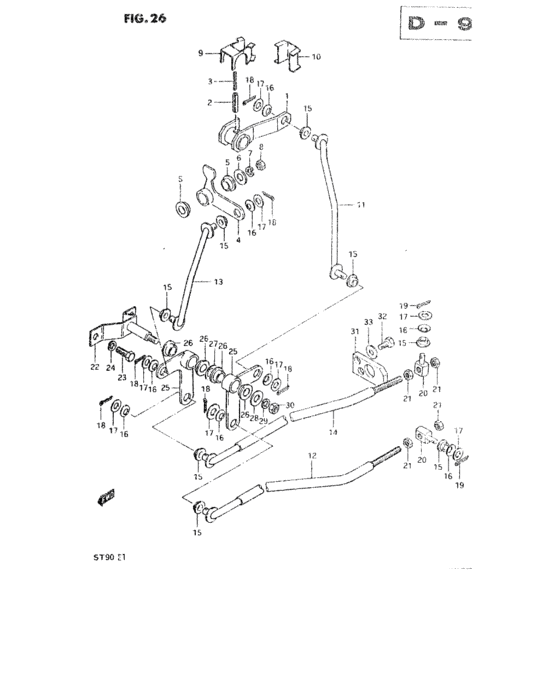

Gear shifting control no.2 (GEAR SHIFTING CONTROL NO.2) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28350-79500-000 SHAFT,GEAR SHIFT CONTROL~ST90-119076 ~ST90-742984,~ST90K102265 ~ST90V112245 FROM,28430-79501 |
28350-79500-000 |
US $29.62 |
||
|
2
|
2
09205-06004-000 PIN,SPRING(6X28)~ST90-119076 ~ST90-742984,~ST90K102265 ~ST90V112245 |
09205-06004-000 |
US $11.40 |
||
|
3
|
3
09205-03016-000 PIN,SPRING(3.5X28)~ST90-119076 ~ST90-742984,~ST90K102265 ~ST90V112245 |
09205-03016-000 |
US $11 |
||
|
4
|
4
28450-79500-000
ARM,GEAR SELECT NO.1
|
28450-79500-000 |
— | ||
|
5
|
5
09306-12006-000 BUSH |
09306-12006-000 |
US $2.56 |
||
|
6
|
6
09160-08007-000 Seat washerSpacer, swivel bracket |
09160-08007-000 |
US $1.93 |
||
| replacement | |||||
|
6
|
6
09160-08127-000 WASHER(8.5X22X2)Washer, fender front |
09160-08127-000 |
from US $1.12 |
||
|
7
|
7
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
8
|
8
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
9
|
9
28458-79500-000
Spring, select arm
|
28458-79500-000 |
— | ||
|
10
|
10
28458-79501-000 SPRINGST90-119077~ ST90-742985~,ST90K102266~ ST90V112246~ |
28458-79501-000 |
US $2.13 |
||
|
11
|
11
28260-79501-000
Rod, gear shift no.2
FROM 28250-79500 |
28260-79501-000 |
— | ||
|
12
|
12
28260-79501-000
Rod, gear shift no.2
FROM 28260-79500 |
28260-79501-000 |
— | ||
|
13
|
13
28270-79501-000 ROD,GEAR SELECT NO.1FROM 28270-79500 |
28270-79501-000 |
US $14.32 |
||
|
14
|
14
28280-79501-000
ROD,GEAR SELECT NO.2
FROM 28280-79500 |
28280-79501-000 |
— | ||
|
15
|
15
09305-08011-000 BUSH |
09305-08011-000 |
US $1.60 |
||
|
16
|
16
09164-08002-000 WASHER |
09164-08002-000 |
US $1.28 |
||
|
17
|
17
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
18
|
18
04111-25208-000
25 x 20 cotter
TYPE 1 |
04111-25208-000 |
— | ||
| replacement | |||||
|
18
|
18
04111-2520A-000 PINTYPE 1 |
04111-2520A-000 |
from US $0.80 |
||
|
18
|
18
04111-30208-000
Cotter pin
TYPE 2,TYPE 3 |
04111-30208-000 |
— | ||
| replacement | |||||
|
18
|
18
04111-3020A-000 PINTYPE 2,TYPE 3 |
04111-3020A-000 |
from US $0.61 |
||
|
19
|
19
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
19
|
19
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
20
|
20
28291-79500-000 JOINT,ROD |
28291-79500-000 |
US $5.28 |
||
|
21
|
21
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
22
|
22
28410-79501-000 SUPPORT,GEAR SHIFT ARM |
28410-79501-000 |
US $11.19 |
||
|
23
|
23
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
23
|
23
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
24
|
24
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
25
|
25
28440-79500-000 ARM |
28440-79500-000 |
US $11.19 |
||
|
26
|
26
09306-12006-000 BUSH |
09306-12006-000 |
US $2.56 |
||
|
27
|
27
09164-12010-000
WASHER
|
09164-12010-000 |
— | ||
|
28
|
28
09160-08007-000 Seat washerSpacer, swivel bracket |
09160-08007-000 |
US $1.93 |
||
| replacement | |||||
|
28
|
28
09160-08127-000 WASHER(8.5X22X2)Washer, fender front |
09160-08127-000 |
from US $1.12 |
||
|
29
|
29
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
29
|
29
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
30
|
30
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
30
|
30
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
31
|
31
28285-79500-000 GUIDE,ROD |
28285-79500-000 |
US $2.40 |
||
|
32
|
32
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
32
|
32
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
33
|
33
09160-06057-000
Washer (6.5x18x1.6)
|
09160-06057-000 |
— | ||
| replacement | |||||
|
33
|
33
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
