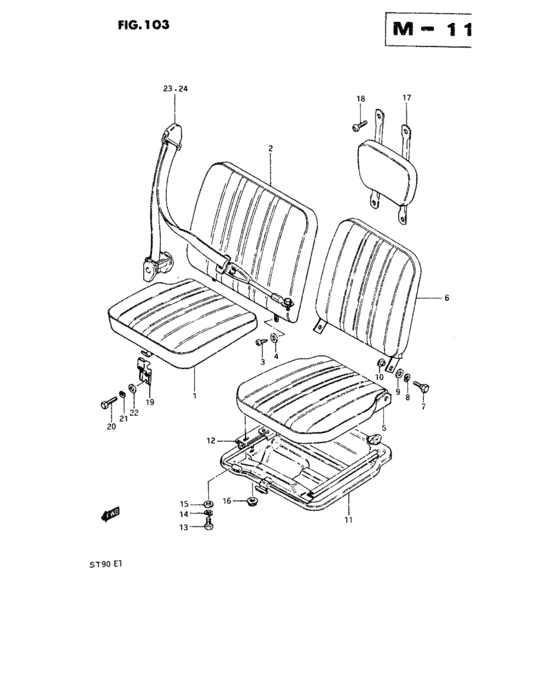

Front seat (ST90K : Switzerland) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81001-79201-42S
Cushion assy, seat rh
TYPE 1 |
81001-79201-42S |
— | ||
|
1
|
1
81001-79201-45U
Cushion assy, seat rh
TYPE 2,FROM 81001-79200-45U |
81001-79201-45U |
— | ||
|
1
|
1
81001-79240-90V
Cushion assy, seat rh
TYPE 3 |
81001-79240-90V |
— | ||
|
2
|
2
81004-79011-42S
Back assy, seat rh
TYPE 1,FROM 81004-79010-42S |
81004-79011-42S |
— | ||
|
2
|
2
81004-79011-45U
Back assy, seat rh
TYPE 2,FROM 81004-79010-45U |
81004-79011-45U |
— | ||
|
2
|
2
81004-79090-90V
Back assy, seat rh
TYPE 3 |
81004-79090-90V |
— | ||
|
3
|
3
03211-06128-000
スクリュ
|
03211-06128-000 |
— | ||
| replacement | |||||
|
3
|
3
03211-0612A-000 SCREW |
03211-0612A-000 |
US $7.70 |
||
|
4
|
4
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
4
|
4
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
5
|
5
81002-79001-42S
Cushion assy, seat lh
TYPE 1 |
81002-79001-42S |
— | ||
|
5
|
5
81002-79001-45U
Cushion assy, seat lh
TYPE 2 |
81002-79001-45U |
— | ||
|
5
|
5
81002-79080-90V
Cushion assy, seat lh
TYPE 3 |
81002-79080-90V |
— | ||
|
6
|
6
81004-79001-42S
Back assy, seat lh
TYPE 1 |
81004-79001-42S |
— | ||
|
6
|
6
81004-79001-45U
Back assy, seat lh
TYPE 2 |
81004-79001-45U |
— | ||
|
6
|
6
81005-79080-90V
Back assy, seat lh
TYPE 3 |
81005-79080-90V |
— | ||
|
7
|
7
09111-08041-000
Bolt
|
09111-08041-000 |
— | ||
|
8
|
8
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
10
|
10
09306-08006-000
Bush
|
09306-08006-000 |
— | ||
|
11
|
11
82320-79202-000
Panel, lh
TYPE 1,TYPE 2,FROM 82320-79200 |
82320-79202-000 |
— | ||
|
11
|
11
82320-79703-000
Panel, lh
TYPE 3,FROM 82320-79702 |
82320-79703-000 |
— | ||
|
12
|
12
82403-79701-000
Rail, lh
TYPE 1,TYPE 2,FROM 82403-79700 |
82403-79701-000 |
— | ||
|
12
|
12
82403-79703-000
Rail, lh
TYPE 3 |
82403-79703-000 |
— | ||
|
13
|
13
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
14
|
14
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
15
|
15
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
16
|
16
08316-26068-000
Nut
|
08316-26068-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
17
|
17
82110-79000-42S
Head rest assy
TYPE 1 |
82110-79000-42S |
— | ||
|
17
|
17
82110-79000-45U
Head rest assy
TYPE 2 |
82110-79000-45U |
— | ||
|
17
|
17
82110-79030-90V
Head rest assy
TYPE 3 |
82110-79030-90V |
— | ||
|
18
|
18
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
19
|
19
81920-79200-000
Lock, seat cushion
|
81920-79200-000 |
— | ||
|
20
|
20
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
21
|
21
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
22
|
22
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
23
|
23
87301-79052-382
Seat belt assy, rh
TYPE 1,TYPE 2,FROM 87301-79050-382 |
87301-79052-382 |
— | ||
|
23
|
23
87301-79051-49L
Seat belt assy, rh
TYPE 3 |
87301-79051-49L |
— | ||
|
24
|
24
87302-79052-382
Seat belt assy, lh
TYPE 1,TYPE 2,FROM 87302-79050-382 |
87302-79052-382 |
— | ||
|
24
|
24
87302-79051-49L
Seat belt assy, lh
TYPE 3 |
87302-79051-49L |
— | ||
