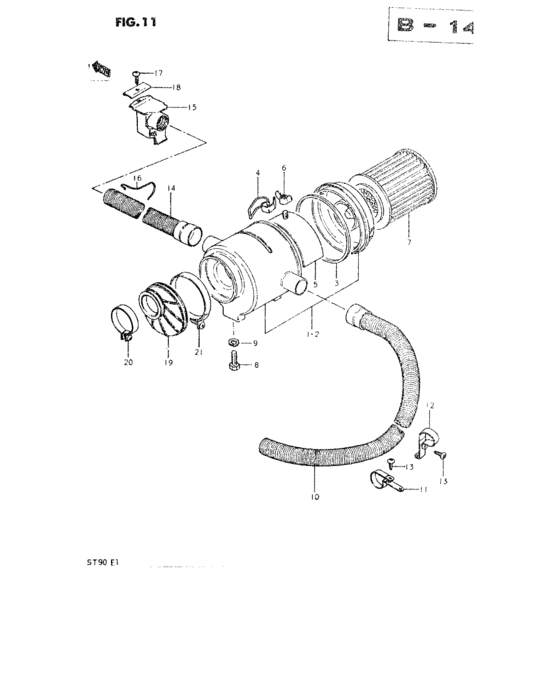

Air cleaner (AIR CLEANER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-79202-000
Case assy, air cleaner
TYPE 1,FROM 13701-79201 |
13701-79202-000 |
— | ||
|
1
|
1
13701-79230-000
Case assy, air cleaner
TYPE 2,TYPE 3 |
13701-79230-000 |
— | ||
|
1
|
1
13701-79260-000
Case assy, air cleaner
TYPE 3:Australia |
13701-79260-000 |
— | ||
|
2
|
2
13701-79221-000
Case assy, air cleaner
TYPE 1:Sinagpore, Venezuela NONWARM AIR TYPE |
13701-79221-000 |
— | ||
|
2
|
2
13701-79250-000
Case assy, air cleaner
TYPE 2,TYPE 3:Sinagpore,Venezuela NONWARM AIR,TYPE |
13701-79250-000 |
— | ||
|
3
|
3
13773-79200-000
Gasket
FROM 13773-79201 |
13773-79200-000 |
— | ||
| replacement | |||||
|
3
|
3
13772-77300-000 GASKET,AIR CLEANER CAPFROM 13773-79201 |
13772-77300-000 |
US $4.56 |
||
|
3
|
3
13772-79230-000
Gasket
TYPE 2,TYPE 3 |
13772-79230-000 |
— | ||
| replacement | |||||
|
3
|
3
13772-77300-000 GASKET,AIR CLEANER CAPTYPE 2,TYPE 3 |
13772-77300-000 |
US $4.56 |
||
|
4
|
4
13751-79201-000
Clamp
TYPE 1 |
13751-79201-000 |
— | ||
|
5
|
5
13740-79200-000
Valve, air
|
13740-79200-000 |
— | ||
|
6
|
6
09144-06003-000
Nut
|
09144-06003-000 |
— | ||
| replacement | |||||
|
6
|
6
08317-1206A-000 NUT |
08317-1206A-000 |
from US $1.06 |
||
|
7
|
7
13780-79201-000 ELEMENT,AIR CLEANER |
13780-79201-000 |
US $30.40 |
||
|
8
|
8
01107-08128-000
Bolt
|
01107-08128-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
9
|
9
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
13840-79220-000
Hose, warm air
FROM 13840-79201 |
13840-79220-000 |
— | ||
| replacement | |||||
|
10
|
10
13840-79141-000
HOSE,WARM AIR
FROM 13840-79201 |
13840-79141-000 |
— | ||
|
11
|
11
13896-79100-000
Clamp, hose & extension case
|
13896-79100-000 |
— | ||
| replacement | |||||
|
11
|
11
13896-72100-000 CLAMP |
13896-72100-000 |
US $2.24 |
||
|
12
|
12
13896-72100-000 CLAMP |
13896-72100-000 |
US $2.24 |
||
|
13
|
13
03141-05108-000
スクリュ
|
03141-05108-000 |
— | ||
| replacement | |||||
|
13
|
13
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
14
|
14
13870-79230-000
HOSE,COOL AIR
FROM 13870-79200 |
13870-79230-000 |
— | ||
|
15
|
15
13875-79100-000
INLET,COOL AIR HOSE
|
13875-79100-000 |
— | ||
|
16
|
16
13876-79100-000
HOLDER,AIR INLET
|
13876-79100-000 |
— | ||
|
17
|
17
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
18
|
18
13877-79100-000 SUPPORT,COOL AIR INLET |
13877-79100-000 |
US $1.32 |
||
|
19
|
19
13881-79100-000 BOOT,AIR CLEANER TO CARBURATOR |
13881-79100-000 |
US $6.23 |
||
|
20
|
20
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
21
|
21
09402-00303-000 CLAMP |
09402-00303-000 |
from US $4.99 |
||
