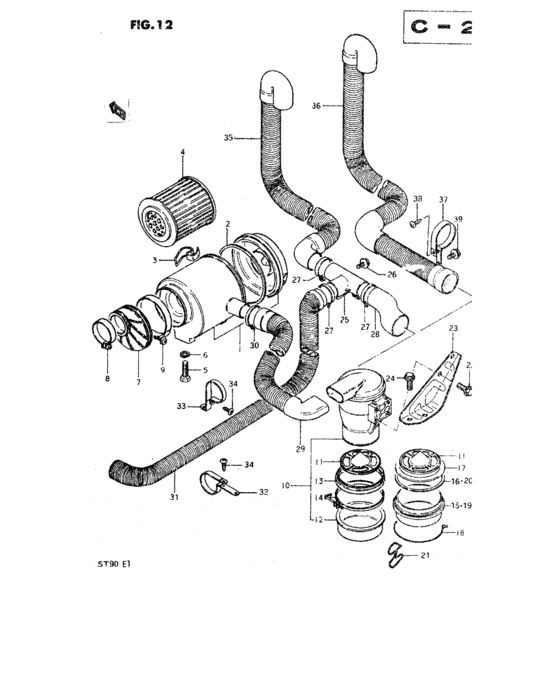

Air cleaner (ST90, K : CYCLONE TYPE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-79212-000
Case assy, air cleaner
TYPE 1,FROM 13701-79211 |
13701-79212-000 |
— | ||
|
1
|
1
13701-79240-000
Case assy, air cleaner
TYPE 2,TYPE 3 |
13701-79240-000 |
— | ||
| replacement | |||||
|
1
|
1
13701-852V0-000 CASE ASSY,AIR CLEANERTYPE 2,TYPE 3 |
13701-852V0-000 |
US $135.79 |
||
|
2
|
2
13773-79200-000
Gasket
TYPE 1,FROM 13773-79201 |
13773-79200-000 |
— | ||
| replacement | |||||
|
2
|
2
13772-77300-000 GASKET,AIR CLEANER CAPTYPE 1,FROM 13773-79201 |
13772-77300-000 |
US $4.56 |
||
|
2
|
2
13772-79230-000
Gasket
TYPE 2,TYPE 3 |
13772-79230-000 |
— | ||
| replacement | |||||
|
2
|
2
13772-77300-000 GASKET,AIR CLEANER CAPTYPE 2,TYPE 3 |
13772-77300-000 |
US $4.56 |
||
|
3
|
3
13751-79201-000
Clamp
TYPE 1 |
13751-79201-000 |
— | ||
|
4
|
4
13780-79201-000 ELEMENT,AIR CLEANER |
13780-79201-000 |
US $30.40 |
||
|
5
|
5
01107-08128-000
Bolt
|
01107-08128-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
6
|
6
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
7
|
7
13881-79100-000 BOOT,AIR CLEANER TO CARBURATOR |
13881-79100-000 |
US $6.23 |
||
|
8
|
8
09402-58306-000 CLAMPBand |
09402-58306-000 |
from US $1.98 |
||
|
9
|
9
09402-00303-000 CLAMP |
09402-00303-000 |
from US $4.99 |
||
|
10
|
10
13760-79203-000
SUB CLEANER ASSY,AIR
FROM 13760-79202 |
13760-79203-000 |
— | ||
|
11
|
11
13766-79201-000
Partition,sub cleaner case
FROM 13766-79200 |
13766-79201-000 |
— | ||
|
12
|
12
13767-79200-000
Cup, dust
CUP:CLAMP TYPE |
13767-79200-000 |
— | ||
|
13
|
13
13768-79200-000
Seal ring
CUP:CLAMP TYPE |
13768-79200-000 |
— | ||
|
14
|
14
13769-79200-000
Clamp
CUP:CLAMP TYPE |
13769-79200-000 |
— | ||
|
15
|
15
13767-79201-000
Cup, dust
CUP:CLAMP TYPE |
13767-79201-000 |
— | ||
| replacement | |||||
|
15
|
15
13767-79202-000 DUST CUP,SUB CLEANERCUP:CLAMP TYPE |
13767-79202-000 |
US $13.14 |
||
|
16
|
16
13769-79202-000
SEAL RING,DUST CUP
CUP:THREAD TYPE FROM 13769-79201 |
13769-79202-000 |
— | ||
|
17
|
17
13762-79201-000
Joint seat
CUP:THREAD TYPE TO 13769-79202 |
13762-79201-000 |
— | ||
| replacement | |||||
|
17
|
17
13769-79202-000
SEAL RING,DUST CUP
CUP:THREAD TYPE TO 13769-79202 |
13769-79202-000 |
— | ||
|
18
|
18
13763-79201-000
Ring
CUP:THREAD TYPE |
13763-79201-000 |
— | ||
|
19
|
19
13767-79202-000 DUST CUP,SUB CLEANERST90-109138~ |
13767-79202-000 |
US $13.14 |
||
|
20
|
20
13769-79202-000
SEAL RING,DUST CUP
ST90-109138~ |
13769-79202-000 |
— | ||
|
21
|
21
13763-79202-000 CLAMP,SUB CLEANERST90-109138~ |
13763-79202-000 |
US $4.75 |
||
|
22
|
22
01517-08128-000
Bolt
|
01517-08128-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-08127-000 BOLTBolt, clamp |
01550-08127-000 |
from US $4.49 |
||
|
23
|
23
13737-79201-000
BRACKET,SUB CLEANER
FROM 13737-79200 |
13737-79201-000 |
— | ||
|
24
|
24
01517-08128-000
Bolt
|
01517-08128-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-08127-000 BOLTBolt, clamp |
01550-08127-000 |
from US $4.49 |
||
|
25
|
25
13830-79200-000
Valve, warm air
|
13830-79200-000 |
— | ||
|
26
|
26
01517-06108-000
Bolt 6x10 hexagon
|
01517-06108-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
|
27
|
27
09402-46306-000 Clamp |
09402-46306-000 |
US $4.48 |
||
| replacement | |||||
|
27
|
27
09402-46208-000 CLAMP |
09402-46208-000 |
from US $1.96 |
||
|
28
|
28
13852-79201-000
Joint, sub cleaner inlet
FROM 13852-79200 |
13852-79201-000 |
— | ||
|
29
|
29
13860-79201-000
Hose, sub cleaner outlet
FROM 13860-79200 |
13860-79201-000 |
— | ||
| replacement | |||||
|
29
|
29
13860-79X50-000
HOSE,COOL AIR
FROM 13860-79200 |
13860-79X50-000 |
— | ||
|
30
|
30
09402-54303-000 CLAMP |
09402-54303-000 |
from US $6.26 |
||
|
31
|
31
13840-79230-000
Hose, warm air
FROM 13840-79210 |
13840-79230-000 |
— | ||
| replacement | |||||
|
31
|
31
13840-79X50-000
HOSE,WARM AIR
FROM 13840-79210 |
13840-79X50-000 |
— | ||
|
32
|
32
13896-79100-000
Clamp, hose & extension case
|
13896-79100-000 |
— | ||
| replacement | |||||
|
32
|
32
13896-72100-000 CLAMP |
13896-72100-000 |
US $2.24 |
||
|
33
|
33
13896-72100-000 CLAMP |
13896-72100-000 |
US $2.24 |
||
|
34
|
34
03141-05108-000
スクリュ
|
03141-05108-000 |
— | ||
| replacement | |||||
|
34
|
34
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
35
|
35
13870-79210-000
Hose, cool air
|
13870-79210-000 |
— | ||
|
36
|
36
13870-79220-000
Hose, cool air
,East-South Asia,Saudi Arabia NONWARM AIR TYPE |
13870-79220-000 |
— | ||
|
37
|
37
13896-79200-000
Clamp, cool air hose
,East-South Asia,Saudi Arabia NONWARM AIR TYPE |
13896-79200-000 |
— | ||
|
38
|
38
03141-05108-000
スクリュ
,East-South Asia,Saudi Arabia NONWARM AIR TYPE |
03141-05108-000 |
— | ||
| replacement | |||||
|
38
|
38
03142-0510B-000 SCREW,East-South Asia,Saudi Arabia NONWARM AIR TYPE |
03142-0510B-000 |
US $0.80 |
||
|
39
|
39
01517-06108-000
Bolt 6x10 hexagon
,East-South Asia,Saudi Arabia NONWARM AIR TYPE |
01517-06108-000 |
— | ||
| replacement | |||||
|
39
|
39
01550-06107-000 BOLT,East-South Asia,Saudi Arabia NONWARM AIR TYPE |
01550-06107-000 |
from US $0.80 |
||
