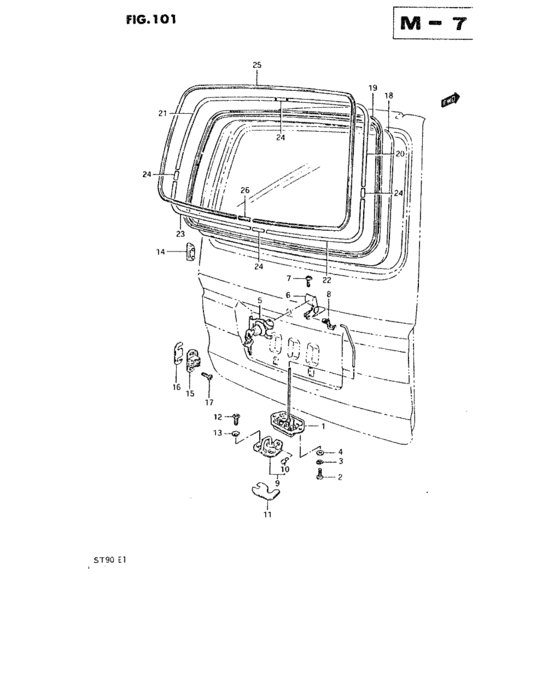

Back door lock - glass (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77310-79500-000 LOCK ASSY,BACK DR |
77310-79500-000 |
US $36.43 |
||
|
2
|
2
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
3
|
3
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
4
|
4
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
5
|
5
77400-78842-000
Key cylinder, lock
FROM 77400-78840 |
77400-78842-000 |
— | ||
| replacement | |||||
|
5
|
5
77400-78843-000 CYLINDER SET,BACK DRFROM 77400-78840 |
77400-78843-000 |
US $58.14 |
||
|
6
|
6
77680-78200-000
LINK,BACK DR LOCK
|
77680-78200-000 |
— | ||
|
7
|
7
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
8
|
8
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
9
|
9
78150-79501-000 STRIKER,BACK DOOR LOCKFROM 78150-79500 |
78150-79501-000 |
US $8.98 |
||
|
10
|
10
78153-78201-000 CUSHION,BACK DR LOCKFROM 78153-78200 |
78153-78201-000 |
US $1.10 |
||
|
11
|
11
78183-78200-000 SPACER |
78183-78200-000 |
US $2.58 |
||
|
12
|
12
02122-08188-000
Screw
|
02122-08188-000 |
— | ||
| replacement | |||||
|
12
|
12
09126-08004-XC0 SCREW(8X18) |
09126-08004-XC0 |
US $13.20 |
||
|
13
|
13
08323-31088-000
Washer,lock
|
08323-31088-000 |
— | ||
| replacement | |||||
|
13
|
13
09163-08002-000 WASHER,LOCKRondelle |
09163-08002-000 |
US $7 |
||
|
14
|
14
78271-79500-000 STOP,SIDE UPPER |
78271-79500-000 |
US $2.98 |
||
|
15
|
15
78261-79500-000
STOP,SIDE LOWER
|
78261-79500-000 |
— | ||
|
16
|
16
78282-79500-000
SPACER,SHUT STOPPER
|
78282-79500-000 |
— | ||
|
17
|
17
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
18
|
18
79671-79631-000 GLASS,BACK DR WINDOW |
79671-79631-000 |
US $173.33 |
||
|
18
|
18
79671-79621-000
Glass, window
,5,8,Germany,Australia,Holland,New Zealand,Austria,Israel,DEFORGER TYPE |
79671-79621-000 |
— | ||
|
19
|
19
79771-79510-000 WEATHERSTRIP,NON MOLDING |
79771-79510-000 |
US $47.10 |
||
|
19
|
19
79771-79500-000
Weatherstrip, window
TYPE D,~ST90-732660 |
79771-79500-000 |
— | ||
|
19
|
19
79771-79501-000
Weatherstrip, window
TYPE D,ST90-732661~ TYPE 3:Saudi Arabia,United Arab Emirates |
79771-79501-000 |
— | ||
|
20
|
20
86421-79500-000
Moulding, upper rh
|
86421-79500-000 |
— | ||
|
21
|
21
86422-79500-000
Moulding, upper lh
|
86422-79500-000 |
— | ||
|
22
|
22
86423-79500-000
Moulding, lower rh
TYPE D,~ST90-732660 |
86423-79500-000 |
— | ||
|
23
|
23
86424-79500-000
Moulding, lower lh
|
86424-79500-000 |
— | ||
|
24
|
24
86415-58000-000
Joint, moulding
|
86415-58000-000 |
— | ||
|
25
|
25
86421-79501-000
Moulding
TYPE D,ST90-732661~ TYPE 3:Saudi Arabia,United Arab Emirates |
86421-79501-000 |
— | ||
|
26
|
26
86491-79500-000
Joint
TYPE D,ST90-732661~ TYPE 3:Saudi Arabia,United Arab Emirates |
86491-79500-000 |
— | ||
