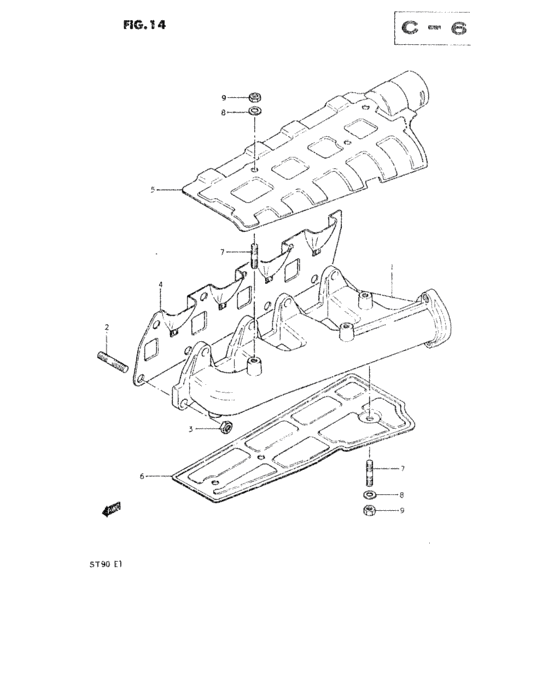

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-79202-000
Manifold,exhaust
FROM 14111-79201 |
14111-79202-000 |
— | ||
|
2
|
2
01411-08258-000
Stud bolt
|
01411-08258-000 |
— | ||
| replacement | |||||
|
2
|
2
01411-0825A-000 BOLT,STUD |
01411-0825A-000 |
US $1.12 |
||
|
3
|
3
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
3
|
3
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
4
|
4
14140-79200-000
Gasket
|
14140-79200-000 |
— | ||
| replacement | |||||
|
4
|
4
14140-85200-000 GASKET,EXH MANF |
14140-85200-000 |
US $20 |
||
|
5
|
5
14120-79201-000
Cover, upper
FROM 14120-79200 |
14120-79201-000 |
— | ||
| replacement | |||||
|
5
|
5
14120-79202-000
COVER,EXH MANIFOLD,UPPER
FROM 14120-79200 |
14120-79202-000 |
— | ||
|
5
|
5
14120-79210-000
Cover, upper
,East-South Asia,Thailand,Sinagpore,Saudi Arabia,Venezuela NONWARM AIR,TYPE |
14120-79210-000 |
— | ||
| replacement | |||||
|
5
|
5
14120-79202-000
COVER,EXH MANIFOLD,UPPER
,East-South Asia,Thailand,Sinagpore,Saudi Arabia,Venezuela NONWARM AIR,TYPE |
14120-79202-000 |
— | ||
|
6
|
6
14125-79200-000
Cover,exhaust manifold lower
|
14125-79200-000 |
— | ||
|
7
|
7
01411-06128-000
Stud bolt
|
01411-06128-000 |
— | ||
| replacement | |||||
|
7
|
7
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
8
|
8
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
9
|
9
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
