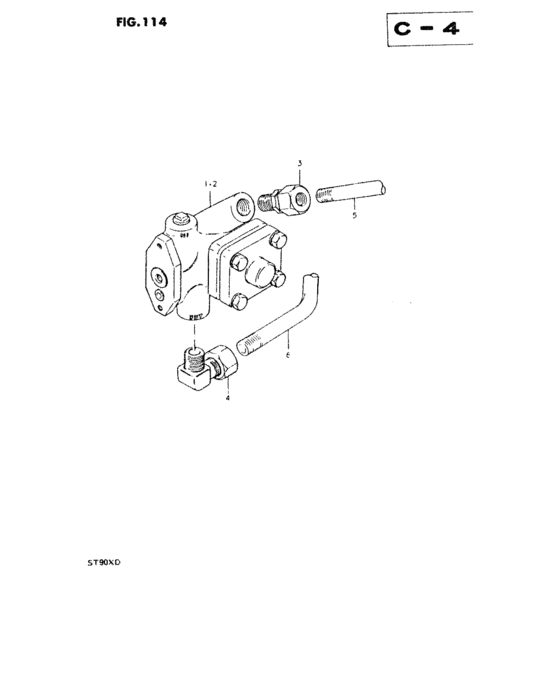

Oil pump (OIL PUMP) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97200-72900-000
Pump assy, oil
|
97200-72900-000 |
— | ||
|
2
|
2
97200-72810-000
Seal & spring set
|
97200-72810-000 |
— | ||
|
3
|
3
97242-72900-000
Connector, pipe in
|
97242-72900-000 |
— | ||
|
4
|
4
97243-72900-000
Connector, pipe out
|
97243-72900-000 |
— | ||
|
5
|
5
97251-72900-000
Pipe, inlet
USED WITH PIPE CONNECTOR |
97251-72900-000 |
— | ||
|
6
|
6
97261-72900-000
Pipe, outlet
USED WITH PIPE CONNECTOR |
97261-72900-000 |
— |
