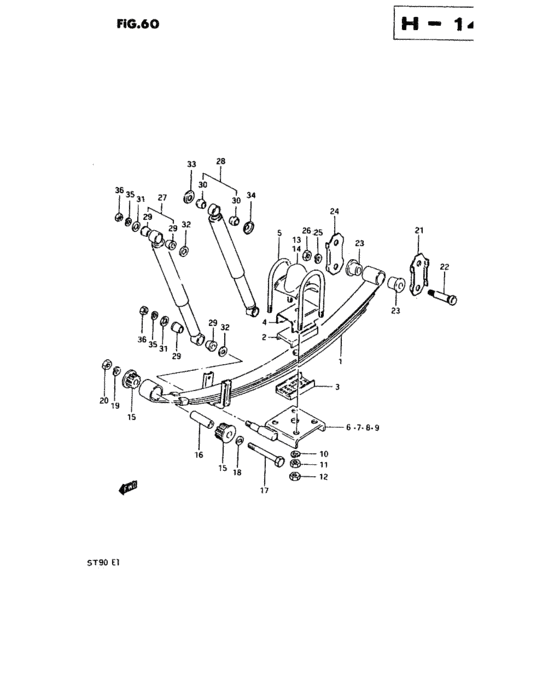

Rear suspension (REAR SUSPENSION) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-79111-000
Spring assy, rear
FROM 41310-79121 |
41310-79111-000 |
— | ||
|
1
|
1
41310-79231-000
Spring assy, rear
East-South Asia, FROM 41310-79230 |
41310-79231-000 |
— | ||
|
1
|
1
41310-79331-000
Spring assy, rear
China |
41310-79331-000 |
— | ||
| replacement | |||||
|
1
|
1
41310-79550-000
SPRING ASSY,REAR
China |
41310-79550-000 |
— | ||
|
2
|
2
41341-68720-000 PAD,UPPER |
41341-68720-000 |
US $7.36 |
||
|
3
|
3
41341-62020-000
PAD,LOWER
|
41341-62020-000 |
— | ||
|
4
|
4
41421-68200-000
Plate, spring clamp
|
41421-68200-000 |
— | ||
| replacement | |||||
|
4
|
4
41421-85200-000 PLATE,REAR SPRING CLAMP |
41421-85200-000 |
US $11.84 |
||
|
5
|
5
41411-61001-000
U bolt
|
41411-61001-000 |
— | ||
| replacement | |||||
|
5
|
5
41411-80201-000 U-BOLT,RR SPRING |
41411-80201-000 |
US $6.72 |
||
|
5
|
5
41411-69000-000
U bolt
East-South Asia |
41411-69000-000 |
— | ||
| replacement | |||||
|
5
|
5
41411-80410-000 U-BOLT,RR SPRINGEast-South Asia |
41411-80410-000 |
US $21.60 |
||
|
5
|
5
41411-68200-000 U-BOLT,RR SPRING |
41411-68200-000 |
US $7.36 |
||
|
6
|
6
41430-79000-000
Seat, spring rh
|
41430-79000-000 |
— | ||
| replacement | |||||
|
6
|
6
41430-79001-000 SEAT,REAR SPRING,R |
41430-79001-000 |
US $15.04 |
||
|
7
|
7
41430-79500-000
Seat, spring rh
|
41430-79500-000 |
— | ||
| replacement | |||||
|
7
|
7
41430-79501-000 SEAT,REAR SPRING,R |
41430-79501-000 |
US $19.20 |
||
|
7
|
7
41430-79000-000
Seat, spring rh
Thailand |
41430-79000-000 |
— | ||
| replacement | |||||
|
7
|
7
41430-79001-000 SEAT,REAR SPRING,RThailand |
41430-79001-000 |
US $15.04 |
||
|
8
|
8
41440-79000-000
Seat, spring lh
|
41440-79000-000 |
— | ||
| replacement | |||||
|
8
|
8
41440-79001-000 SEAT,REAR SPRING,L |
41440-79001-000 |
US $15.46 |
||
|
9
|
9
41440-79500-000
Seat, spring lh
|
41440-79500-000 |
— | ||
| replacement | |||||
|
9
|
9
41440-79501-000 SEAT,REAR SPRING,L |
41440-79501-000 |
US $19.20 |
||
|
9
|
9
41440-79000-000
Seat, spring lh
Thailand |
41440-79000-000 |
— | ||
| replacement | |||||
|
9
|
9
41440-79001-000 SEAT,REAR SPRING,LThailand |
41440-79001-000 |
US $15.46 |
||
|
10
|
10
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
11
|
11
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
12
|
12
08310-22108-000
Nut
|
08310-22108-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
13
|
13
42150-61040-000
Bumper, spring
|
42150-61040-000 |
— | ||
| replacement | |||||
|
13
|
13
42150-61020-000 BUMPER,RR SPRING |
42150-61020-000 |
US $20.80 |
||
|
14
|
14
42150-62040-000
BUMPER,SPRING
|
42150-62040-000 |
— | ||
|
14
|
14
42150-61040-000
Bumper, spring
Thailand |
42150-61040-000 |
— | ||
| replacement | |||||
|
14
|
14
42150-61020-000 BUMPER,RR SPRINGThailand |
42150-61020-000 |
US $20.80 |
||
|
15
|
15
41331-62020-000 BUSH |
41331-62020-000 |
from US $16.38 |
||
|
16
|
16
09180-12035-000 SPACER(12X16X64.5) |
09180-12035-000 |
US $2.24 |
||
|
17
|
17
09100-12025-000
ボルト,12X92
|
09100-12025-000 |
— | ||
| replacements | |||||
|
17
|
17
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
17
|
17
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
18
|
18
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.80 |
||
|
19
|
19
08321-31128-000
Lock washer
|
08321-31128-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01127-000 WASHER,LOCK |
08321-01127-000 |
from US $0.80 |
||
|
20
|
20
08310-12128-000
Nut
|
08310-12128-000 |
— | ||
| replacements | |||||
|
20
|
20
09140-12039-000 NUT |
09140-12039-000 |
from US $1.76 |
||
|
20
|
20
08310-00127-000 NUT |
08310-00127-000 |
from US $0.80 |
||
|
21
|
21
41462-79000-000
Plate, spring shackle outer
|
41462-79000-000 |
— | ||
| replacement | |||||
|
21
|
21
41462-77300-000 PLATE,OUTER |
41462-77300-000 |
US $12.80 |
||
|
22
|
22
41463-82000-000 PIN,SHACKLEFROM 41463-52000 |
41463-82000-000 |
US $6.72 |
||
|
23
|
23
09305-13002-000 BUSH |
09305-13002-000 |
from US $1.58 |
||
|
24
|
24
41461-79000-000
Plate, inner
FROM 41461-67000 |
41461-79000-000 |
— | ||
| replacement | |||||
|
24
|
24
41461-77300-000 PLATE,INNERFROM 41461-67000 |
41461-77300-000 |
US $12.80 |
||
|
25
|
25
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
25
|
25
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
26
|
26
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
26
|
26
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
27
|
27
41700-61010-000
Shock absorber assy, rear
|
41700-61010-000 |
— | ||
| replacement | |||||
|
27
|
27
41700-85011-000 ABSORBER ASSY,RR SHOCK |
41700-85011-000 |
US $95.76 |
||
|
28
|
28
41700-79510-000
ABSORBER ASSY,RR SHOCK
|
41700-79510-000 |
— | ||
| replacement | |||||
|
28
|
28
41700-79511-000 ABSORBER ASSY,RR SHOCKV |
41700-79511-000 |
US $220.40 |
||
|
29
|
29
41681-58010-000 BUSHING,LOWER |
41681-58010-000 |
US $4.80 |
||
|
30
|
30
41781-79510-000 BUSH,UPPER |
41781-79510-000 |
US $11.52 |
||
|
31
|
31
09160-08005-000
Washer (8.5*26*1.6)
|
09160-08005-000 |
— | ||
| replacement | |||||
|
31
|
31
09160-08134-000 WASHER(8.5X26X1.6)Washer, muffler support front |
09160-08134-000 |
from US $0.91 |
||
|
32
|
32
09160-12006-000
Washer
|
09160-12006-000 |
— | ||
| replacement | |||||
|
32
|
32
09160-12089-000 WASHER(12.5X26X1.6)Washer (12.5x26x1.6) |
09160-12089-000 |
from US $1.06 |
||
|
33
|
33
09164-08016-000
Washer, upper no.1
|
09164-08016-000 |
— | ||
|
33
|
33
09160-08001-000
Washer
F.NO.ST90-711689~ |
09160-08001-000 |
— | ||
| replacement | |||||
|
33
|
33
09160-08503-000 WASHER(8.5X30X2.3)Washer, muffler support F.NO.ST90-711689~ |
09160-08503-000 |
from US $1.60 |
||
|
34
|
34
09164-13003-000
Washer, upper no.2
|
09164-13003-000 |
— | ||
| replacement | |||||
|
34
|
34
09160-12001-000 WASHER(12.5X32X2.3)Washer, lh |
09160-12001-000 |
US $1.60 |
||
|
34
|
34
09160-12001-000 WASHER(12.5X32X2.3)Washer, lh F.NO.ST90-711689~ |
09160-12001-000 |
US $1.60 |
||
|
35
|
35
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
35
|
35
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
36
|
36
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
36
|
36
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
