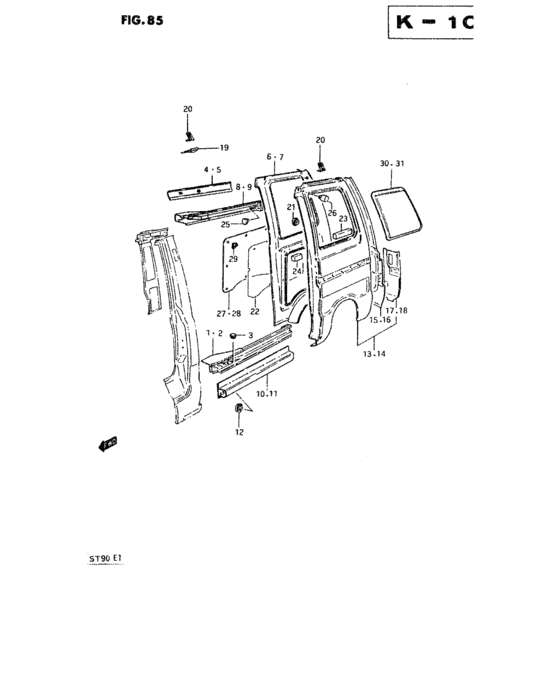

Body panel (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65630-79501-000 RAIL,LWR,RFROM 65630-79500 |
65630-79501-000 |
US $51.89 |
||
|
2
|
2
65640-79501-000 RAIL,LWR,LFROM 65640-79500 |
65640-79501-000 |
US $55.57 |
||
|
3
|
3
09250-07001-000 CAP(OD:10) |
09250-07001-000 |
US $11 |
||
|
4
|
4
67311-79500-000
RAIL,ROOF SIDE INNER RH
|
67311-79500-000 |
— | ||
|
5
|
5
67361-79500-000
RAIL,ROOF SIDE INNER LH
|
67361-79500-000 |
— | ||
|
6
|
6
67130-79500-000
Panel, quarter inner rh
|
67130-79500-000 |
— | ||
|
6
|
6
67130-79710-000
Panel, quarter inner rh
TYPE 1,TYPE 2:Switzerland,Germany,Austria TYPE,3:Switzerland,Germany,Holland,Austria,Israel |
67130-79710-000 |
— | ||
|
6
|
6
67130-79720-000
Panel, quarter inner rh
ST90VT-2/3:,,Cyprus,Nigeria,Hong Kong,United Arab Emirates,Argentina |
67130-79720-000 |
— | ||
|
6
|
6
67130-79790-000
Panel, quarter inner rh
TYPE 2:Australia |
67130-79790-000 |
— | ||
|
6
|
6
67130-79610-000
Panel, quarter inner rh
TYPE 3:Australia |
67130-79610-000 |
— | ||
|
7
|
7
67180-79501-000
Panel, quarter inner lh
TYPE 1,TYPE 2,FROM 67180-79500 |
67180-79501-000 |
— | ||
|
7
|
7
67180-79702-000
Panel, quarter inner lh
TYPE 3 |
67180-79702-000 |
— | ||
|
7
|
7
67180-79710-000
Panel, quarter inner lh
TYPE 1,TYPE 2:Switzerland,Germany,Austria |
67180-79710-000 |
— | ||
|
7
|
7
67180-79711-000
Panel, quarter inner lh
TYPE 3:Switzerland,Germany,Holland,Austria,Israel |
67180-79711-000 |
— | ||
|
7
|
7
67180-79720-000
Panel, quarter inner lh
ST90VT-2:,,,Cyprus,Nigeria,Hong Kong,United Arab Emirates,Argentina |
67180-79720-000 |
— | ||
|
7
|
7
67180-79721-000
Panel, quarter inner lh
ST90VT-3:,,,Cyprus,Nigeria,Hong Kong,United Arab Emirates,Argentina |
67180-79721-000 |
— | ||
|
7
|
7
67180-79790-000
Panel, quarter inner lh
TYPE 2:Australia |
67180-79790-000 |
— | ||
|
7
|
7
67180-79610-000
Panel, quarter inner lh
TYPE 3:Australia |
67180-79610-000 |
— | ||
|
7
|
7
67180-79791-000
Panel, quarter inner lh
TYPE 3:Australia ST90-757194~ |
67180-79791-000 |
— | ||
|
8
|
8
68320-79500-000 MEMBER,ROOF SIDE OTR,R |
68320-79500-000 |
US $51.52 |
||
|
9
|
9
68370-79500-000 MEMBER,ROOF SIDE OTR,L |
68370-79500-000 |
US $51.52 |
||
|
10
|
10
68400-79810-000
PANEL SET,SIDE SILL OUTER CTR
FROM 68420-79750 |
68400-79810-000 |
— | ||
|
10
|
10
68420-79771-000
Panel, outer center rh
Germany,Austria FROM 68420-79770 |
68420-79771-000 |
— | ||
|
11
|
11
68470-79750-000
PANEL,SIDE SILL OUTER CTR LH
|
68470-79750-000 |
— | ||
|
12
|
12
09250-20002-000
キャップ,OD:30
|
09250-20002-000 |
— | ||
| replacements | |||||
|
12
|
12
09250-20009-000
CAP(OD:30)
|
09250-20009-000 |
— | ||
|
12
|
12
09250-20034-000 Cap(Od:30) |
09250-20034-000 |
US $11.40 |
||
|
13
|
13
68910-79511-000
Panel, quarter outer rh
FROM 68910-79510 |
68910-79511-000 |
— | ||
|
13
|
13
68910-79512-000
Panel, quarter outer rh
ST90-747934~ ST90V114987~ |
68910-79512-000 |
— | ||
|
13
|
13
68910-79670-000
Panel, quarter outer rh
TYPE 2:Australia |
68910-79670-000 |
— | ||
|
13
|
13
68910-79671-000
Panel, quarter outer rh
TYPE 2,TYPE 3:Australia ST90-747934~ |
68910-79671-000 |
— | ||
|
14
|
14
68960-79510-000
Panel, quarter outer lh
|
68960-79510-000 |
— | ||
|
14
|
14
68960-79511-000
Panel, quarter outer lh
ST90-747934~ ST90V114987~ |
68960-79511-000 |
— | ||
|
14
|
14
68960-79520-000
Panel, quarter outer lh
TYPE 2: |
68960-79520-000 |
— | ||
|
14
|
14
68960-79521-000
Panel, quarter outer lh
TYPE 2,TYPE 3:,TYPE 3:New Zealand,ST90-747934~ |
68960-79521-000 |
— | ||
|
14
|
14
68960-79670-000
Panel, quarter outer lh
TYPE 2:Australia |
68960-79670-000 |
— | ||
|
14
|
14
68960-79671-000
Panel, quarter outer lh
TYPE 2,TYPE 3:Australia,ST90-747934~ |
68960-79671-000 |
— | ||
|
15
|
15
68811-79500-000 PANEL,BACK FRAME INSIDE RH |
68811-79500-000 |
US $108.19 |
||
|
16
|
16
68861-79520-000 PANEL,BACK FRAME INSIDE LH |
68861-79520-000 |
US $108.19 |
||
|
17
|
17
68951-79500-000
REINFORCE,RR QTR OTR RH
|
68951-79500-000 |
— | ||
|
18
|
18
68956-79500-000
REINFORCE,RR QTR OTR LH
|
68956-79500-000 |
— | ||
|
19
|
19
68326-79540-000
Reinforcement, rail
FOR HIGH ROOF |
68326-79540-000 |
— | ||
|
20
|
20
68327-79540-000
Bracket, reinforcement
FOR HIGH ROOF |
68327-79540-000 |
— | ||
|
20
|
20
67345-79570-000
Bracket, reinforcement front
FOR HIGH ROOF:Finland |
67345-79570-000 |
— | ||
|
21
|
21
09250-12001-000 CAP(OD:20)TYPE 1 |
09250-12001-000 |
US $16.20 |
||
|
22
|
22
69511-79500-000
Film, quarter dust seal
|
69511-79500-000 |
— | ||
| replacement | |||||
|
22
|
22
69511-79501-000
FILM,RR QUATER DUST SEAL
|
69511-79501-000 |
— | ||
|
23
|
23
69512-79500-000 PAD,RR QUATER DUST SEAL RR |
69512-79500-000 |
US $3.42 |
||
|
24
|
24
69513-79500-000
Pad, quarter front
|
69513-79500-000 |
— | ||
| replacement | |||||
|
24
|
24
69512-79500-000 PAD,RR QUATER DUST SEAL RR |
69512-79500-000 |
US $3.42 |
||
|
25
|
25
09321-06011-000 CUSHIONCushion |
09321-06011-000 |
from US $3.47 |
||
|
26
|
26
09321-05017-000 CUSHION |
09321-05017-000 |
US $11.40 |
||
|
27
|
27
79310-79501-42S
Trim, quarter inner rh
TYPE 1 |
79310-79501-42S |
— | ||
|
27
|
27
79310-79501-45U
Trim, quarter inner rh
TYPE 2 |
79310-79501-45U |
— | ||
|
27
|
27
79310-79501-51Z
Trim, quarter inner rh
TYPE 3 |
79310-79501-51Z |
— | ||
|
28
|
28
79320-79501-42S
Trim, quarter inner lh
TYPE 1 |
79320-79501-42S |
— | ||
|
28
|
28
79320-79501-45U
Trim, quarter inner lh
TYPE 2 |
79320-79501-45U |
— | ||
|
28
|
28
79320-79501-51Z
Trim, quarter inner lh
TYPE 3 |
79320-79501-51Z |
— | ||
|
29
|
29
09409-08303-000 CLIP |
09409-08303-000 |
US $1.82 |
||
|
30
|
30
68919-79730-000
Cover, quarter rh
,Chile,U2,U5,Sinagpore,TAustria,Costa Rica,Greece,UIsrael,Malta,Iceland |
68919-79730-000 |
— | ||
|
30
|
30
68919-79760-000
Cover, quarter rh
Thailand |
68919-79760-000 |
— | ||
|
31
|
31
68969-79730-000
Cover, quarter lh
,Chile,U2,U5,Sinagpore,TAustria,Costa Rica,Greece,UIsrael,Malta,Iceland |
68969-79730-000 |
— | ||
|
31
|
31
68969-79760-000
Cover, quarter lh
Thailand |
68969-79760-000 |
— | ||
