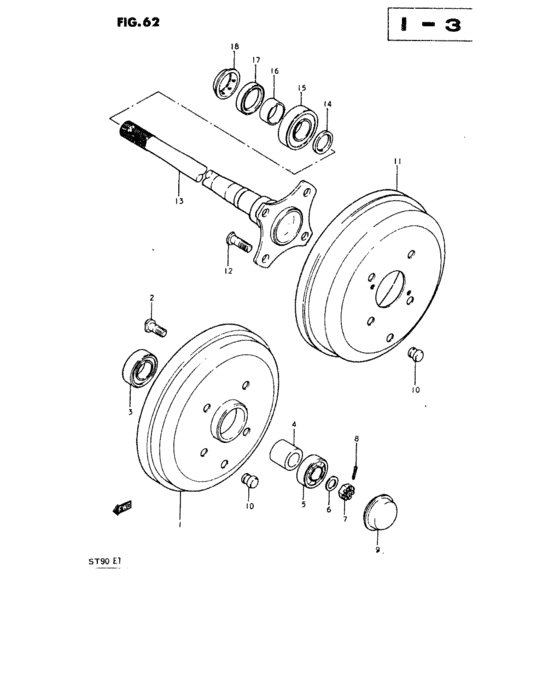

Brake drum - axle shaft (BRAKE DRUM - AXLE SHAFT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43411-79201-000 DRUM,FR BRAKEFROM 43411-79200 |
43411-79201-000 |
US $153.09 |
||
|
2
|
2
09119-12003-000 Bolt |
09119-12003-000 |
US $2.24 |
||
|
3
|
3
09262-25061-000 BEARING(25X52X15) |
09262-25061-000 |
from US $17.53 |
||
|
4
|
4
09180-21001-000 SPACER(20.4X32X30) |
09180-21001-000 |
US $42.30 |
||
|
5
|
5
09262-20069-000 BEARING(20X47X14) |
09262-20069-000 |
from US $11.52 |
||
|
6
|
6
08322-11168-000
16mm flat washer
|
08322-11168-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01167-000 WASHER |
08322-01167-000 |
from US $1.75 |
||
|
7
|
7
08314-41168-000 16 mm castle nut |
08314-41168-000 |
US $2.22 |
||
| replacement | |||||
|
7
|
7
08314-4016A-000 NUT |
08314-4016A-000 |
from US $1.44 |
||
|
8
|
8
04111-40208-000
コッタピン
|
04111-40208-000 |
— | ||
| replacement | |||||
|
8
|
8
04111-4020A-000 PIN |
04111-4020A-000 |
US $7.70 |
||
|
9
|
9
43241-79000-000
キャップ,スピンドル
|
43241-79000-000 |
— | ||
| replacement | |||||
|
9
|
9
43241-79002-000 CAP,SPINDLE |
43241-79002-000 |
US $5.92 |
||
|
10
|
10
09250-13001-000
Cap
|
09250-13001-000 |
— | ||
| replacement | |||||
|
10
|
10
09250-13004-000 PLUG(OD:17)Cap, remocon cable |
09250-13004-000 |
from US $2.61 |
||
|
11
|
11
43511-79201-000
DRUM,RR BRAKE
FROM 43511-79200 |
43511-79201-000 |
— | ||
|
12
|
12
09119-12005-000
BOLT
|
09119-12005-000 |
— | ||
|
13
|
13
44210-79201-000
Shaft, rear axle
FROM 44210-79200 |
44210-79201-000 |
— | ||
| replacements | |||||
|
13
|
13
09119-12012-000 BOLT(12X38)FROM 44210-79200 |
09119-12012-000 |
from US $0.99 |
||
|
13
|
13
44210-856V0-000 SHAFT ASSY,REAR AXLE,RFROM 44210-79200 |
44210-856V0-000 |
US $202.40 |
||
|
13
|
13
09119-12008-000
ボルト,12X38
FROM 44210-79200 |
09119-12008-000 |
— | ||
|
14
|
14
44251-79000-000
スペーサ,リヤホイールベアリング
|
44251-79000-000 |
— | ||
| replacement | |||||
|
14
|
14
44251-76G00-000 SPACER,RR WHEEL BEARING |
44251-76G00-000 |
US $2.88 |
||
|
15
|
15
09262-30030-000
Bearing (30x62x16)
|
09262-30030-000 |
— | ||
| replacement | |||||
|
15
|
15
09262-30103-000 BEARING(30X62X16) |
09262-30103-000 |
US $24.80 |
||
|
15
|
15
09262-30063-000
Bearing
TYPE 2:China |
09262-30063-000 |
— | ||
| replacement | |||||
|
15
|
15
09262-30082-000 BEARING(30X62X16)TYPE 2:China |
09262-30082-000 |
US $43.79 |
||
|
16
|
16
43485-67000-000 RING,RETAINER |
43485-67000-000 |
US $9.12 |
||
|
17
|
17
09283-42008-000
オイルシール
|
09283-42008-000 |
— | ||
| replacements | |||||
|
17
|
17
43491-70D01-000 SEAL,RR SHAFT OIL |
43491-70D01-000 |
from US $3.83 |
||
|
17
|
17
43491-70D00-000
Seal, rear shaft oil
|
43491-70D00-000 |
— | ||
|
18
|
18
43588-72000-000 PROTECTOR,OIL SEAL |
43588-72000-000 |
US $1.60 |
||
