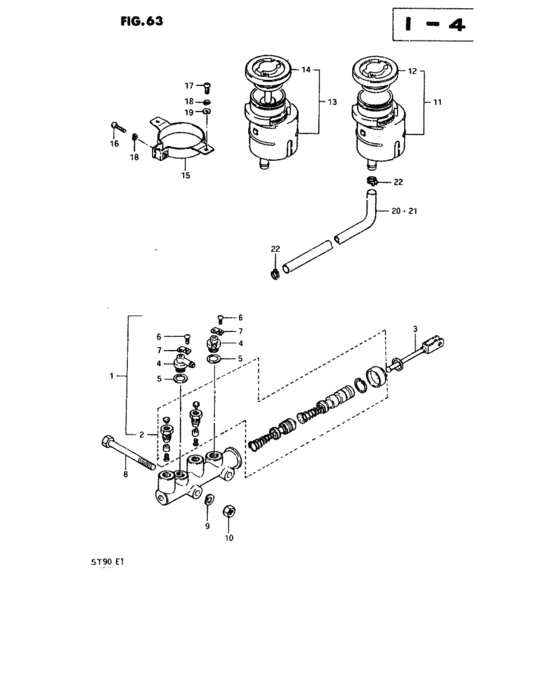

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-79011-000
Cylinder assy, master
RHD, FROM 51100-79010 |
51100-79011-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-79012-000 CYLINDER ASSY,BRAKE MASTERRHD, FROM 51100-79010 |
51100-79012-000 |
US $248.40 |
||
|
1
|
1
51100-79511-000
Cylinder assy, master
LHD, FROM 51100-79510 |
51100-79511-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-79512-000
Cylinder assy,brake master
LHD, FROM 51100-79510 |
51100-79512-000 |
— | ||
|
2
|
2
51100-79811-000
Piston set
FROM 51100-79810 |
51100-79811-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-7981V-000
PISTON SET,BRAKE MASTER
FROM 51100-79810 |
51100-7981V-000 |
— | ||
|
3
|
3
51180-66310-000
Rod, push
|
51180-66310-000 |
— | ||
| replacement | |||||
|
3
|
3
51180-66810-000
Rod.push
|
51180-66810-000 |
— | ||
|
4
|
4
51191-78010-000
コネクタ
|
51191-78010-000 |
— | ||
| replacement | |||||
|
4
|
4
51190-78010-000
CONNECTOR ASSY
|
51190-78010-000 |
— | ||
|
5
|
5
51192-78010-000
Oリング
|
51192-78010-000 |
— | ||
|
6
|
6
51193-78010-000
Screw
TYPE 1,TYPE 2 |
51193-78010-000 |
— | ||
|
6
|
6
51193-78011-000
ボルト
TYPE 2,TYPE 3 |
51193-78011-000 |
— | ||
|
7
|
7
51194-78010-000
Stopper
TYPE 1,TYPE 2 |
51194-78010-000 |
— | ||
|
7
|
7
51194-78011-000
Stopper
TYPE 2,TYPE 3 |
51194-78011-000 |
— | ||
|
8
|
8
09100-10018-000
Bolt
|
09100-10018-000 |
— | ||
| replacement | |||||
|
8
|
8
09100-10151-000 BOLT(10X107) |
09100-10151-000 |
from US $4.33 |
||
|
9
|
9
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
10
|
10
08310-12108-000
Nut, flywheel
|
08310-12108-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
11
|
11
51200-76010-000
Reservoir assy
TYPE 1,TYPE 2 |
51200-76010-000 |
— | ||
| replacement | |||||
|
11
|
11
51200-79010-000 RESERVOIR ASSY,MASTER CYLINDERTYPE 1,TYPE 2 |
51200-79010-000 |
US $86.11 |
||
|
11
|
11
51200-79210-000
Cap
TYPE 3 |
51200-79210-000 |
— | ||
| replacement | |||||
|
11
|
11
51200-79010-000 RESERVOIR ASSY,MASTER CYLINDERTYPE 3 |
51200-79010-000 |
US $86.11 |
||
|
12
|
12
51220-75110-000
Cap
TYPE 1,TYPE 2 |
51220-75110-000 |
— | ||
| replacement | |||||
|
12
|
12
51220-77M00-000 CAP,RESERVOIRTYPE 1,TYPE 2 |
51220-77M00-000 |
from US $17.89 |
||
|
12
|
12
51200-79210-000
Cap
TYPE 3 |
51200-79210-000 |
— | ||
| replacement | |||||
|
12
|
12
51200-79010-000 RESERVOIR ASSY,MASTER CYLINDERTYPE 3 |
51200-79010-000 |
US $86.11 |
||
|
13
|
13
51200-67010-000
Reservoir assy
TYPE 1:,,8,9,4,5 |
51200-67010-000 |
— | ||
|
13
|
13
51200-79110-000
Reservoir assy
TYPE 1:Germany,TYPE 2:,,5,8,9,Germany,4,5,Austria,Saudi Arabia,Channel Islands |
51200-79110-000 |
— | ||
| replacement | |||||
|
13
|
13
51200-79010-000 RESERVOIR ASSY,MASTER CYLINDERTYPE 1:Germany,TYPE 2:,,5,8,9,Germany,4,5,Austria,Saudi Arabia,Channel Islands |
51200-79010-000 |
US $86.11 |
||
|
13
|
13
51200-79010-000 RESERVOIR ASSY,MASTER CYLINDERTYPE 3:,,,5,9,2,4,5,Austria,Saudi Arabia,Channel Islands,Israel |
51200-79010-000 |
US $86.11 |
||
|
14
|
14
51220-70010-000
Cap,reservoir
TYPE 1:,,8,9,4,5 |
51220-70010-000 |
— | ||
|
14
|
14
51220-79010-000
Cap
TYPE 1:Germany,TYPE 2,TYPE 3:,,,5,8,9,Germany,4,5,Austria,Saudi Arabia,Channel Islands,Israel FROM 51220-80010 |
51220-79010-000 |
— | ||
| replacement | |||||
|
14
|
14
51220-82010-000 CAP,RESERVOIRTYPE 1:Germany,TYPE 2,TYPE 3:,,,5,8,9,Germany,4,5,Austria,Saudi Arabia,Channel Islands,Israel FROM 51220-80010 |
51220-82010-000 |
US $103.78 |
||
|
15
|
15
51250-79010-000
Bracket, reservoir
|
51250-79010-000 |
— | ||
| replacement | |||||
|
15
|
15
51250-79011-000
BRACKET,BRAKE RESERVOIR
|
51250-79011-000 |
— | ||
|
16
|
16
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
17
|
17
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
18
|
18
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
19
|
19
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
20
|
20
51241-67639-000
Hose, rear
RHD,L:1000->260 |
51241-67639-000 |
— | ||
| replacement | |||||
|
20
|
20
51241-85X50-000 HOSE,BRAKE RESERVOIRRHD,L:1000->260 |
51241-85X50-000 |
from US $20.61 |
||
|
21
|
21
51241-67639-000
Hose, rear
RHD,L:1000->215 |
51241-67639-000 |
— | ||
| replacement | |||||
|
21
|
21
51241-85X50-000 HOSE,BRAKE RESERVOIRRHD,L:1000->215 |
51241-85X50-000 |
from US $20.61 |
||
|
22
|
22
09400-16301-000
Reservoir hose
|
09400-16301-000 |
— | ||
| replacement | |||||
|
22
|
22
09400-16304-000 CLAMP |
09400-16304-000 |
from US $4.96 |
||
